Uninterruptible Power Supply UPS Module for Jetson Nano and Raspberry Pi 5/4B/3B+/3B/2B,Supports Charging and Power Output at The Same Time, 3S & 5V 5A Output,Adapting Various Interfaces via Cables

Uninterruptible Power Supply (UPS) Module, Supports charging And Power output at the same time, 3S & 5V 5A Output. Suitable for Type-C power port devices

Features
1. UPS Module 3S--3S indicates that powered by 3x 18650 Li batteries in series, the output range is about 9V~ 12.6V

2. Adapting various interfaces via cables, easy to integrate into mobile robots or industrial control equipment.

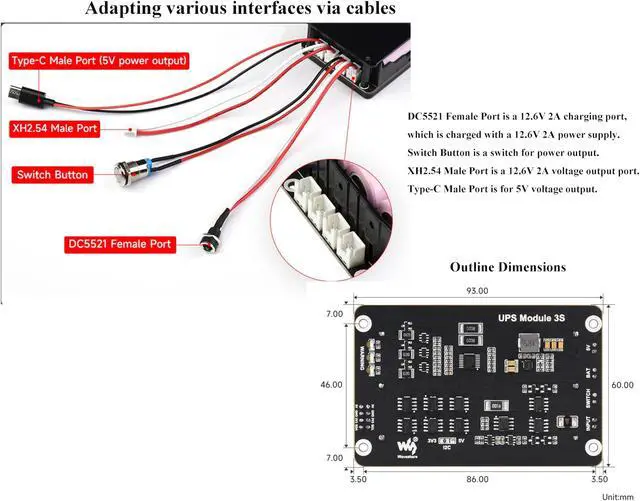

---Interface Definition: DC5521 Female Port is a 12.6V 2A charging port, which is charged with a 12.6V 2A power supply. Switch Button is a switch for power output. XH 2.54 Male Port is a 12.6V 2A voltage output port. Type-C Male Port is for 5V voltage output.

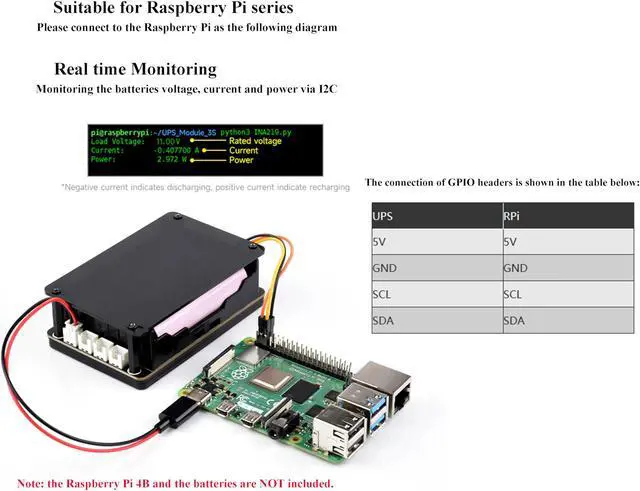

3. I2C bus communication, monitoring the batteries voltage, current, power in real time

4.

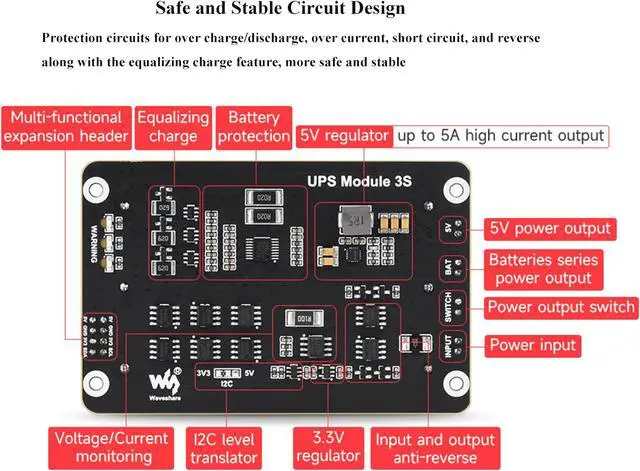

Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

5. Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi and Jetson Nano

6. Batteries warning indicators, easy to check if the battery is connected correctly

7. Suitable for Type-C power port devices

Comes with Online Development Resources and Manual: bit. ly/3WgEsD8

Specifications

Output voltage: Batteries series voltage; 5V 5A; 3.3V 300mA
Control interface: I2C
Battery support: 3 x 18650 Li batteries (in series, NOT included)
Charger: 12.6V 2A
Dimensions: 60 x 93mm
Mounting hole size: 3.0 mm

Package Content
UPS Module 3S x1
XH 2.54 male self lock button switch ~15cm x1
XH 2.54 male to DC5521 female cable ~15cm x1
XH 2.54 dual connector cable ~15cm x1
XH 2.54 male to Type-C cable ~20cm x1
Acrylic protection panels x1
Screws pack x1
12.6V 2A Battery Charger x1

Note: The 18650 batteries are NOT included
