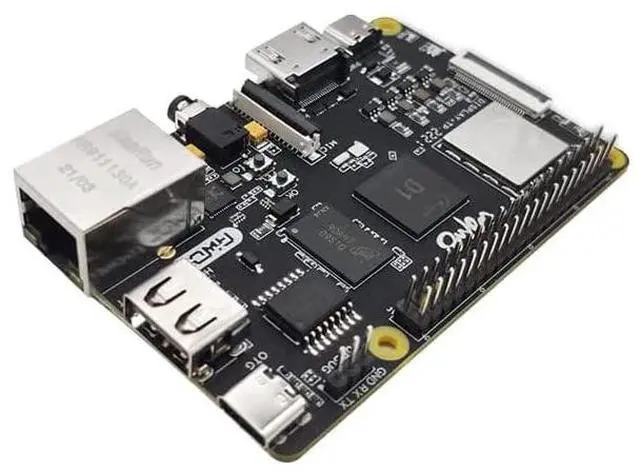

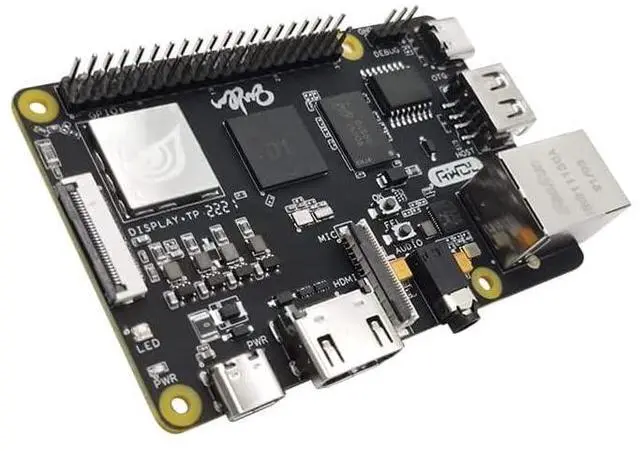

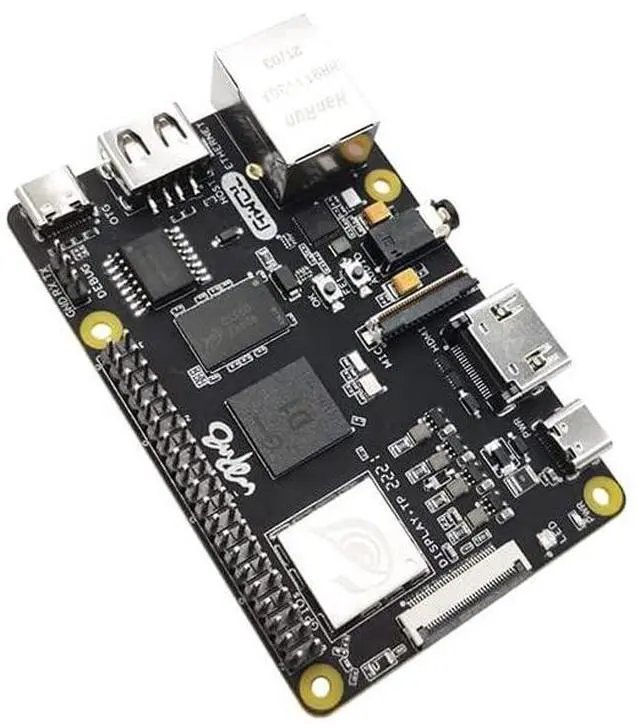

Sipeed Nezha Allwinner D1 64bit RISC-V Linux Single Board Computer with 1GB DDR3 RAM 256MB Nand Flash onboard Wifi4 Bluetooth Gigabit Ethernet for AIoT Edge Computing Support Linux Debian OS
- [RV64 Linux Platform] Nezha Single Board Computer is based on Allwinner's newest RISC-V chip , [email protected] ( T-HeadXuanTie c906 core ) .with 1GByte DDR3 and 256MByte onboard Nand Flasht. lt has basic resources and environments that allow you to research RV64 features on itself , just like a desktop PC.
- [Allwinner D1 SoC] Allwinner D1 has XuanTie C906 64-bit RISC-V processor @ 1.0 GHz with HiFi4 DSP, G2D 2D graphics accelerators, Memory 1GB DDR3 memory Storage 256MB SPI NAND flash, MicroSD card slot.
- [Encoding] JPEG/MJPEG up to 1080p60,Audio 3.5mm audio jack, digital audio output via HDMI, a connector for Microphone Array board,Connectivity Gigabit Ethernet via RTL8211F PHY, 2.4GHz WiFi 4 & Bluetooth module via XR829 module.
- [lOT-friendly] Nezha Single Board Computer is not designed for heavy computation applications but designed forthe RV64 opensource community and loT applicationlt. lt is easily run withouta heatsink, and the temperature is below 50c, chip pow
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

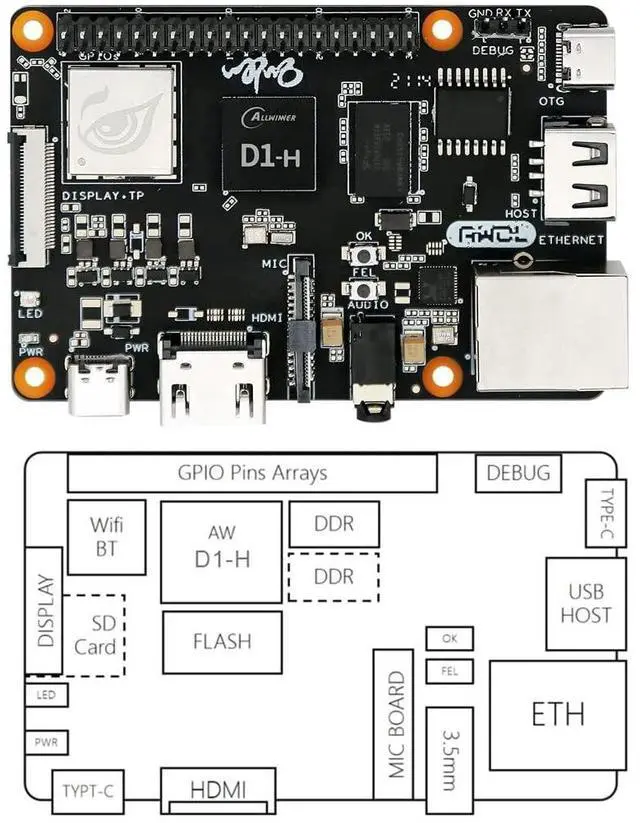

-Specification-
Soc: Allwinner D1 single-core Xuantie c906 64-bit RISC-V processor@ 1.0 GHz with HiFi4 DSP, G2D 2D graphics accelerators.
Memory: 1GB DDR3 memory
Storage: 256MB SPI NAND flash, MicroSD card slot. Video
Decoding: H. 265 up to 1080p60 or 4Kp30, H. 264 up to1080p60 or 4Kp24, MPEG-1/2/4, jpeg, VC1 up to 1080p60
Audio: 35mm audio jack, digital audio output via HDMl, a connector for Microphone Array board
Connectivity: Gigabit Ethernet via RTL8211F PHY, 2.4GH z WIFi 4 & Bluetooth module via xR829 module
USB: 1X USB 2.0 host port, 1x USB Type-c OTG portport
Expansion: 40-pin GPIO connector
Debugging: 4-pin UART header, USB ADB debugging supported
Misc: Power LED tri-color user LED, OK & FEL buttons
Power Supply: 5V / 2A via one of the two USB-C ports
Dimensions: 85x56 mm ( 6-layer PCB )
-OS Support-
Tina, Debian, Linux, RTOS
-Package Content-

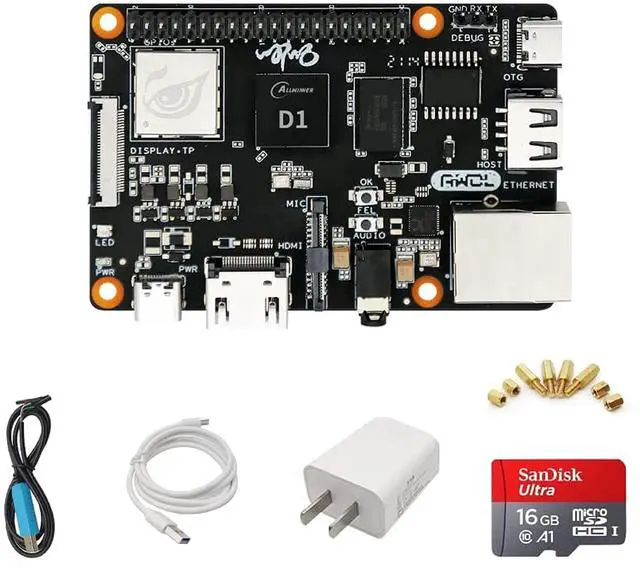

1 x Sipeed Nezha 1GB Single Board Computer Standard Kit
Soc: Allwinner D1 single-core Xuantie c906 64-bit RISC-V processor@ 1.0 GHz with HiFi4 DSP, G2D 2D graphics accelerators.
Memory: 1GB DDR3 memory
Storage: 256MB SPI NAND flash, MicroSD card slot. Video
Decoding: H. 265 up to 1080p60 or 4Kp30, H. 264 up to1080p60 or 4Kp24, MPEG-1/2/4, jpeg, VC1 up to 1080p60
Audio: 35mm audio jack, digital audio output via HDMl, a connector for Microphone Array board
Connectivity: Gigabit Ethernet via RTL8211F PHY, 2.4GH z WIFi 4 & Bluetooth module via xR829 module
USB: 1X USB 2.0 host port, 1x USB Type-c OTG portport
Expansion: 40-pin GPIO connector
Debugging: 4-pin UART header, USB ADB debugging supported
Misc: Power LED tri-color user LED, OK & FEL buttons
Power Supply: 5V / 2A via one of the two USB-C ports
Dimensions: 85x56 mm ( 6-layer PCB )
-OS Support-
Tina, Debian, Linux, RTOS
-Package Content-
1 x Sipeed Nezha 1GB Single Board Computer Standard Kit
