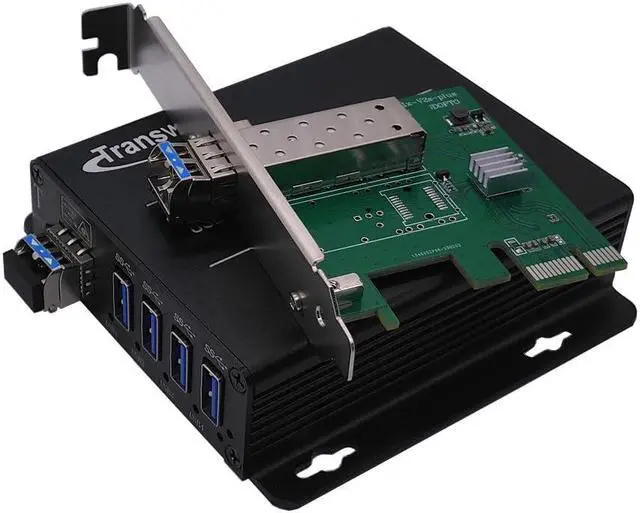

PCI-E Card to 4 Ports USB 3.0 hub Over Single-Mode Fiber Optic Extender to 250 Meters, Backwards Compatible USB 2.0/1.1, for 1 U & 2 U Bracket

Description:
BY-PUSB-327DF includes a transmitter(client-side) and a PCI-E extension card receiver(host-side) which is installed in the PCIe sloExts in the host computer. it can extend the Super Speed USB 3.0 to a remote location over 250 Meters 2 cores Single-mode fiber cable.

Note1) Backwards compatible with USB 2.0 and USB 1.1 for 4 ports the transmitter at the client side.

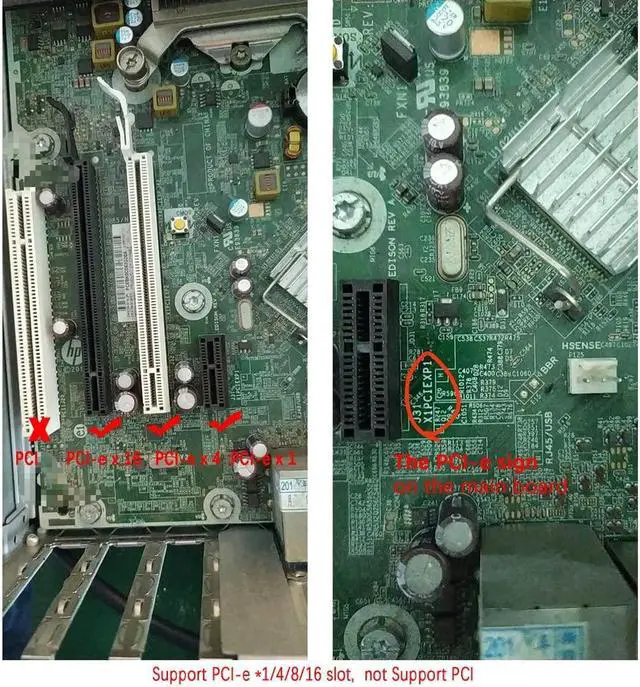

2) The card must be inserted into PCI-e slot, not PCI slot.
3) 4 Ports of the hub share the 5 Gbps Capacity of 1 port at the local side.

Supported Typical USB 3.0 Devices:
1). USB 3.0
Camera:
Intel RealSense, XiQ USB 3.0 Camera, Kinect Xbox, Kinect Azure, EMCCM camera etc
2).
Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing, Telescope
3).
Aduio Devices:
Stereo D to A Converter
4).
Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive
5. ) USB 2.0 / 1.1 Devices like Keyboard and Mouse & Audio devices

Notice: DOES NOT support 3D Scanner, FDTI Devices, but our ASIN (B0C2YZM41S) can Support them
. DOES NOT support to connect another USB hub again because its is a USB hub.

Optical:
Optical Connector: 2 x LC
Wavelength: 1310nm
Support Fiber types: 9/125m (SMF)
Physical:
Size (L× W ×H):
1).

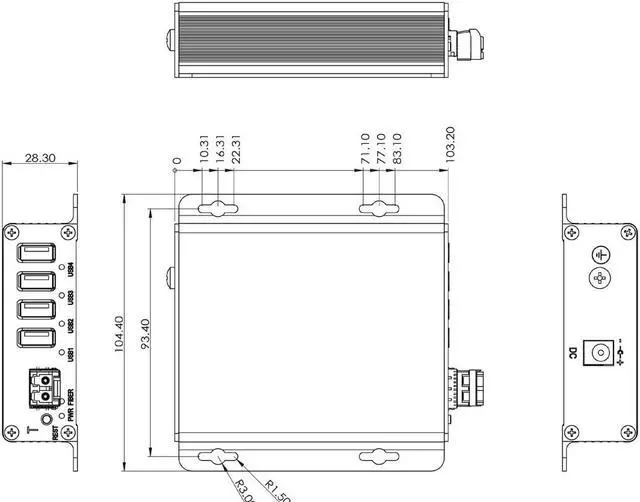

Client unit: 104 mm x104 mm x28 mm

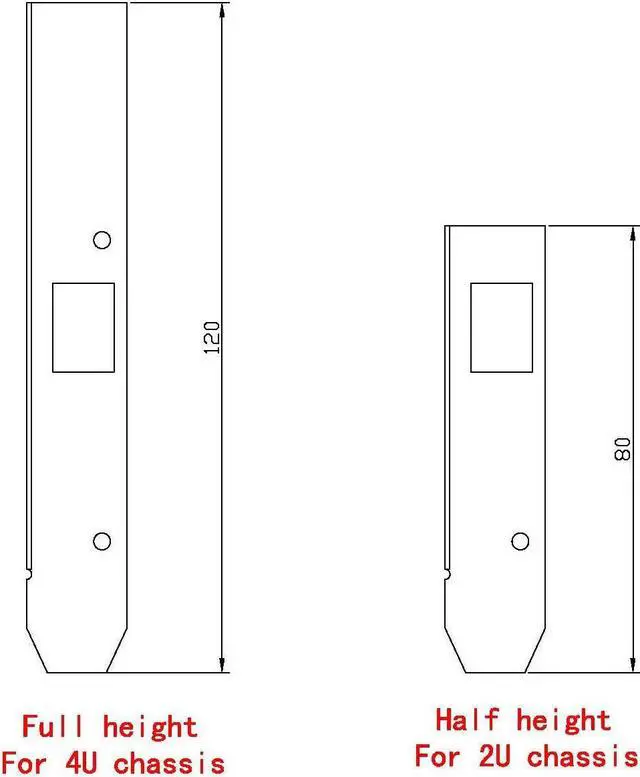

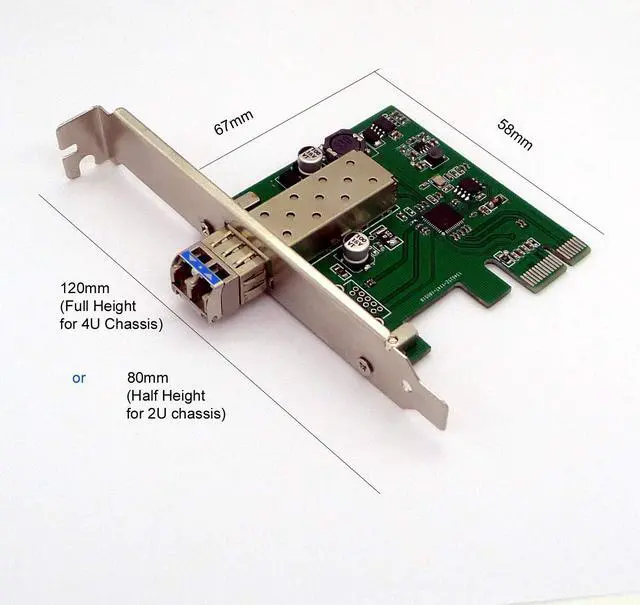

2) The Card at Host: 120 mm (for 4U chassis) x 67 mm x 58 mm; 80 mm (for 2U chassis) x 67 mm x 58 mm
Case material: Aluminum
Color: Black
N. W.: 0.5K g
Power:
Sender Voltage: 5~12V DC
Sender power consumption: <5W
Receiver power consumption: <2W
Operation temperature: 0-70
Storage temperature: -40° to +85° C
Humidity: 0-95% (non-condensing)

Each USB port of Tx supports Data rates:
Super-Speed ( 5.0 Gbps)
High-Speed (480 Mbps)
Full-Speed (12 Mbps)
Low-Speed ( 1.5 Mbps)

Package:
1. 1 x transmitter with SFP module (client side)
2. 1 x PCI-E card receiver with SFP module (host side)
3. 1 x Power Supply Adapter
4. 1 x Manual
