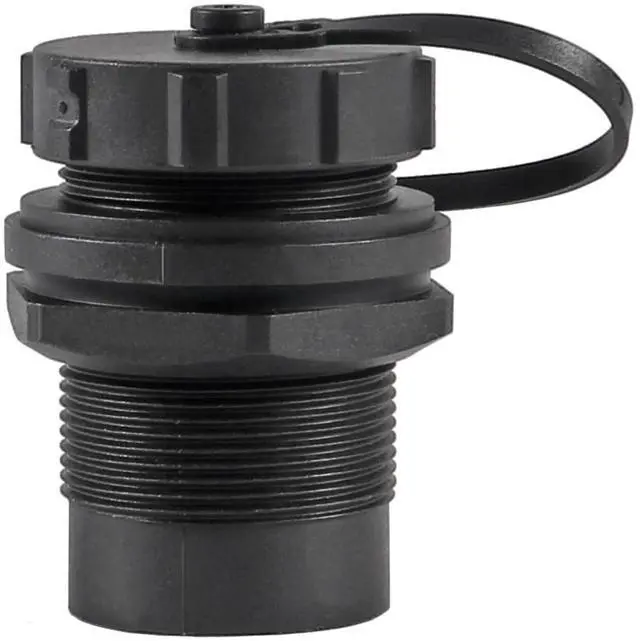

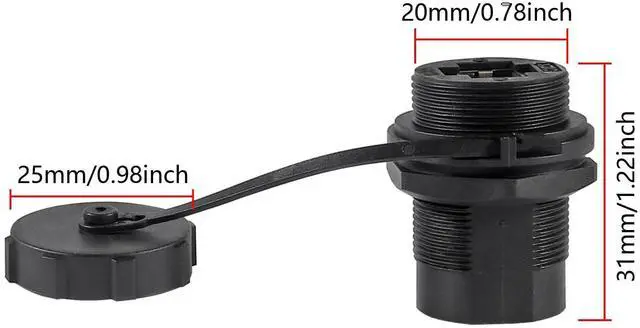

10Pcs RJ45 Connector CAT6 8P8C Panel Mount Shielded Ethernet LAN Bulkhead Ethernet Cable Coupler Extension Adapter Double Head Female to Female with Waterproof/Dust Cap
- Shielded RJ45 panel mount CAT6 extender is an extend the ethernet connection by connecting two short network cables together.solve the problem that the network cable is not long enough.
- RJ45 female to female field installable coupler, no need installation tools, just plug the standard crystal head directly for quick installation.
- Waterproof Cat6 RJ45 coupler provides feed-through Cat5/5e/6 ethernet connectivity for data in home or industrial environments. Completely shielding interference, making the transmission faster and more stable
- The additional cover for the RJ45 panel mount bulkhead includes a waterproof/dustproof cover to provide you with a waterproof Ethernet pass-through coupler connection.
- RJ45-8P shielded panel mount coupler compatible with 86 panels, wall boxes, ground plug cabinet panels and other equipment in a small size and easy to install.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Pins: 8 cores
Rated current: 1.5A
Rated voltage: 125V AC
Withstand voltage: AC 1000V/ 0.5 mA
Contact resistance: <10m
Insulation resistance: >100m
Working temperature: -25~105
Storage temperature: -25~85
Atmospheric pressure: (86~106)KPa
Relative humidity: 90%
Connection method: plug-in type
Connection method: threaded plug-in type quick link
No need to install screws to install, just tighten the rear nut.

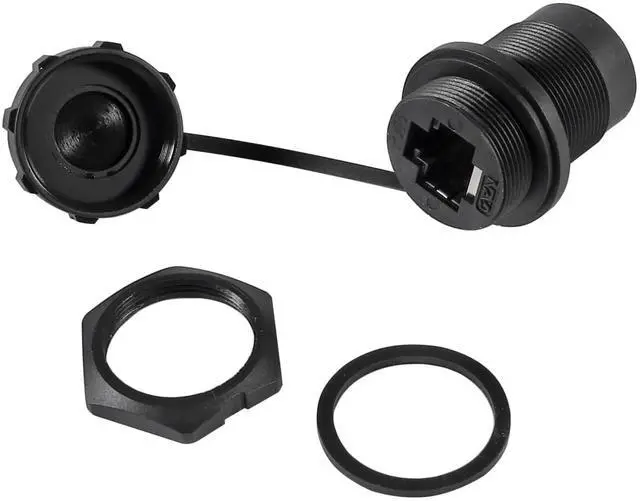

Step 1: Disassemble the connector and prepare the network cable
Step 2: Put the female seat into the mounting hole and put on the waterproof cover rubber ring
Step 3: Put on the nut and tighten
Step 4: Insert the crystal head in the equipment chassis and the network cable outside the chassis. The installation is complete
Package include:
10 x waterproof RJ45-8P connector
Rated current: 1.5A
Rated voltage: 125V AC
Withstand voltage: AC 1000V/ 0.5 mA
Contact resistance: <10m
Insulation resistance: >100m
Working temperature: -25~105
Storage temperature: -25~85
Atmospheric pressure: (86~106)KPa
Relative humidity: 90%
Connection method: plug-in type
Connection method: threaded plug-in type quick link
No need to install screws to install, just tighten the rear nut.
Step 1: Disassemble the connector and prepare the network cable
Step 2: Put the female seat into the mounting hole and put on the waterproof cover rubber ring
Step 3: Put on the nut and tighten
Step 4: Insert the crystal head in the equipment chassis and the network cable outside the chassis. The installation is complete
Package include:
10 x waterproof RJ45-8P connector
