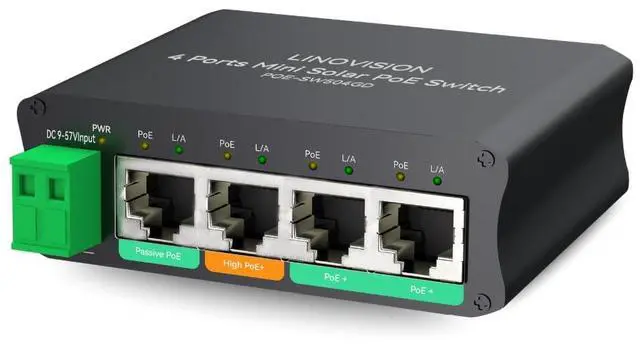

LINOVISION 4 Ports Mini Solar PoE Switch Works Directly with DC12V or DC24V Batteries, Provide 2 PoE+ Ports, 1 High PoE+ Port for Big PTZ Cameras and 1 Passive 24V PoE Port for Bridge

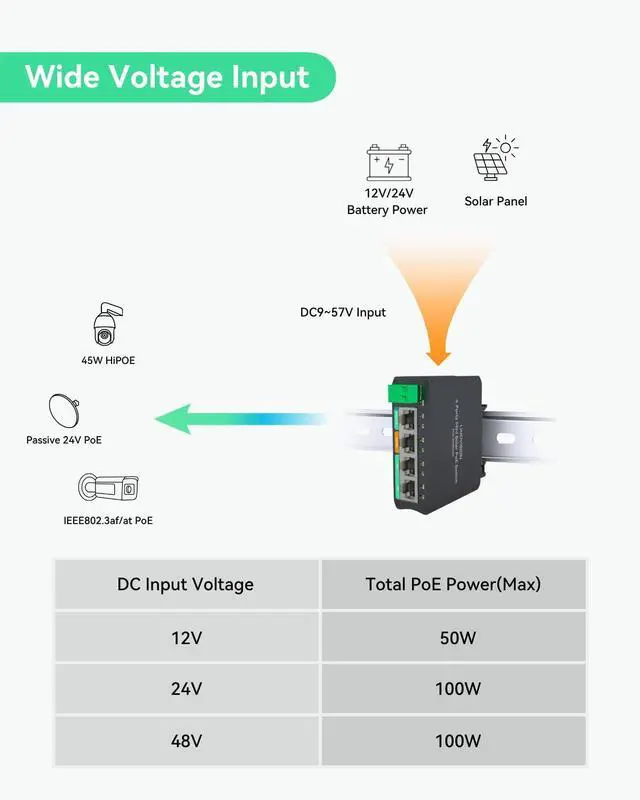

- DC 957V Input: Featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras.

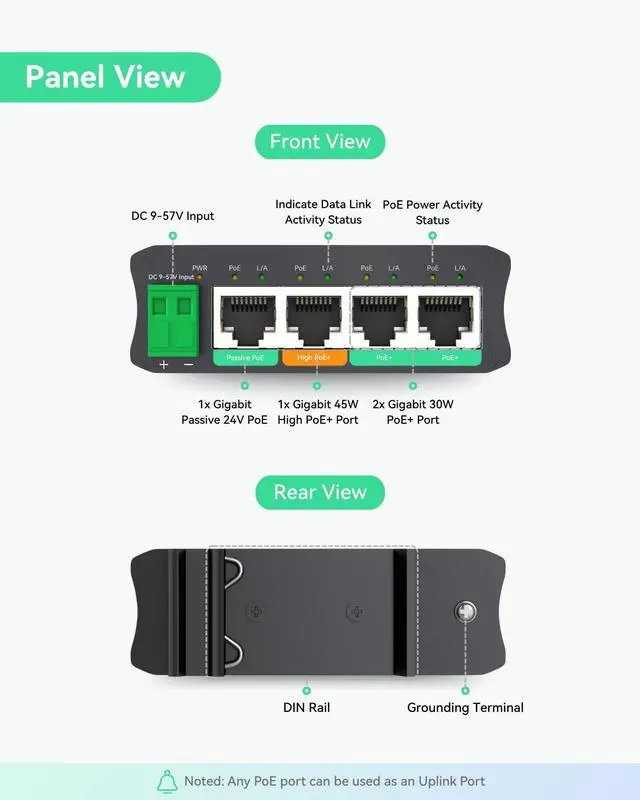

- 4 Ports Full Gigabit PoE: 2x IEEE802.3af/at PoE, 1x 45W High PoE and 1x Passive 24V PoE output (Any PoE port can be used as an Uplink Port)

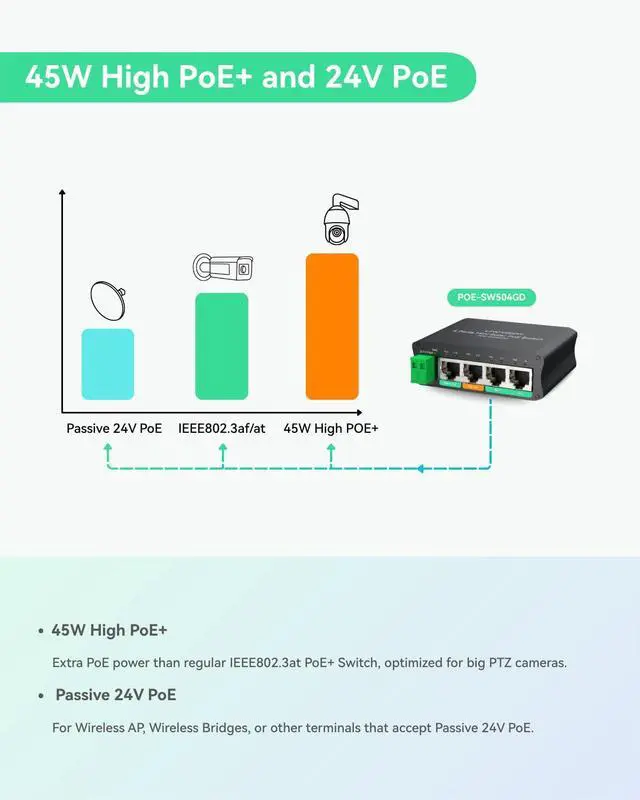

- 45W HIGH PoE+ OUTPUT: Optimized for big PTZ cameras, such as multiple-lens PTZ cameras, high speed dome cameras, cameras with big white LED light.
- PASSIVE 24V PoE Output: For Bridges, or other terminals that accept Passive 24V PoE. No extra PoE injector needed.
- TOTAL PoE BUDGET: 100W (DC24V/48V input) or 50W (DC12V input) or 40W(DC9V input).

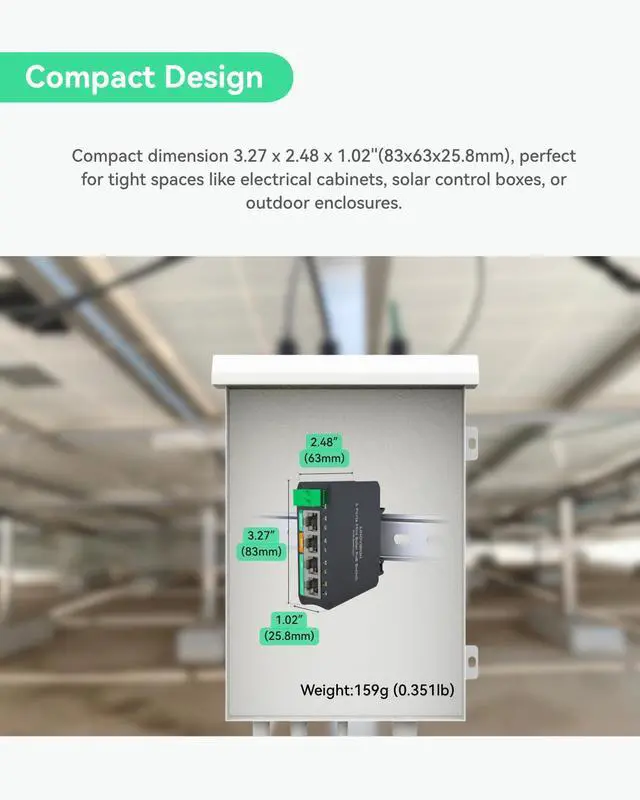

- COMPACT DESIGN: Full metal design, Din Rail Mount, compact dimension 3.27 x 2.48 x 1.02''(83x63x25.8mm), perfect for tight spaces like electrical cabinets, solar control boxes, or outdoor enclosures.
- APPLICATIONS: Ideal for Solar System, RV System, Farm Security or remote surveillance applications.
+
+
