Taidacent 5 Pcs RJ45 to RS485 Converter - RJ45 Terminal Adapter - Crystal Head to Terminal (A Connects to PIN1, B Connects to PIN2)
- Pin: Pin4 and Pin5 or Pin6 and Pin7
- Product model: RJ45 to 485 terminal
- Purpose: The physical interface of 485 is RJ45
- Working temperature: -40~ 85
- RJ45 to RS485 Converter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

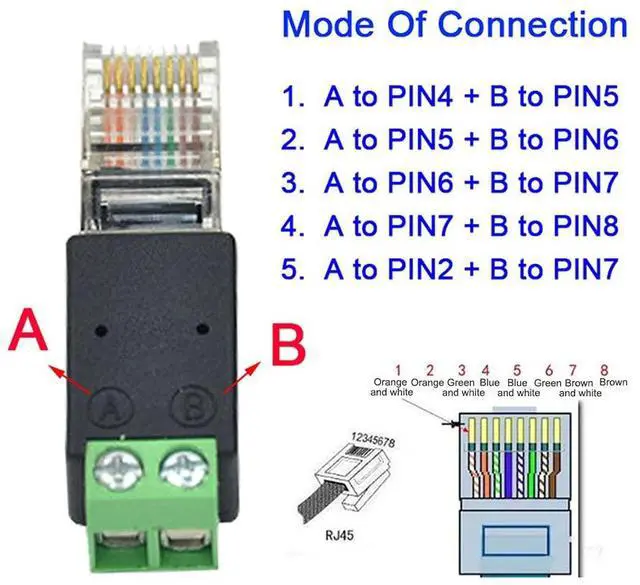

Pin6 (485A) and Pin7 (485B)
RJ45 pins Pin6 (485A) and Pin7 (485B), terminal A is connected to 485A and terminal B is connected to 485B. As long as these two pins are connected, the reverse connection is also possible, such as Pin6 (485B) and Pin7 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Pin4 (485A) and Pin5 (485B)
RJ45 pins Pin4 (485A) and Pin5 (485B), terminal A is connected to 485A terminal B is connected to 485B, as long as these two pins are connected, the reverse connection is also possible, such as Pin4 (485B) and Pin5 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Parameter
Pin: Pin4 and Pin5 or Pin6 and Pin7
Product model: RJ45 to 485 terminal
Quality: Industrial grade
Purpose: The physical interface of 485 is RJ45
Working temperature: -40~ 85
Product name: RJ45 to 485 terminal Pin4 and Pin5 or Pin6 and Pin7 other pins need to be customized
RJ45 pins Pin6 (485A) and Pin7 (485B), terminal A is connected to 485A and terminal B is connected to 485B. As long as these two pins are connected, the reverse connection is also possible, such as Pin6 (485B) and Pin7 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Pin4 (485A) and Pin5 (485B)
RJ45 pins Pin4 (485A) and Pin5 (485B), terminal A is connected to 485A terminal B is connected to 485B, as long as these two pins are connected, the reverse connection is also possible, such as Pin4 (485B) and Pin5 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Parameter
Pin: Pin4 and Pin5 or Pin6 and Pin7
Product model: RJ45 to 485 terminal
Quality: Industrial grade
Purpose: The physical interface of 485 is RJ45
Working temperature: -40~ 85
Product name: RJ45 to 485 terminal Pin4 and Pin5 or Pin6 and Pin7 other pins need to be customized
