PENGLIN CAT6 Panel Mount Bulkhead Coupler(10 Pack), Waterproof RJ45 Shielded Pass Through Connector Female to Female, 1000Mbps High Speed Ethernet Cable Extender
- RJ45 Female to Female CouplerProvides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.

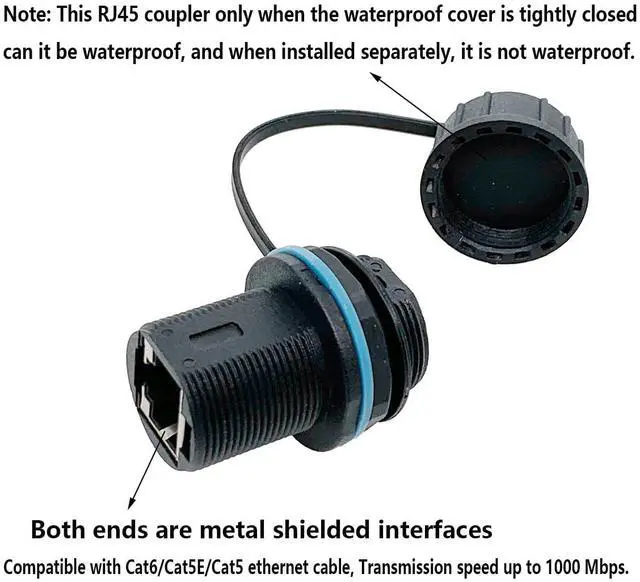

- IP68 WATERPROOFThe panel mount RJ45 connector has a waterproof cover,rubber ring provides superior water resistance and sealing.
- HIGH QUALITYNylon PA66 shell, highly flame retardant. Gold-plated interface, anti-oxidation, more durable.

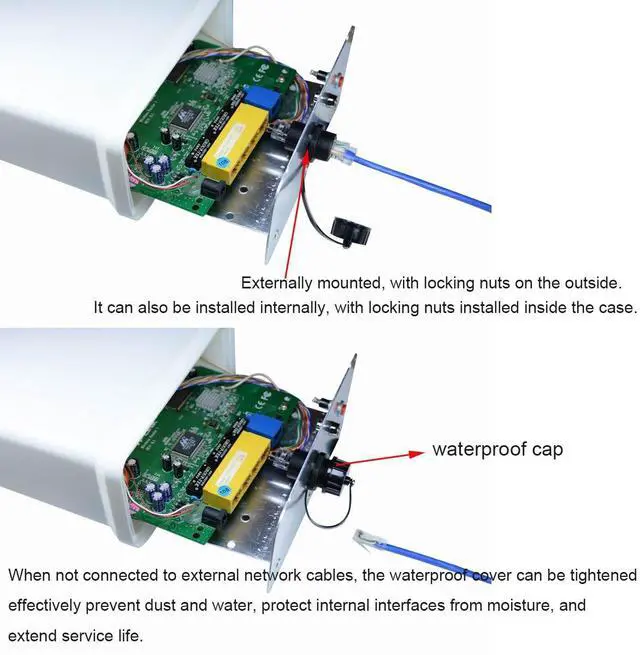

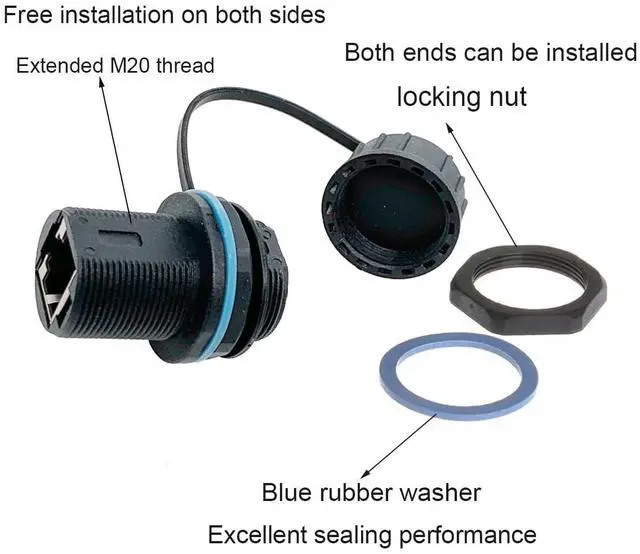

- EASY INSTALLTIONThis is a Female/Female Industrial Panel Mount Coupler,It adopts a threaded connection design, and both ends can be connected to RJ45 cables. No soldering and no need to damage or interrupt the original wire, no signal degradation,plug and play.
- MULTI-PURPOSEWaterproof RJ45 connectors can be used in environments where they need to go through walls and ensure waterproofing, great for industrial outdoor environments where you need to connect to a network. Such as printers, PCs, routers, computer servers, switches, network media players, games, POE devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical
core number: 8P8C
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: Plug-in + thread pressure lock
Mounting position size: Imperial 13/16-28
Housing wall thickness: Thread
type: >2mm, through hole type: 0.3 ~12mm
connector transmission classification: CAT5/5e/6
Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network
Electrical performance:
Current Rating: 1.5AMPS
Rated voltage: 125VAC, 75VDC
Insulation resistance: >500M
Compressive strength: AC1000V 50HZ or 60HZ 1 minute
Contact resistance: <10M
Material:
Housing: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter copper wire
Gold thickness of contact pin: 6u inch
Waterproof rubber ring: Silicone
Package Included:

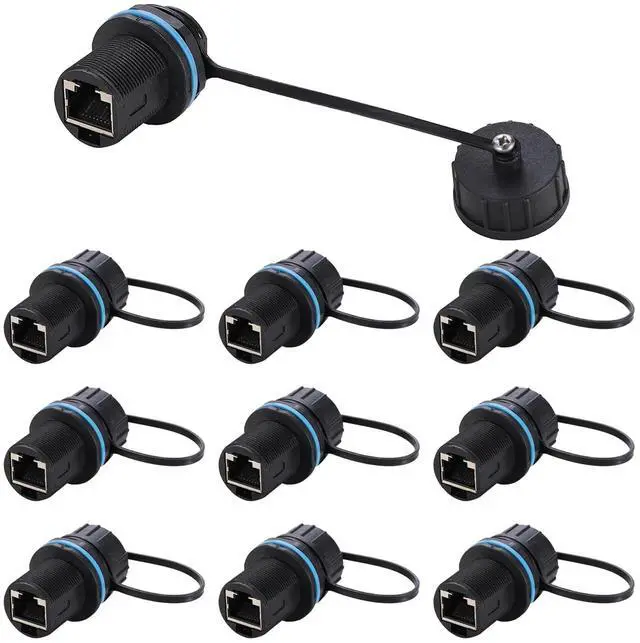

10 x RJ45 feed-thru coupler
10 waterproof cap
Specifications
:core number: 8P8C
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: Plug-in + thread pressure lock
Mounting position size: Imperial 13/16-28
Housing wall thickness: Thread
type: >2mm, through hole type: 0.3 ~12mm
connector transmission classification: CAT5/5e/6
Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network
Electrical performance:
Current Rating: 1.5AMPS
Rated voltage: 125VAC, 75VDC
Insulation resistance: >500M
Compressive strength: AC1000V 50HZ or 60HZ 1 minute
Contact resistance: <10M
Material:
Housing: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter copper wire
Gold thickness of contact pin: 6u inch
Waterproof rubber ring: Silicone
Package Included:
10 x RJ45 feed-thru coupler
10 waterproof cap
