Yjntoximc Mini Industrial 2 Ports Gigabit 90W PoE++ Switch with DC4857V Dual Redundant Power Input, 48V PoE Switch with 2 Single Mode Dual SC 20km, IEEE802.3af/at/bt @189W

Overview:

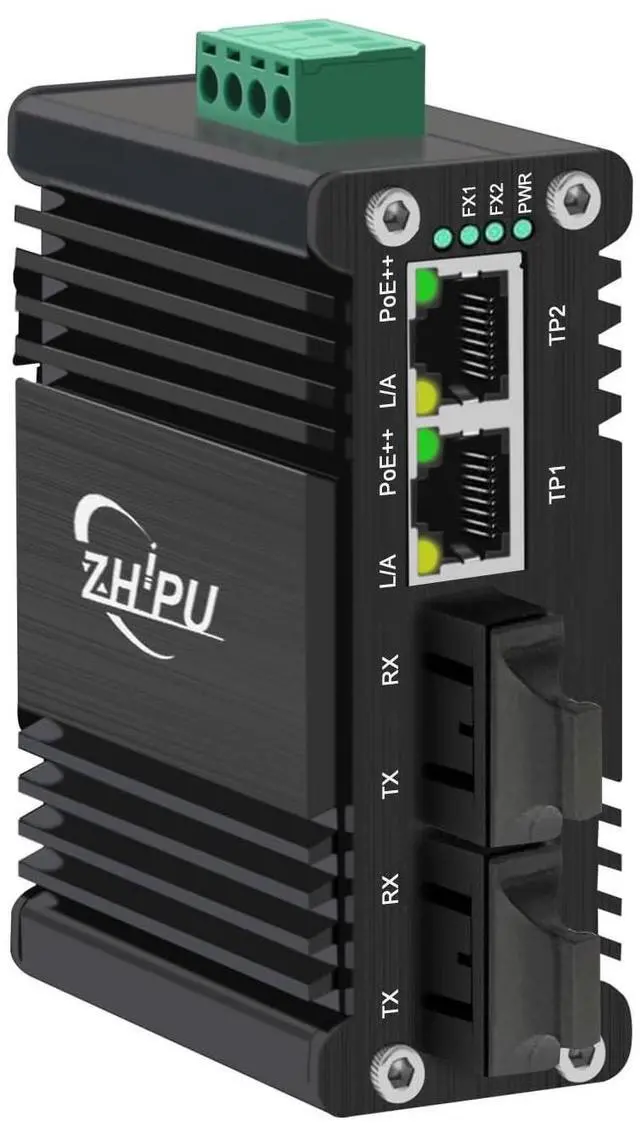

The Mini Industrial Gigabit PoE++ Switch has 2 SC ports and 2 RJ45 ports support IEEE 802.3 af/at/bt PoE standard. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40°F and 176°F, making it ideal for outdoor installations or industrial applications.

Features:

1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

2. 2 SC Ports, Dual SC fiber, 1000Mbps, 20-km, Single-mode


3. Supports IEEE 802.3 af/at PoE+ (30W) or IEEE 802.3 bt PoE++ (90W)


4. Supports Link Fault Pass Through


5. Supports Full/Half-duplex, Auto-negotiation

6. IEEE 802.3 az Energy Efficient Ethernet (EEE)

7. 48~57VDC Terminal Block Power Input


8. Supports DIN-Rail Installation


9. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature


10. Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Specification:

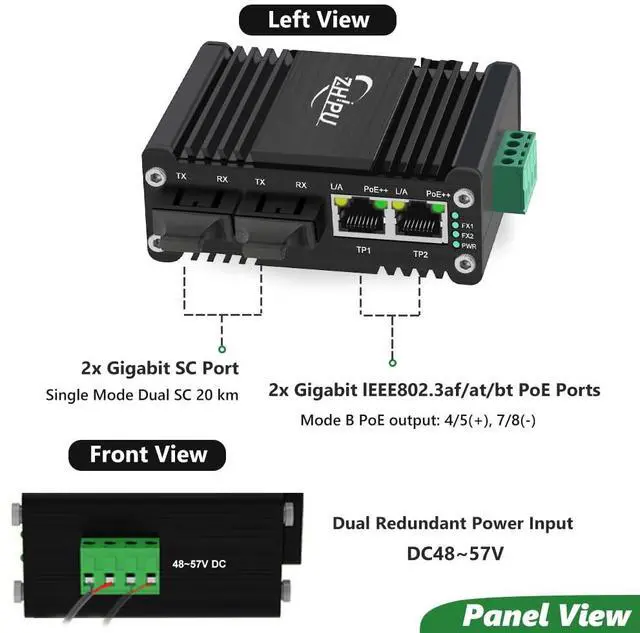

1) Connector: 2 x RJ45

2) Optical Port: 2 x SC

3) SC modules: Dual SC fiber, 1000Mbps, 20-km, Single-mode

4) PoE Standard: IEEE 802.3 af/at/bt

5) Packet Buffer Memory: 1 Mbit

6) Max Packet Length: 9K bytes

7) MAC Address Table: 2K

8) Forward & Filtering Rate: 14, 880pps (10Mbps), 148, 800pps (100Mbps), 1, 488, 000pps (1000Mbps)

9) Input Power: 48~57VDC, 4-pin terminal block

10) Power Consumption: 189W Max.

11) Power PIN Assignment: 1, 2, 4, 5(+); 3, 6, 7, 8(-) (Alternative B Mode)

12) Certification: CE, FCC

13) Mounting Options: DIN-Rail

14) Casing: Aluminum Case

15) Operating Temperature: -40°C to 75°C (-40°F to 167°F)

16) Storage Temperature: -40°C to 85°C (-40°F to 185°F)

17) Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch

18) Weight: 0.25 kg

Packages:

1* 2-port 90w PoE RJ45 + 2-port SC Ethernet switch

1* 4-pin terminal block

1* User Manual
