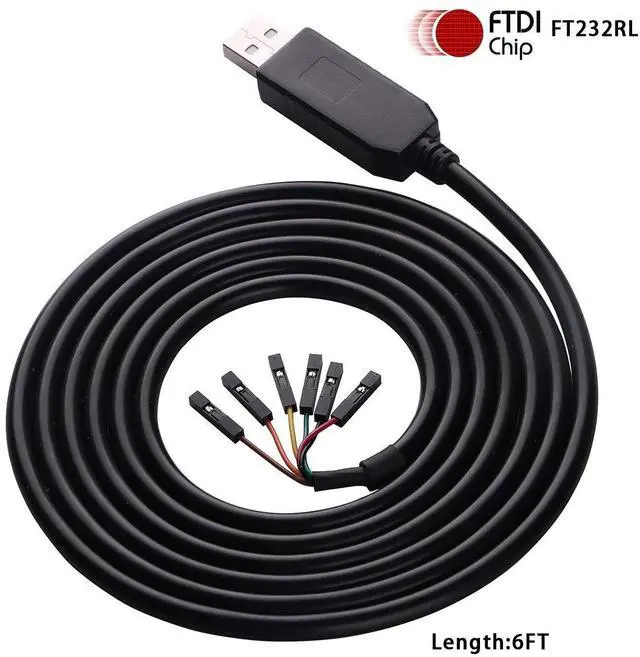

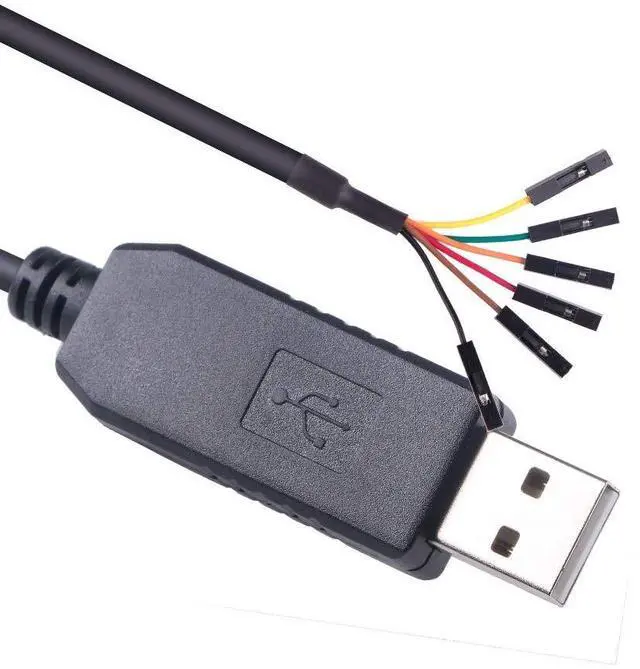

Green-utech USB to TTL 5v 6 Pin 1'' Terminal Block Female Socket Header UART Serial Cable FT232RL Chip for Windows,Linux and Mac OS (5V, 6Pin 2.54mm Single Dupont Header)
- USB to TTL 5v UART Serial Cable Connect Directly to a Microcontroller UART or I/O Pins.
- The Internal EEPROM Descriptors can be Programmed in circuit, over USB without any additional voltage requirement. It can be programmed using the FT232RL utility software called FT_PROG, which can be downloaded from FT232RL Utilities on the FT232RL website (www.ftdichip.com).
- The FT232RL has a low 15mA operating supply current and a very low USB suspend current of approximately 70A. (Note that during suspend mode, the current drawn by application should not exceed 2.5mA to remain USB compliant)
- Compatible with windows, linux and Mac OS. Windows8 / 10, Mac OS does not need to install the driver manually When your laptop/PC is connected to the Internet , plug and play.The drivers listed above are all available to download for free from FT232RL website (http://www.ftdichip.com/Documents/InstallGuides.htm).
- The TTL cables are capable of operating over an extended temperature range of -40 to
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Typical Applications USB to Serial TTL Level Converter Upgrading Legacy Peripherals to USB Interface Microcontroller UART or I/O to USB Interface FPGA / PLD to USB Interface to FT232RL VDRIVE2 or VMUSIC2 modules. Replace MAX232 type level shifters allowing for direct connection of products to PC via USB USB Instrumentation PC interface USB Industrial Control2. Driver Support Windows 10 32, 64-bit Windows 8/ 8.1 32, 64-bit Windows 7 32, 64-bit Windows Vista and Vista 64-bit Windows XP and XP 64-bit Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008 and server 2012 R2 Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Mac OS 8/9, OS-X Linux 2.4 and greater
