NDR-120-24 24V 5A 120W Single Output Switching Power Supply for Industrial Equipment/LED Lighting/Telecom
- Wide Input Voltage Range (100-240VAC) - Supports global voltage standards with 100-240VAC input, ideal for international industrial deployments and commercial applications requiring stable 24VDC/5A output.
- High Efficiency & Low Power Consumption - Achieves up to 89% efficiency with <0.5W no-load power loss, reducing energy costs and meeting eco-friendly requirements for continuous operation systems.
- Comprehensive Protection Features - Built-in over-voltage, short-circuit, overload, and over-temperature protections (auto-recovery design) ensure safe operation for sensitive electronics like PLCs and LED arrays.
- Robust Thermal Management - Aluminum casing with fanless design and -30C to +70C operating temperature range enables reliable performance in harsh environments while minimizing noise pollution.
- Certified Safety & Versatile Mounting - UL/cUL/TUV/CE/FCC certified with IP20 protection. Supports DIN rail and panel mounting options for flexible integration into control cabi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The NDR-120-24 is a high-performance 120W switching power supply designed for demanding industrial and commercial applications. Delivering 24VDC at 5A with 1% voltage stability, it features universal 100-240VAC input (47-63Hz) for worldwide compatibility.

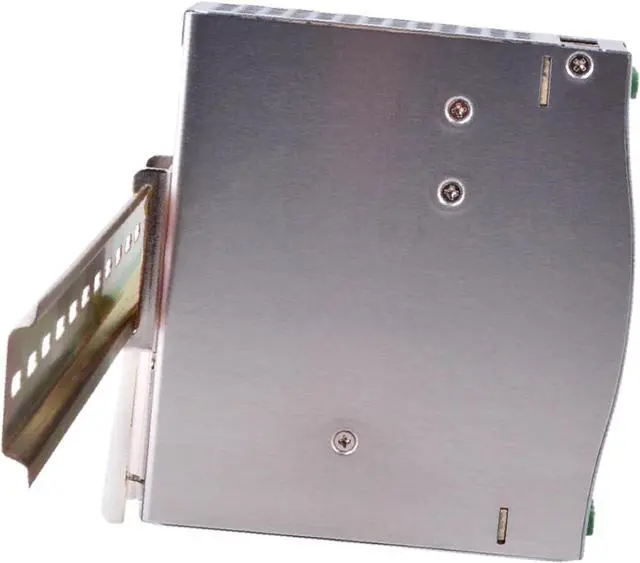

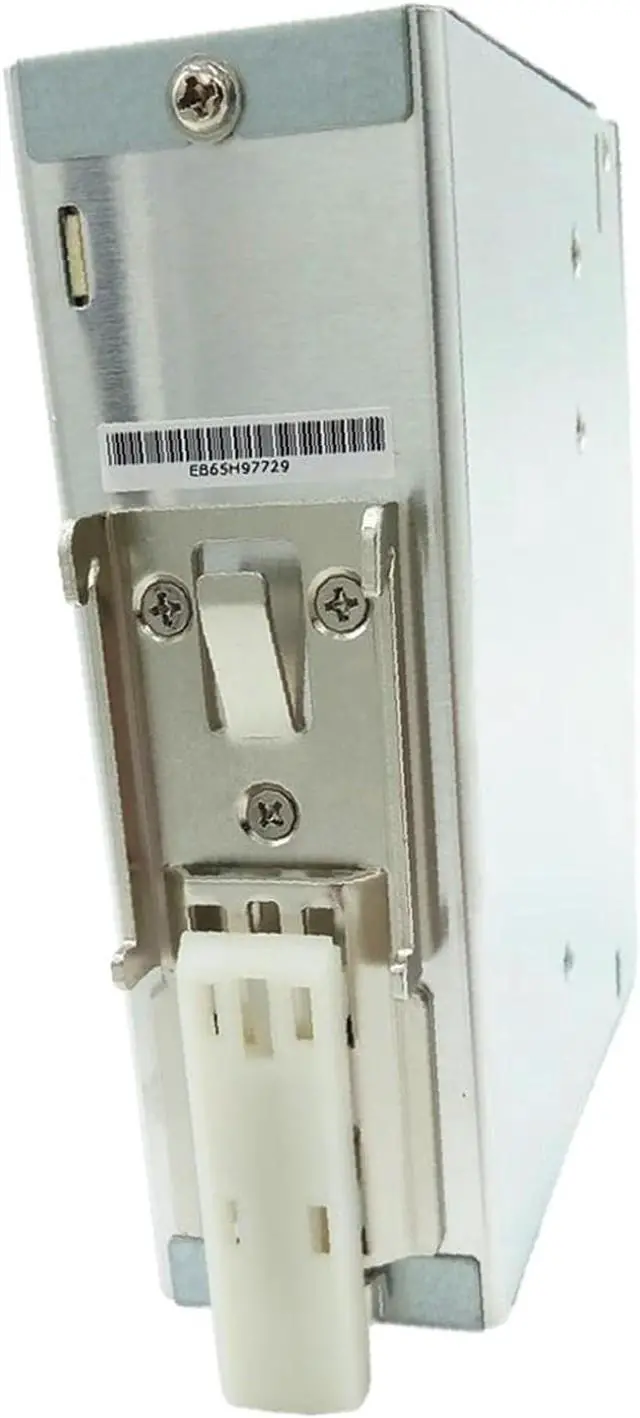

Key technical specifications include: 89% typical efficiency, <120mVp-p ripple/noise, and 50, 000-hour MTBF at 25C. The unit operates within -30C to +70C ambient temperatures (derating required above 60C) with 20-90% RH non-condensing humidity. Protection mechanisms encompass short-circuit (SCP), overload (OLP), over-voltage (OVP), and over-temperature (OTP) safeguards, all featuring automatic recovery. Its compact metal housing (199*99*38mm) supports both DIN rail (TS-35/ 7.5 /15) and surface mounting via included L-shaped brackets. Certified to UL62368-1, EN62368-1, and EN61347-1 standards with CE/FCC/BSMI/RoHS compliance, it's ideal for powering factory automation systems, LED displays, telecommunications infrastructure, and test equipment. Additional features include remote ON/OFF control, adjustable output voltage (10%), and IP20 protection against accidental contact. The fanless design ensures silent operation while maintaining reliability through advanced thermal management.
Key technical specifications include: 89% typical efficiency, <120mVp-p ripple/noise, and 50, 000-hour MTBF at 25C. The unit operates within -30C to +70C ambient temperatures (derating required above 60C) with 20-90% RH non-condensing humidity. Protection mechanisms encompass short-circuit (SCP), overload (OLP), over-voltage (OVP), and over-temperature (OTP) safeguards, all featuring automatic recovery. Its compact metal housing (199*99*38mm) supports both DIN rail (TS-35/ 7.5 /15) and surface mounting via included L-shaped brackets. Certified to UL62368-1, EN62368-1, and EN61347-1 standards with CE/FCC/BSMI/RoHS compliance, it's ideal for powering factory automation systems, LED displays, telecommunications infrastructure, and test equipment. Additional features include remote ON/OFF control, adjustable output voltage (10%), and IP20 protection against accidental contact. The fanless design ensures silent operation while maintaining reliability through advanced thermal management.
