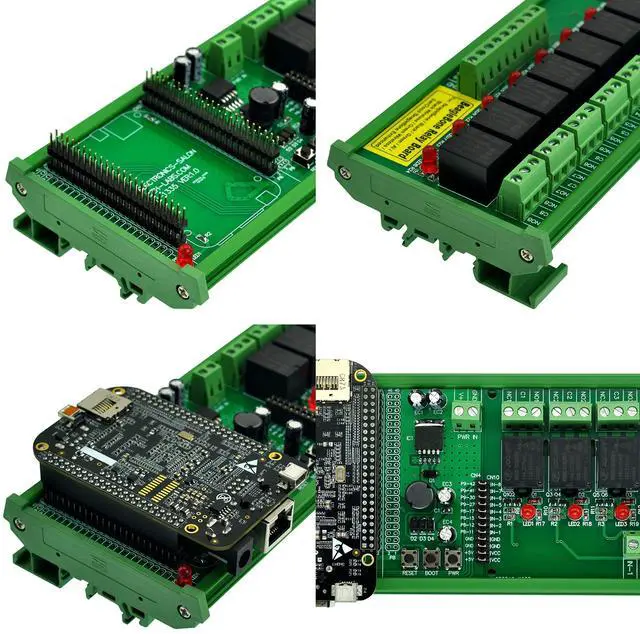

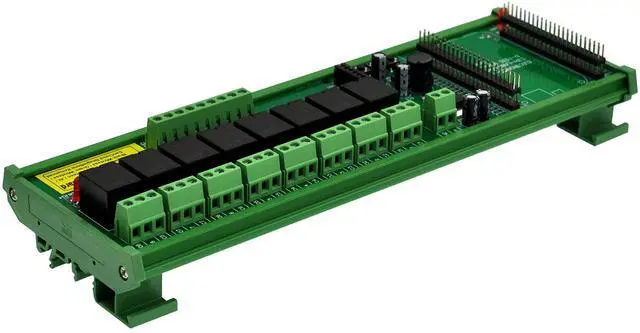

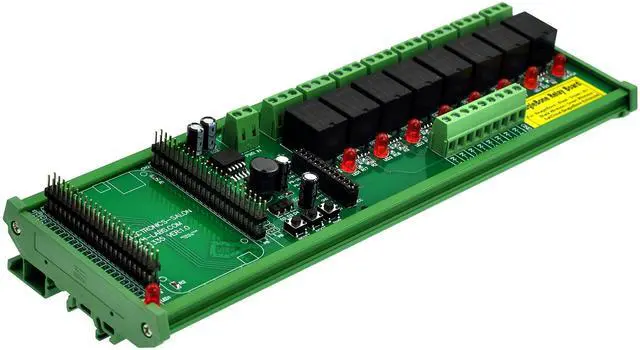

DIN Rail Mount 8 SPDT IoT Power Relay Module for BeagleBone Black
- DIN Rail Mount IoT Power Relay Module for BreagleBone, with the module you can easily extend BreagleBone projects to IoT/industrial control applications. Support for BeagleBone, BeagleBone Black, BeagleBone AI, BeagleBone Black Wireless, BeagleBone Green, BeagleBone Green Wireless or SanCloud BeagleBone Enhanced ( NOTE: the item not include BreagleBone board).
- Support DC 5V or DC 7V ~ 32V power supply. With a RESET / BOOT / PWR button on board for BreagleBone Black. Relay action LED indication corresponds to each channel. Support pin jumper chose control signal from BreagleBone or external signal.
- 8 channels SPDT power relays. Contact Rating (each channel): 125VAC/12A, 277VAC/10A or 30VDC/10A.
- FR-4 glass fiber PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1, DIN Rail Mount IoT Power Relay Module for BreagleBone, with the module you can easily extend BreagleBone projects to IoT/industrial control applications. Support for BeagleBone, BeagleBone Black, BeagleBone AI, BeagleBone Black Wireless, BeagleBone Green, BeagleBone Green Wireless or SanCloud BeagleBone Enhanced (
NOTE: the item not include BreagleBone board). 2, Support DC 5V or DC 7V ~ 32V power supply. With a RESET / BOOT / PWR button on board for BreagleBone Black. 3, Relay action LED indication corresponds to each channel. Support pin jumper chose control signal from BreagleBone or external signal. 4, 8 channels SPDT power relays.
Contact Rating (each channel): 125VAC/12A, 277VAC/10A or 30VDC/10A. 5, FR-4 glass fiber PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
NOTE: the item not include BreagleBone board). 2, Support DC 5V or DC 7V ~ 32V power supply. With a RESET / BOOT / PWR button on board for BreagleBone Black. 3, Relay action LED indication corresponds to each channel. Support pin jumper chose control signal from BreagleBone or external signal. 4, 8 channels SPDT power relays.
Contact Rating (each channel): 125VAC/12A, 277VAC/10A or 30VDC/10A. 5, FR-4 glass fiber PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
