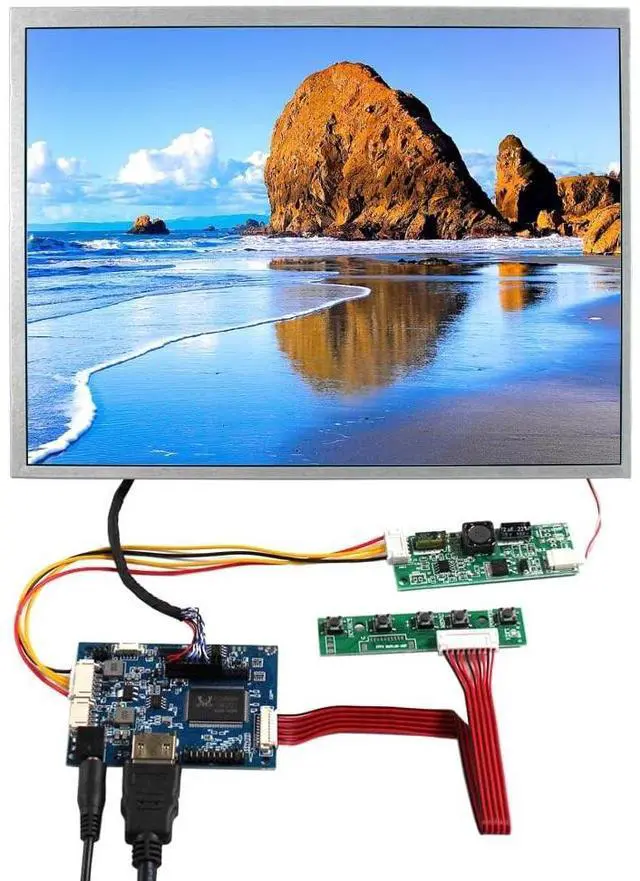

VSDISPLAY 12.1 Inch 800x600 IPS LCD Screen 450 Nits 4:3 Aspect Ratio Industrial Replacement Display Panel VS121T-002A with Audio LCD Controller Board
- SpecificationBrightness 450 cd/m (Typ.);12.1'' 800x600 IPS LCD Screen with Audio LCD Controller Board VS-TY2660H-V661
- Size DetailsOutline Size 26220210mm (HVD);Display Area 245.76 184.32mm (HV)
- FeaturesSupports audio input;Multiple use,it's perfect for DIY project,can be used for panel replacement etc.
- ServiceAll the products are tested before package and shipment,if any problem of product,please feel free to contact us

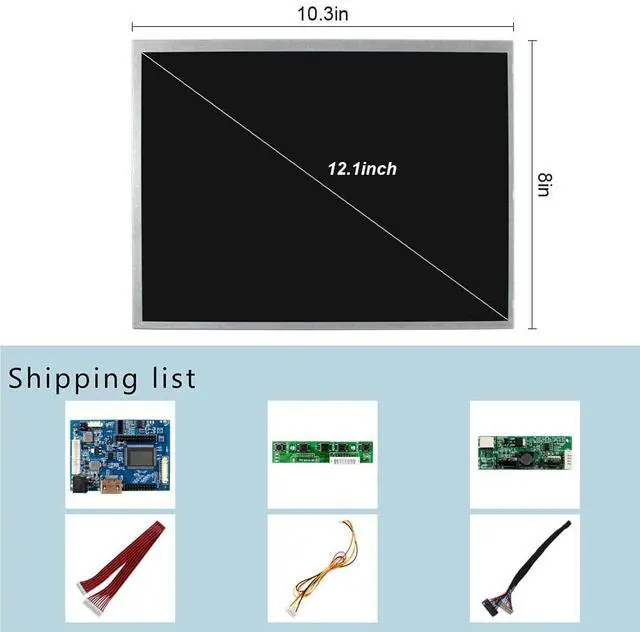

- Packing list1 Audio LCD Controller Board VS-TY2660H-V661;1 12.1inch VS121T-002A 800x600 IPS LCD Screen;1 LVDS Cable;1 Keyboard With Cable(Please notice that there is no power supply in the package,pls prepare by yourself)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

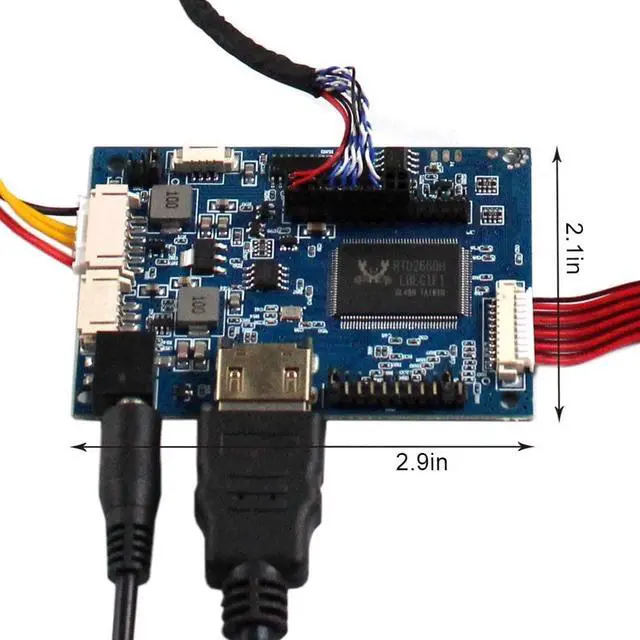

LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. (Please notice that there is no power supply in the package, pls prepare by yourself)Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 12.1" VS121T-002A 800x600 IPS
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 800 (RGB) 600Outline Size 26220210mm (HVD) Display Area 245.76 184.32 mm (HV) Brightness 450 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) Signal Interface Parallel LVDS (1 ch, 6/8-bit), 20 pins, Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 12.1 inch VS121T-002A 800x600 IPS LCD Screen1 LVDS Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. (Please notice that there is no power supply in the package, pls prepare by yourself)Come In Standby Model When Not Input SignalStandby
Model <1WAudio Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 12.1" VS121T-002A 800x600 IPS
LCD Screen: Display Mode IPS, Normally Black, TransmissiveResolution 800 (RGB) 600Outline Size 26220210mm (HVD) Display Area 245.76 184.32 mm (HV) Brightness 450 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) Signal Interface Parallel LVDS (1 ch, 6/8-bit), 20 pins, Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 12.1 inch VS121T-002A 800x600 IPS LCD Screen1 LVDS Cable1 Keyboard With Cable
