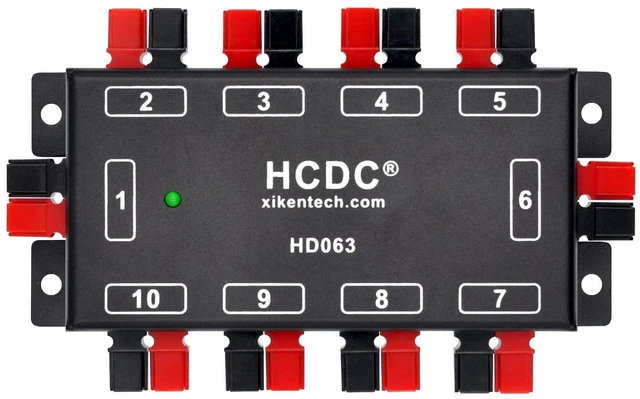

HCDC HD063 10 Position DC Power Distribution Block Module for 15/30/45A Connectors
- HCDC HD063 10 ports DC power distribution block module for 15/30/45A power pole connectors.
- Maximum voltag: 60V. Maximum current (input or total output): 45 Amp.

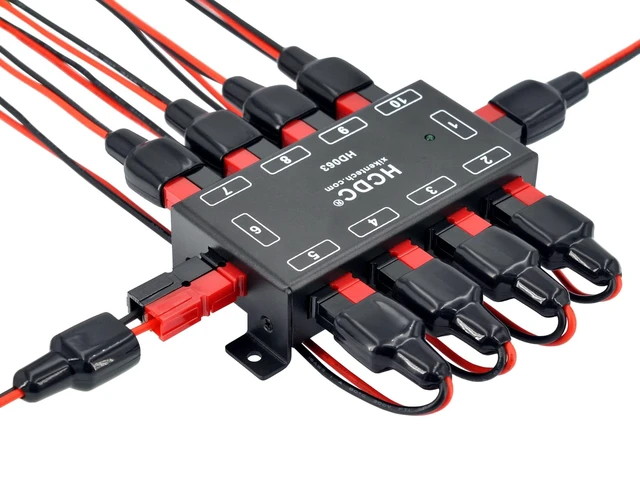

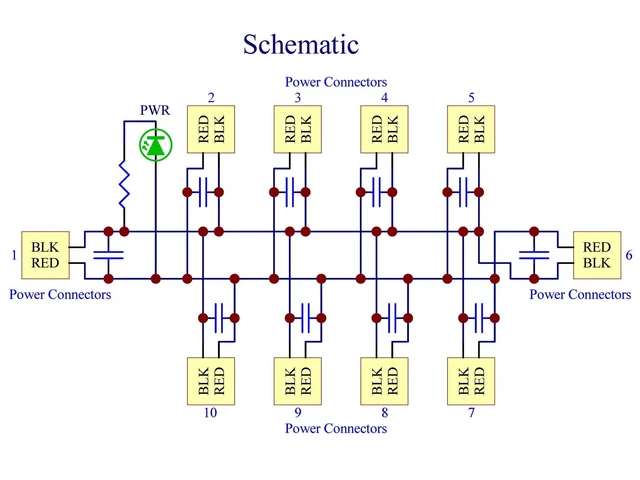

- The input port can be configured flexibly, 1 to 10 any one port can be used as an input port, and other ports can be used as output ports. LED power indicator. Each port is configured with a 100nF capacitor to reduce noise crosstalk between ports.

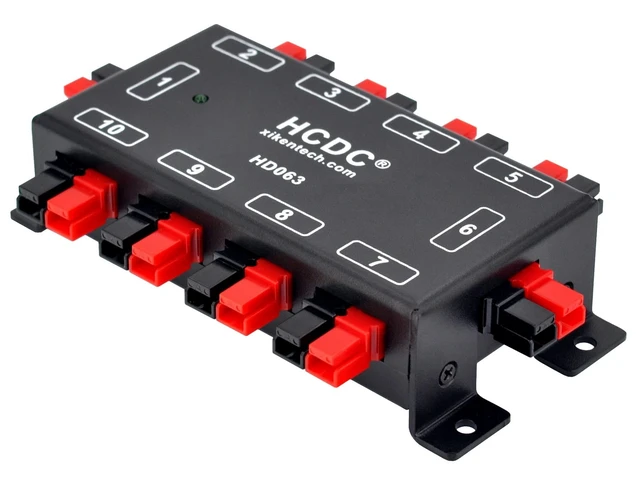

- Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. The 10 ports are respectively distributed on the left, right, front and back sides, and screw fixing feet are raised by 5mm to facilitate external wiring.

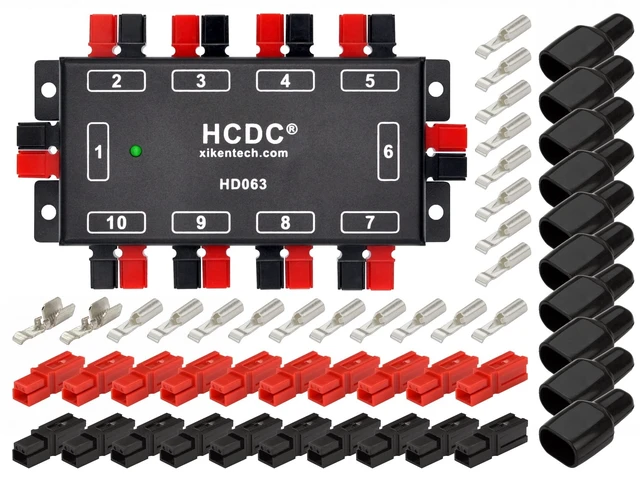

- Packing list: 1x HD063 distribution module, 10 black power pole housings, 10 red power pole housings, 10 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts.
- Overall Dimensions(not in
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
HCDC HD063 10 ports DC power distribution block module for 15/30/45A power pole connectors.
^^ Maximum voltag: 60V. Maximum current (input or total output): 45 Amp. ^^ The input port can be configured flexibly, 1 to 10 any one port can be used as an input port, and other ports can be used as output ports. LED power indicator. Each port is configured with a 100nF capacitor to reduce noise crosstalk between ports.
^^ Enclosure: High quality aluminum enclosure, thickness 1.5 mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. The 10 ports are respectively distributed on the left, right, front and back sides, and screw fixing feet are raised by 5mm to facilitate external wiring.
^^ Packing list: 1x HD063 distribution module, 10 black power pole housings, 10 red power pole housings, 10 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts. ^^ Overall Dimensions (not include external plugs): L 125mm x W 77mm x H 29mm / 4.92" x 3.03" x 1.14". Net weight (not include external plugs): 142g.
^^ Maximum voltag: 60V. Maximum current (input or total output): 45 Amp. ^^ The input port can be configured flexibly, 1 to 10 any one port can be used as an input port, and other ports can be used as output ports. LED power indicator. Each port is configured with a 100nF capacitor to reduce noise crosstalk between ports.
^^ Enclosure: High quality aluminum enclosure, thickness 1.5 mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. The 10 ports are respectively distributed on the left, right, front and back sides, and screw fixing feet are raised by 5mm to facilitate external wiring.
^^ Packing list: 1x HD063 distribution module, 10 black power pole housings, 10 red power pole housings, 10 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts. ^^ Overall Dimensions (not include external plugs): L 125mm x W 77mm x H 29mm / 4.92" x 3.03" x 1.14". Net weight (not include external plugs): 142g.
