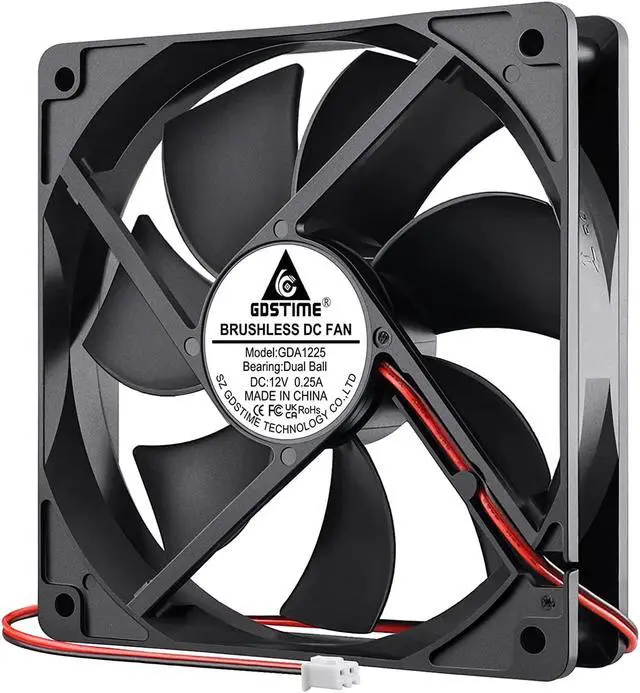

GDSTIME Dual Ball Bearings 120mm x 120mm x 25mm 5 inch 12v Brushless DC Cooling Exhaust Fan, For Desktop

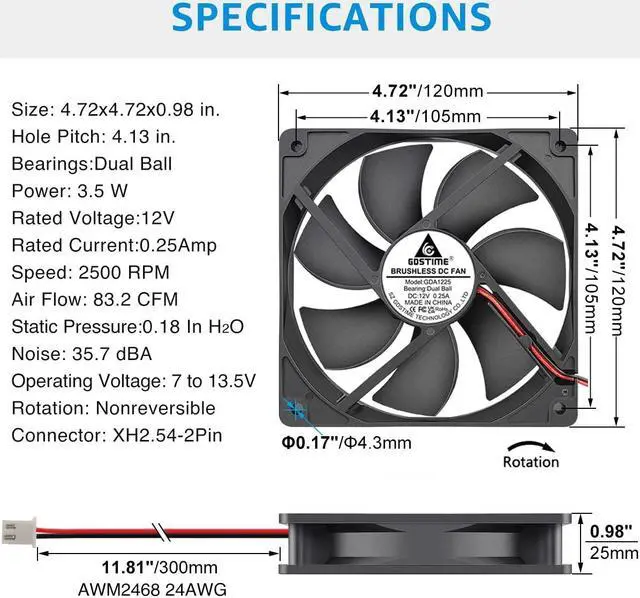

- Dimension of outer the frame is 120mm(L) x 120mm(W) x 25mm(H) / The size of fan in inch is 4.72in(L) x 4.72in(W) x 1in(H); The center to center distance beween the mountiong holes is 105±0.3mm/4.13in.
- Operating Voltage Range5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.) The started Voltage is 3.6V.
- Rated Voltage: DC 12V; Rated Current: 0.25Amp ±10% ; Rated Speed: 2500 RPM; Air flow: 83.2CFM; Noise: 35.7dBA; Power: 3.5Watt
- Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
- Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dimension of outer the frame is 120mm (L) x 120mm (W) x 25mm (H) / The size of fan in inch is 4.72 in (L) x 4.72 in (W) x 1in (H); The center to center distance beween the mountiong holes is 105± 0.3 mm/ 4.13 in.
Operating Voltage Range 5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan. ) The started Voltage is 3.6V.
Rated Voltage: DC 12V;
Rated Current: 0.25A mp ±10%;
Rated Speed: 2500 RPM;
Air flow: 83.2CFM;
Noise: 35.7 dBA; Power: 3.5W att

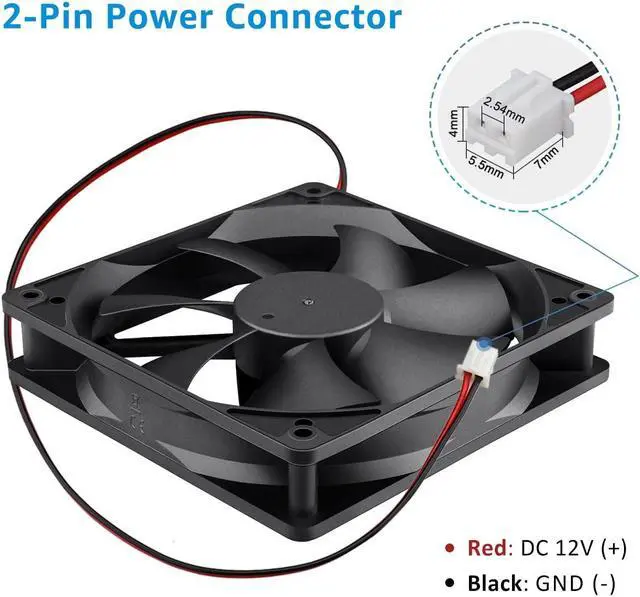

Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire; (-): Black wire. This is a two wire cooling fan;

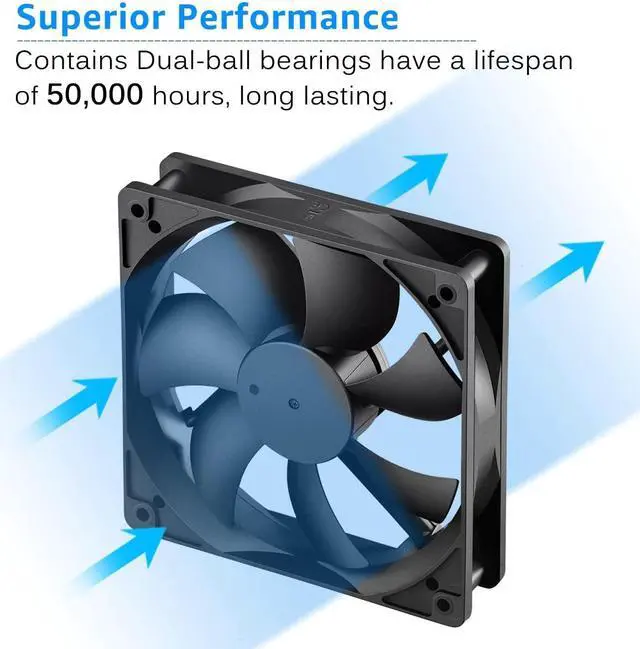

Bearing Type: Dual Ball Bearings;
Life: working up to 50000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
Operating Voltage Range 5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan. ) The started Voltage is 3.6V.
Rated Voltage: DC 12V;
Rated Current: 0.25A mp ±10%;
Rated Speed: 2500 RPM;
Air flow: 83.2CFM;
Noise: 35.7 dBA; Power: 3.5W att
Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire; (-): Black wire. This is a two wire cooling fan;
Bearing Type: Dual Ball Bearings;
Life: working up to 50000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
