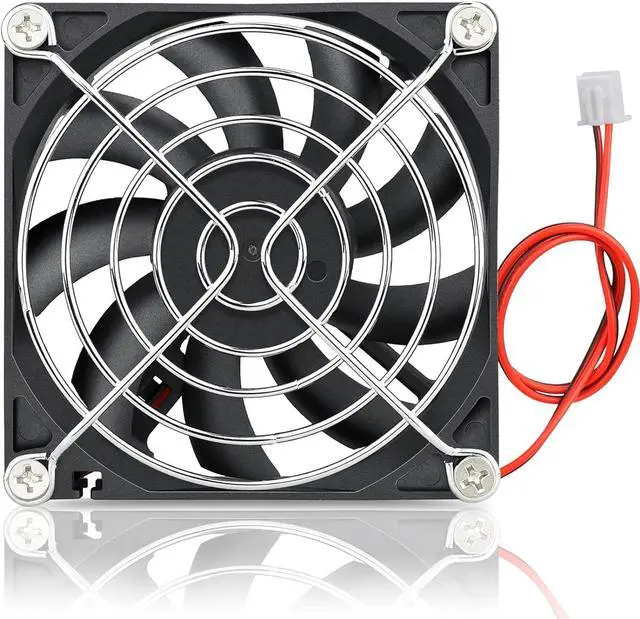

GDSTIME 80mm Fan, 80mm x 80mm x 15mm 24V DC Brushless Cooling Fan Sleeve Bearing

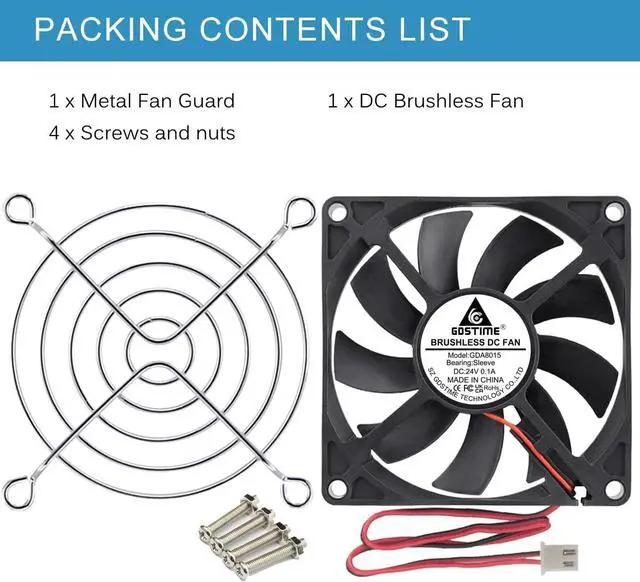

- Package include: 1piece fan include fan grill and mounting screws & nuts

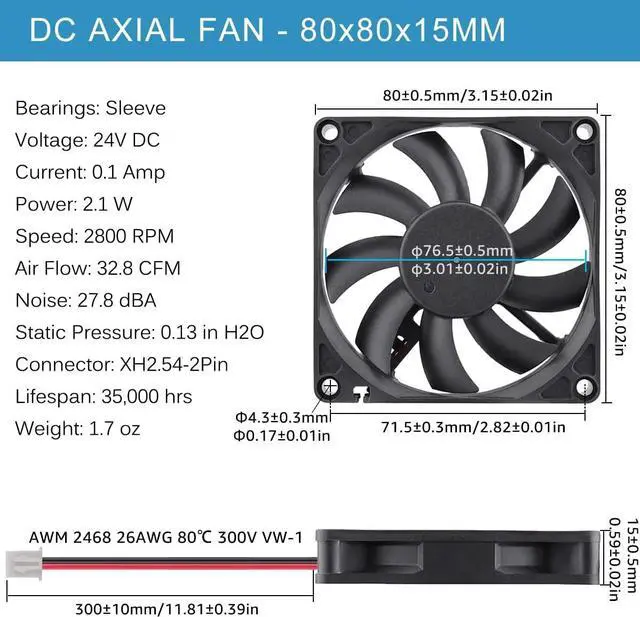

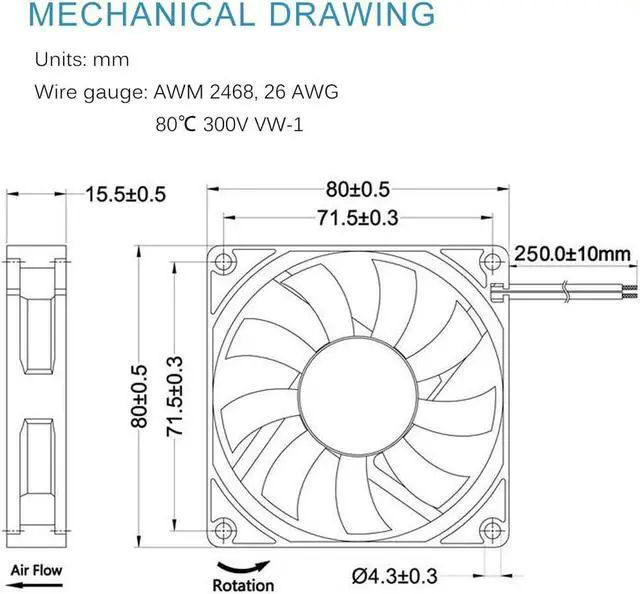

- Dimension: 80mm( L ) x 80mm ( W ) x 15mm( H ) or 3.15''( L ) x 3.15''( W ) x 0.59''( H )
- Rated Voltage: DC 24V; Rated Current: 0.1Amp; Rated Speed:3800RPM; Air flow: 32.8CFM; Noise: 27.8dBA
- Bearing Type: Sleeve Bearing ; Life: working up to 35000h at 25 degrees.

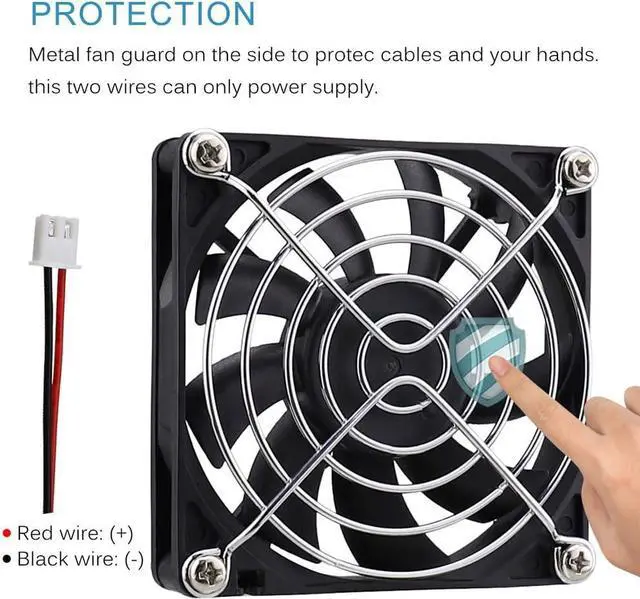

- Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Package include: 1piece fan include fan grill and mounting screws & nuts
Dimension: 80mm ( L ) x 80mm ( W ) x 15mm ( H ) or 3.15 ' ' ( L ) x 3.15 ' ' ( W ) x 0.59 ' ' ( H )
Rated Voltage: DC 24V;
Rated Current: 0.1A mp;
Rated Speed: 3800RPM;
Air flow: 32.8CFM; Noise: 27.8 dBA
Bearing Type: Sleeve Bearing;
Life: working up to 35000h at 25 degrees.
Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire; (-): Black wire. This is a two wire cooling fan.
Dimension: 80mm ( L ) x 80mm ( W ) x 15mm ( H ) or 3.15 ' ' ( L ) x 3.15 ' ' ( W ) x 0.59 ' ' ( H )
Rated Voltage: DC 24V;
Rated Current: 0.1A mp;
Rated Speed: 3800RPM;
Air flow: 32.8CFM; Noise: 27.8 dBA
Bearing Type: Sleeve Bearing;
Life: working up to 35000h at 25 degrees.
Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire; (-): Black wire. This is a two wire cooling fan.
