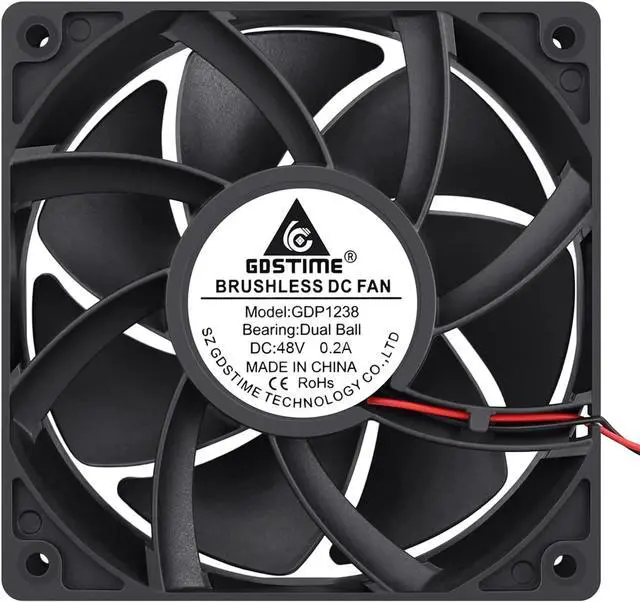

GDSTIME 1238 48V Fan, 120mm x 38mm Dual Ball Bearings DC Brushless Cooling Fan
- Dimension of outer the frame is 120mm(L) x 120mm(W) x 38mm(H) / The size of fan in inch is 4.72in(L) x 4.72in(W) x 1.5in(H)
- The center to center distance beween the mountiong holes is 105mm/4.13in.
- Rated Voltage: DC 48V; Rated Current: 0.2Amp; Rated Speed: 3500 RPM; Air flow: 158CFM; Noise: 48.3dBA
- Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
- Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dimension of outer the frame is 120mm (L) x 120mm (W) x 38mm (H) / The size of fan in inch is 4.72 in (L) x 4.72 in (W) x 1.5 in (H)
The center to center distance beween the mountiong holes is 105mm/ 4.13 in.
Rated Voltage: DC 48V;
Rated Current: 0.2A mp;
Rated Speed: 3500 RPM;

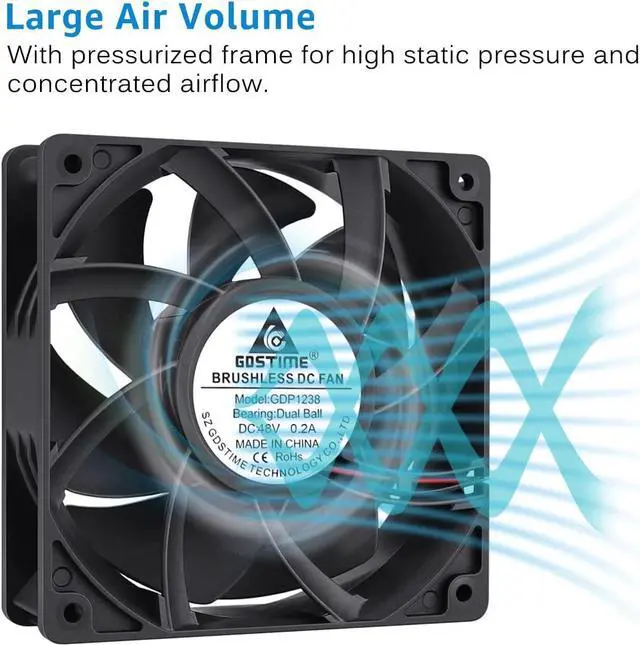

Air flow: 158CFM; Noise: 48.3 dBA

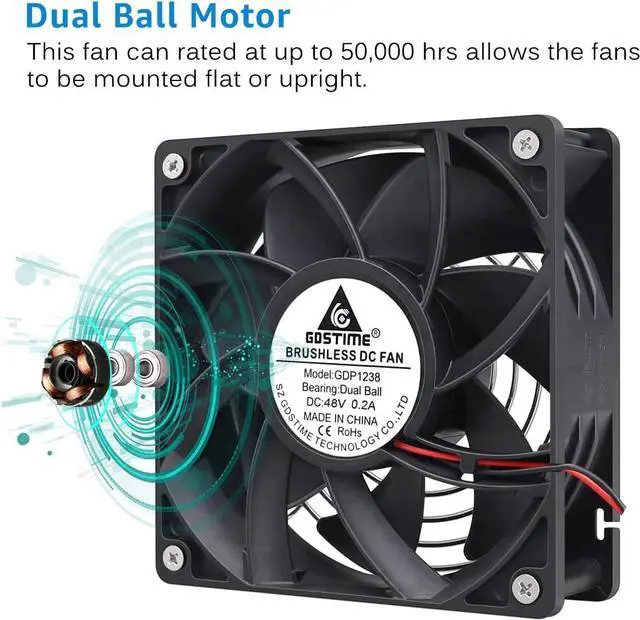

Bearing Type: Dual Ball Bearings;
Life: working up to 50000h at 25 degrees.

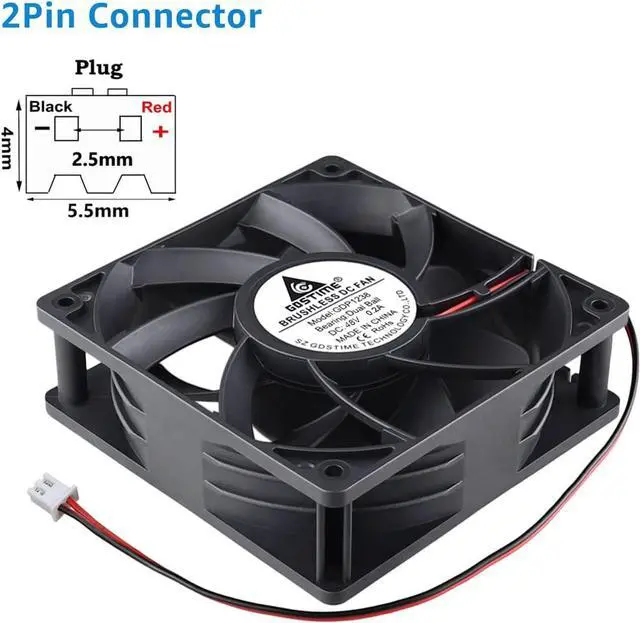

Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire; (-): Black wire.
The center to center distance beween the mountiong holes is 105mm/ 4.13 in.
Rated Voltage: DC 48V;
Rated Current: 0.2A mp;
Rated Speed: 3500 RPM;
Air flow: 158CFM; Noise: 48.3 dBA
Bearing Type: Dual Ball Bearings;
Life: working up to 50000h at 25 degrees.
Connector: XH 2.54 -2Pin;
Lead wire: UL
Type (+): Red
wire; (-): Black wire.
