Outdoor Gigabit PoE+ Extender Repeater POE IP65 Rating 25W Power Budget via Cat5e Cat6 RJ45 Ethernet Network Cables, Daisy-Chain 3 Yr Mfg Warranty 561211 By DT
- EXTEND POWER OVER ETHERNET: Delivers up to 25 W to a connected PoE device. Can be daisy chained with up to four PoE extenders for a maximum distance of up to 1640 ft. Doubles the connection distance between PoE input source and device from 328 ft to 656 ft.
- VERSATILE: Requires no additional power supply Draws power directly from existing Ultra PoE, PoE, or PoE+ injector or switch Works with network cameras, wireless access points, VolP phones and much more Supports device connections at 10 / 100 / 1000 Mbps
- PROTECTION: Short-circuit, overload and high-voltage protection Grounding point to protect equipment from external electrical surges. Also has Rubber seals for maximal weather protection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
READY TO INSTALL: Simple Instructions included.
BUILT TO LAST Harsh outdoor weather Industrial IP65 rating with rubber seals - Comes with a three-year mfg warranty

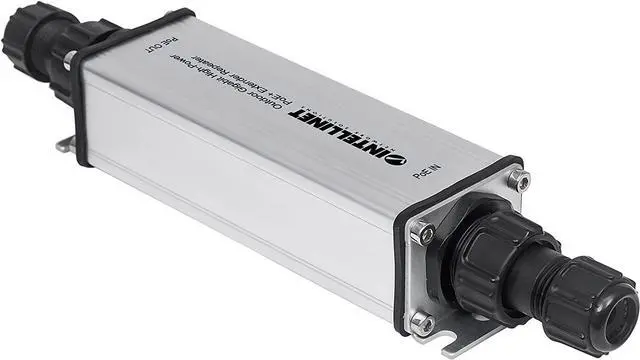

The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater (561211) is designed to extend connection distances from a PoE source to an output device up to 100 m (328 ft. ) via Cat5e or Cat6 cable. Cover even longer distances by cascading up to five extenders. The PoE+ Extender Repeater does not need an additional power supply, as it draws the power it needs from the PoE input.
With an IP65 rating and a vast operating temperature range of -40 75°C (-4 to 167°F), the Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater can be deployed in harsh conditions, which sets it apart from its indoor counterpart, the Intellinet Network Solutions PoE+ Extender (560962).
Simply connect the "PoE In" port with your PoE injector or PoE switch and connect the "PoE Out" with the PoE device that you wish to connect (e. g., a VoIP phone or a PoE network camera). That's it. There is nothing to configure. It simply could not be any easier.
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5 cabling to deliver DC power as well as transfer data.
The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3 at protocol. It is designed to forward data at Gigabit speeds and provide up to 25 watts of input power to a connected IEEE 802.3 af- or IEEE 802.3 at-compliant device. The cable length on both ends can be up to 100 meters (328 ft. ), bringing the total distance to 200 m (656 ft. ).
Daisy-chaining multiple PoE extenders increases the transmission distance even farther. Be advised that each added PoE extender draws up to 4 W of usable PD power, and additional power losses will occur as the cable length increases.
Fanless design ideal for silent operation
Compact aluminum case
IP65 rated waterproof and dust tight
Mounting holes for wall mounting
Outdoor Gigabit High-Power PoE+ Extender Repeater, Extends Range Beyond the 328 ft (100 m) Limit, Metal Housing, IP65
IEEE 802.3 at/af Power over Ethernet (PoE+/PoE)
Extends an existing PoE connection beyond the 100 m (328 ft. ) limit
Saves time and money by delivering data and power via existing network cables
Covers longer distances by cascading multiple PoE extenders (Model 561211) together
Can be daisy-chained with up to four PoE extenders for a distance of up to 500 m (1640 ft. )
Supports 10/100/1000 Mbps data rates and delivers up to 25 W to a connected PoE device
PoE awareness ensures that power is only sent to IEEE 802.3 af/at-compliant devices; non-PoE devices only receive data
Requires no additional power supply; draws the power directly from the PoE input
Compatible with IEEE 802.3 at/af-compliant PoE injectors and PoE switches (PSE)
Compatible with IEEE 802.3 at/af-compliant powered devices (PD)
Ethernet
ethernet, ieee 802 3 at
Ethernet
What's in the box
Instruction manual
Looking for specific info?
BUILT TO LAST Harsh outdoor weather Industrial IP65 rating with rubber seals - Comes with a three-year mfg warranty
The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater (561211) is designed to extend connection distances from a PoE source to an output device up to 100 m (328 ft. ) via Cat5e or Cat6 cable. Cover even longer distances by cascading up to five extenders. The PoE+ Extender Repeater does not need an additional power supply, as it draws the power it needs from the PoE input.
With an IP65 rating and a vast operating temperature range of -40 75°C (-4 to 167°F), the Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater can be deployed in harsh conditions, which sets it apart from its indoor counterpart, the Intellinet Network Solutions PoE+ Extender (560962).
Simply connect the "PoE In" port with your PoE injector or PoE switch and connect the "PoE Out" with the PoE device that you wish to connect (e. g., a VoIP phone or a PoE network camera). That's it. There is nothing to configure. It simply could not be any easier.
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5 cabling to deliver DC power as well as transfer data.
The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3 at protocol. It is designed to forward data at Gigabit speeds and provide up to 25 watts of input power to a connected IEEE 802.3 af- or IEEE 802.3 at-compliant device. The cable length on both ends can be up to 100 meters (328 ft. ), bringing the total distance to 200 m (656 ft. ).
Daisy-chaining multiple PoE extenders increases the transmission distance even farther. Be advised that each added PoE extender draws up to 4 W of usable PD power, and additional power losses will occur as the cable length increases.
Fanless design ideal for silent operation
Compact aluminum case
IP65 rated waterproof and dust tight
Mounting holes for wall mounting
Outdoor Gigabit High-Power PoE+ Extender Repeater, Extends Range Beyond the 328 ft (100 m) Limit, Metal Housing, IP65
IEEE 802.3 at/af Power over Ethernet (PoE+/PoE)
Extends an existing PoE connection beyond the 100 m (328 ft. ) limit
Saves time and money by delivering data and power via existing network cables
Covers longer distances by cascading multiple PoE extenders (Model 561211) together
Can be daisy-chained with up to four PoE extenders for a distance of up to 500 m (1640 ft. )
Supports 10/100/1000 Mbps data rates and delivers up to 25 W to a connected PoE device
PoE awareness ensures that power is only sent to IEEE 802.3 af/at-compliant devices; non-PoE devices only receive data
Requires no additional power supply; draws the power directly from the PoE input
Compatible with IEEE 802.3 at/af-compliant PoE injectors and PoE switches (PSE)
Compatible with IEEE 802.3 at/af-compliant powered devices (PD)
Ethernet
ethernet, ieee 802 3 at
Ethernet
What's in the box
Instruction manual
