4 Ports USB 3.0/2.0/1.1 Over Fiber Optic Extender to 250 Meters on 2 Core Single-Mode Fiber, USB 3.2 Gen 1 to Optic Fiber, Supports 5 Gbps Speed, Backward Compatible with USB 2.0/1.1

with Hot pluggable SFP module (2 x LC); pure hardware design, no driver needed, support Full Duplex.
Compatible with Windows 8, Windows 8.1, Windows 10, Windows 11, full version of the LINUX, UNIX, Mac OS operation systems
Description:

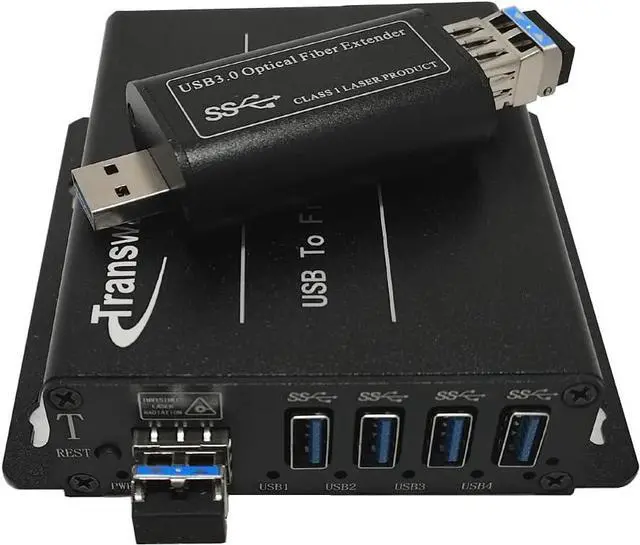

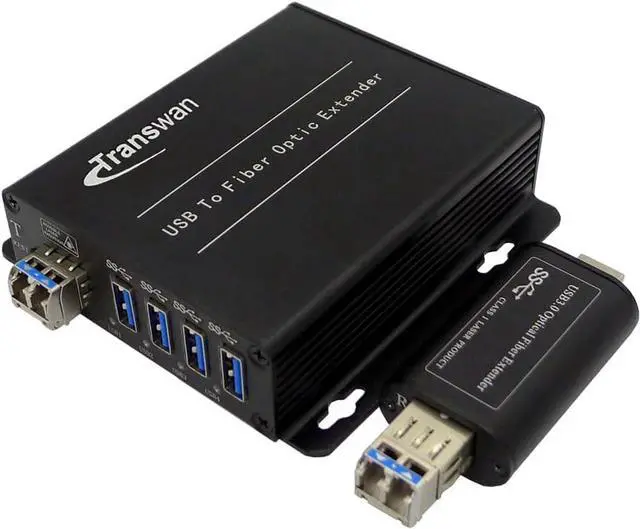

BY-USB-327DF includes a Tx (at client-side) and a Rx (at host-side), which can extend the signal of USB 3.0/2.0/1.1 to a remote location over 2 core Single-mode fiber cable, Max distance 250 Meters (820 FT)
Notice
1). DOES not support 3D Scanner

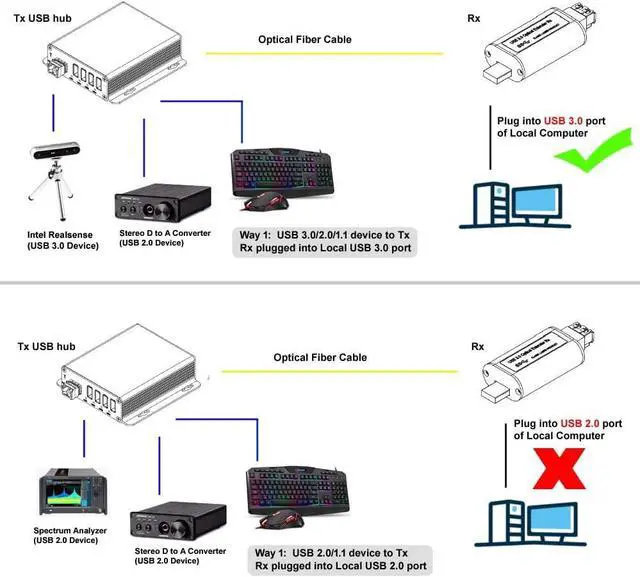

2) Backwards compatible with USB 2.0 /1.1 for 4 ports of transmitter, But the receiver at host-side must be inserted into USB 3.0 Port, if not into USB 3.0 port, the configuration DOES not work
3) 4 Ports of the hub share the 5 Gbps Capacity of 1 port at the local side, so it allows only 1~2 USB ports High Speed devices like USB 3.0 Camera work at the FULL speed at the SAME time, but for USB flash disk, 4 ports can work at the SAME time.

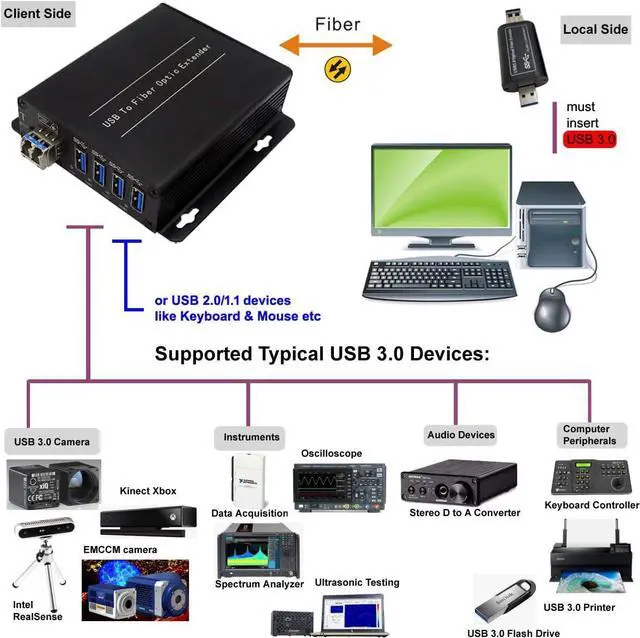

Supported Typical Devices
1). USB 3.0 Cameras:
RealSense, XiQ USB 3.0 Camera, Kinect Xbox, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc
3). Aduio Devices:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.)
USB 2.0/1.1 Devices
like Keyboard and Mouse & Audio devices
SPECS:
Optical:
Connector: 2 x LC
Wavelength:1310nm
Support Fiber types: 9/125m (SMF)
Each USB port supports Data rates:
1.5 Mbps~5.0 Gbps)
Physical:
Size (L× W ×H):1) Transmitter: 104 x 104 x 28 mm ; 2) Receiver: 51 x 33 x 17.5 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage:5V DC
Tx power consumption:
Rx power consumption:
Environment:
Working temperature:0-50
Storage temperature:-40-85
Humidity: 0-95% (non-condensing)
Package:
1. 1 x transmitter
2. 1 x receiver.
3. 1 x Power Adapter DC 5~12V with US plug.
4. 1 x Manual.
