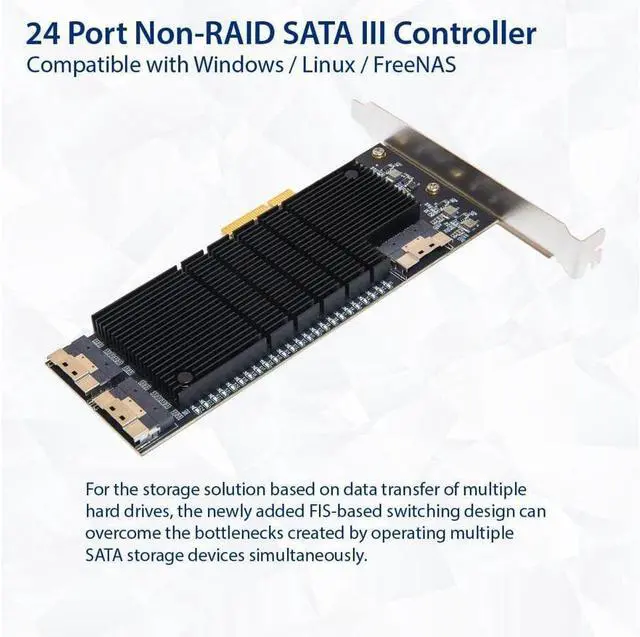

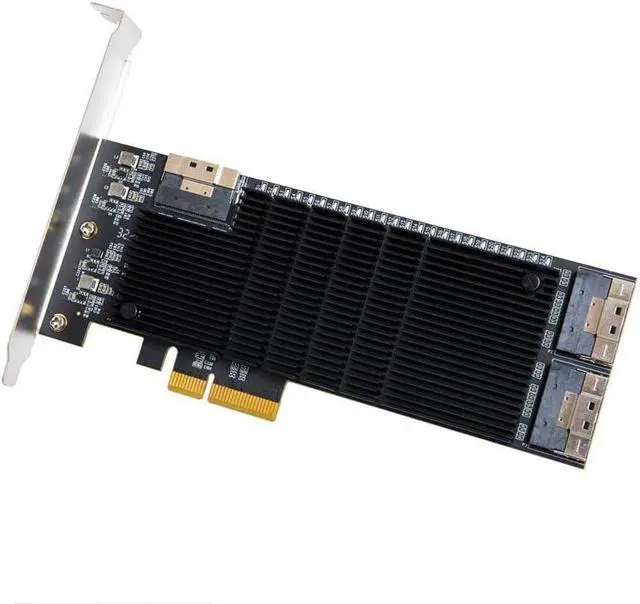

24 Port SATA III to PCIe 3.0 x4 Non-RAID Expansion Card JMB575 JMB582 Low Profile Bracket,SI-PEX40169

Supports 24 port 6Gb/s SATA III interface,Supports Port Multiplier,Supports Hot-Plug,Supports drive power control and staggered spin-up.Supports SATA Partial / Slumber power management state.
Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1. 0, supports SATA 3. 0 transfer rate up to 6Gbps. Maximum sequencing read/ write speed 850 MB/s.
Micron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported. Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

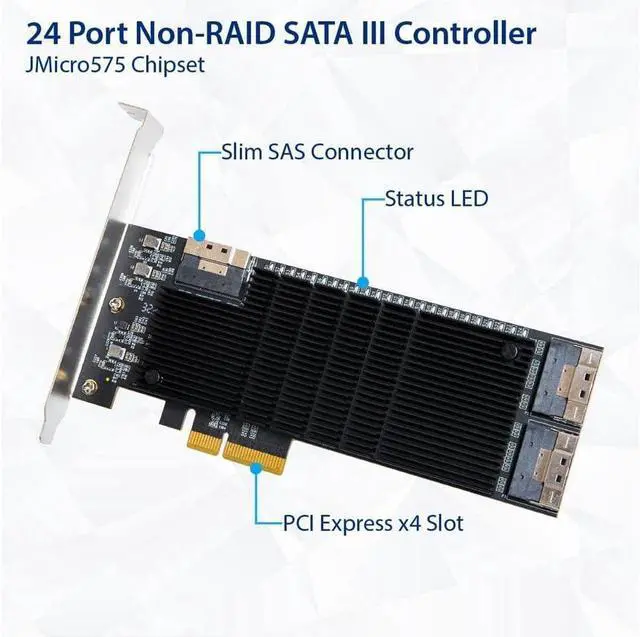

JMicron JMB575 is a single chip. It integrated six independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5- ports Serial ATA III Port Multiplier or a 5 to 1-port Serial ATA III Port Selector.
Compatible with Windows XP/7/8/10/Mac/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

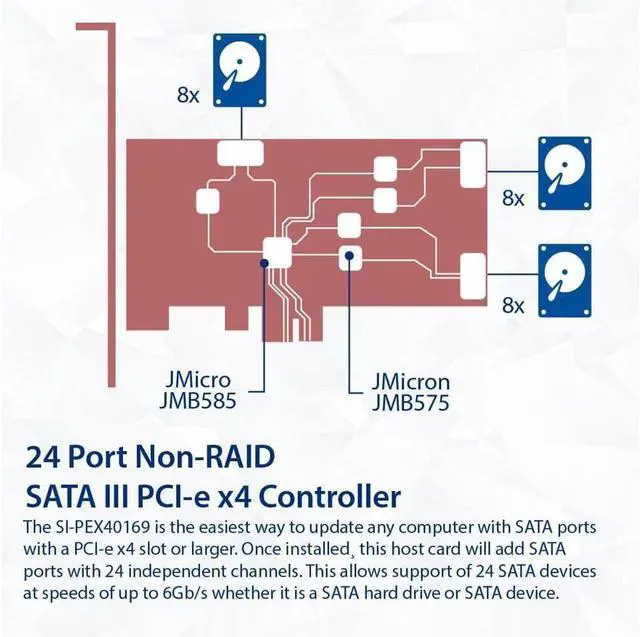

The SY-PEX40169 adds 24 SATA 6G ports through a PCIe 3.0 x4 card to your PC System. It's an ideal solution for surveillance users to install up to 24 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.
