Quad-Port Gigabit NIC with Intel I350 Chip, 1Gb Network Card Compare to Intel I350-T4 NIC, 4-Port RJ45 Ports, PCI Express 2.1 X4, Ethernet Card with Low Profile for Windows/Windows Server/Linux

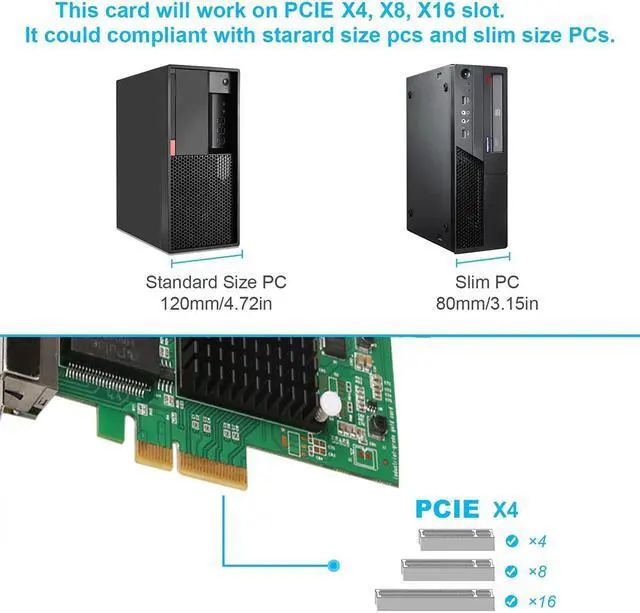

High-performance PCIe interface: Supports PCIe v2.1 standard, compatible with 2.5GT/s and 5GT/s transfer rates, X4 interface, compatible with X8 and X16 slots, and low-profile bracket for a variety of chassis environments.
Versatile network support: Supports iSCSI, PXE, VLAN, WOL (Wake-on-LAN), SR-IOV, DPDK, Jumbo Frames, and Smart Offload to enhance network performance and efficiency, as well as Windows 10 network aggregation (Teaming).
Wide range of OS compatibility: compatible with Windows 7/8/9/10/11, Windows Server 2012/2012R2/2016/2019/2022, RHEL 9.2 & 8.8/9.0-9.1/8.0-8.7, SLES15 SP5/SP4/SLES12 SP5 and earlier versions, Ubuntu 22.04 LTS/20.04 LTS, Debian 11, FreeBSD 13.1 & 12.4/13.0/12.0-12.3, VMware ESXi 5/6/7, to meet the needs of a variety of application scenarios.
High performance and enterprise-class features: Designed for enterprise-class users, it supports advanced networking features and multiple operating systems to ensure high performance, high reliab

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Based on the new Intel I350AM4 Gigabit Ethernet Controller, the Intel Ethernet Dual Port and Quad Port Server Adapters for IBM System x are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters. These adapters showcase the industry's first fully integrated, multi-port PCIe 2.1 GbE controllers, providing a smaller footprint and lower power dissipation.
In addition, these adapters offer advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express 2.1 interface. Intel's first eco-friendly, halogen-free design combines low power use and low cost for one of the best price to performance ratios in a multi-port solution that is available today.
Features:
Four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling Based on Intel I350-T4 ASIC (quad-port MAC/PHY controller)
PCIe 2.1 x4 host interface
IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications ( 802.3, 802.3 u, and 802.3 ab), 1000BASE-BX and 1000BASE-KX (Without IEEE 802.3 ap Backplane Auto-Negotiation)
Energy Efficient Ethernet (EEE)
IEEE 802.1AS Timing
IEEE 802.3 az
IEEE 1588
IEEE 802.3 ap
IEEE 802.1 ad (Double VLAN)

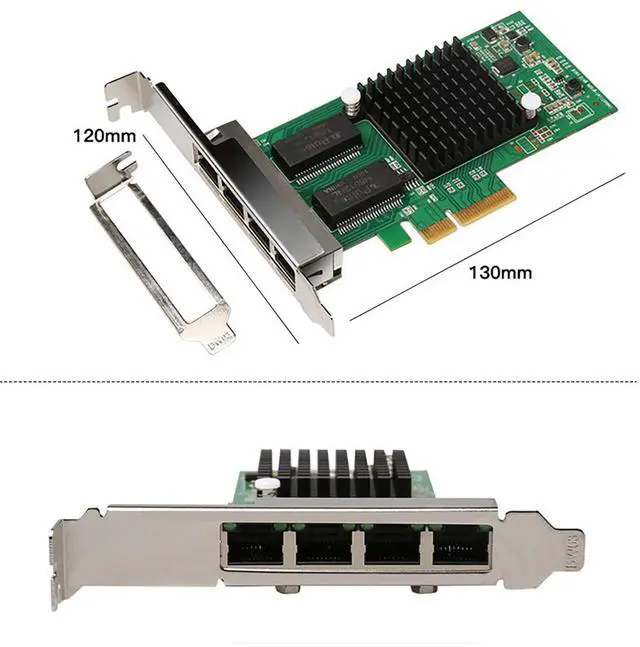

Low-profile card form factor
Wake on LAN support
Preboot eXecution Environment (PXE) boot support
VLAN support with VLAN tag insertion, stripping, and packet filtering for up to 4096 VLAN tags
iSCSI boot support (built-in software iSCSI initiator)
iSCSI support with native operating system initiators
Jumbo frame support
Intel I/O Acceleration Technology (I/OAT) acceleration
Intel Virtual Machine Device Queues (VMDq) support for VMware with eight queues per port
TCP/IP checksum offload
TCP/IP segmentation offload / large-send offload support
Support Windows 7/8/9/10/11, Windows Server 2012/2012R/2016/2019/2022, RHEL 9.2 & 8.8 /RHEL 9.0 - 9.1 / 8.0 - 8.7, SLES15 SP5/SLES15 SP4 /SLE
