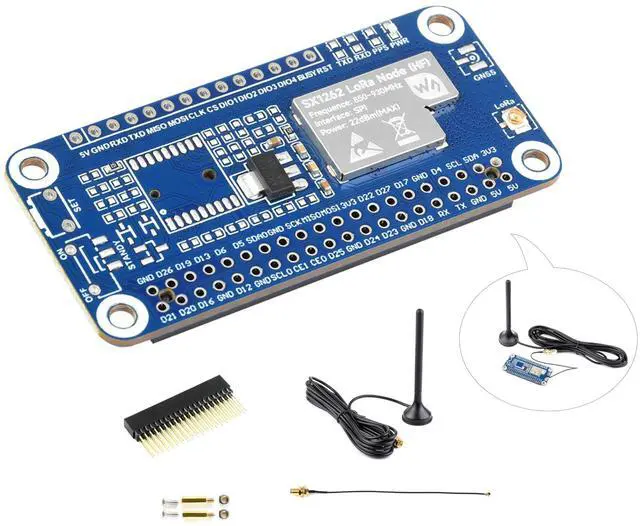

SX1262 868/915M LoRaWAN HAT SX1262 RF Chip LoRa Module Expansion Board Compatible withRaspberry Pi 5/4B/3B+/Pi3B/Pi Zero W WH/Zero 2W, with Magnetic CB Antenna, Suitable for Sub-GHz Band Network

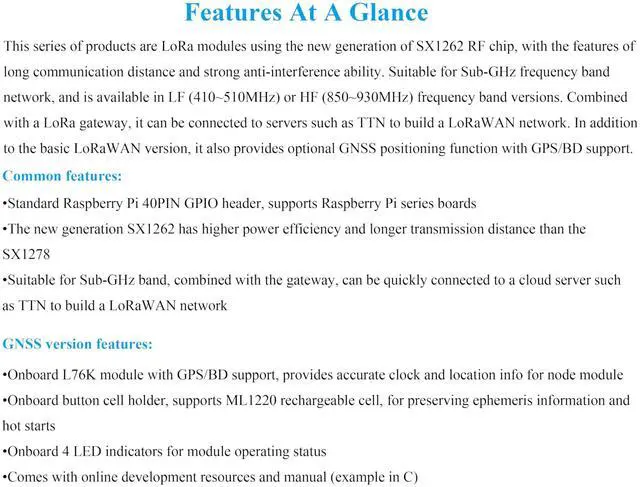

- This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability.
- Suitable for Sub-GHz frequency band network, 850~930MHz frequency band.
- Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network.
- with R Pi 40PIN GPIO header, compatible with RPi 5/4B/3B+/Pi3B/2B/ Pi Zero WH/Zero 2W,etc.
- The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
- Application examples: Industrial control, intelligent home, and data acquisition...
- Comes with Online Development Resources /User Manual, please follow there: bit.ly/3ErTCyF
+
+
Overview

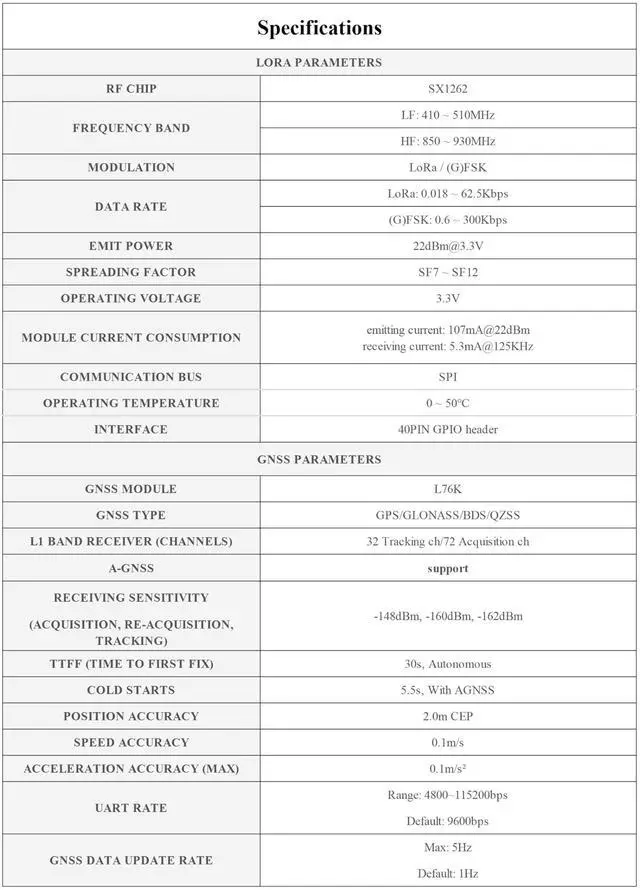

Specs
