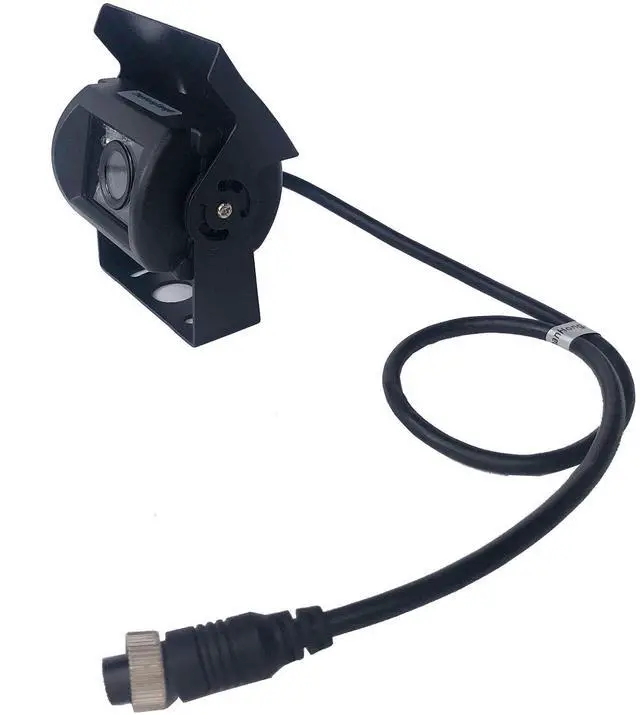

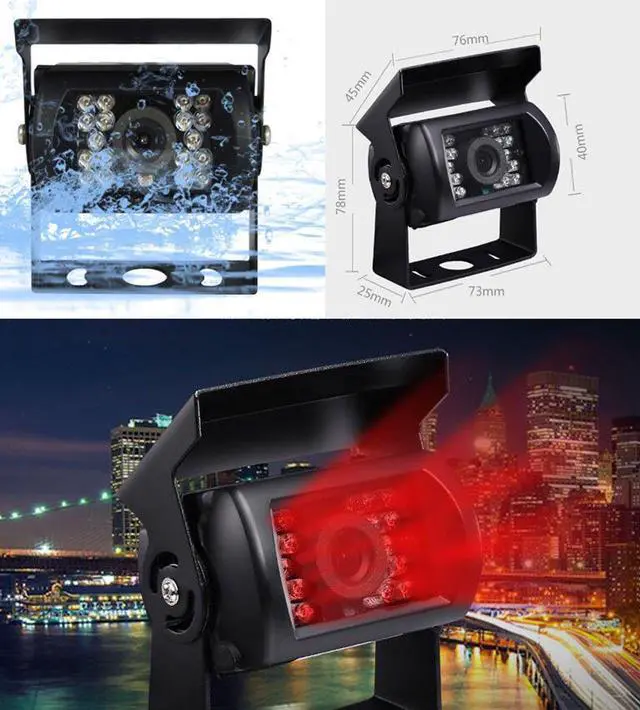

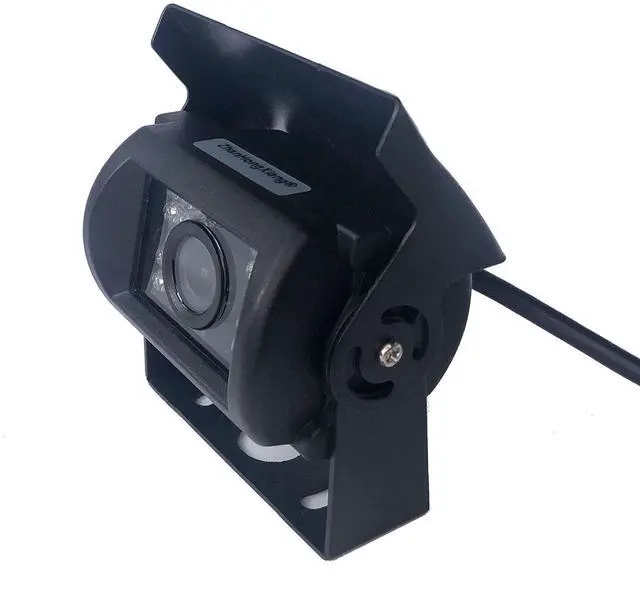

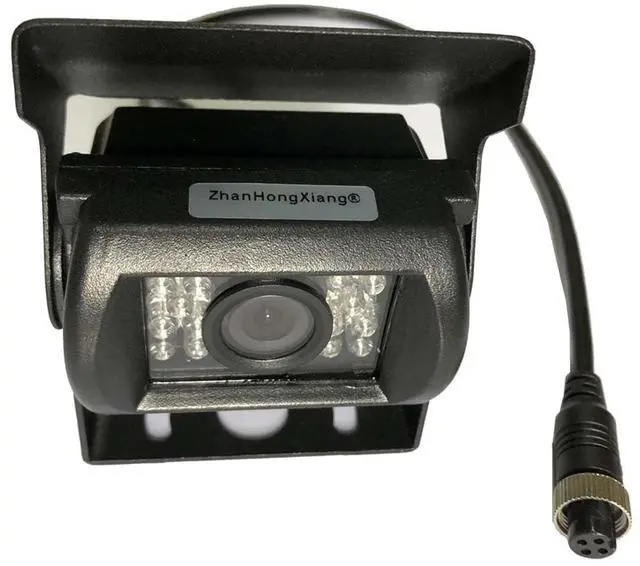

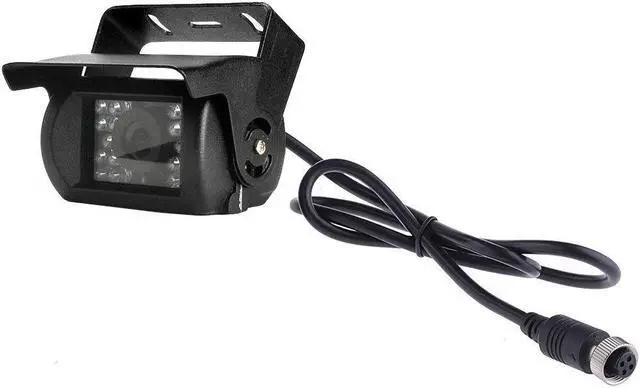

4 Pin Vehicle Backup Camera,Rear View Camera,Car Reversing Camera for RV Camper Truck Pickup Bus Waterproof Shockproof Night Vision Wide View Angle 12V 24V

* Waterproof IP 68, Can be used both in car and home
* CMOS 7440 Mirror image sensor with No Grid Lines
* 700 TV Line
* 4Pin Connector for Water Proof / Shock Proof Rear View reverse Camera
* Includes 18 IR LED, support 10-15ft night vision
* Build with 2.8 mm len 130°wide view angle
* Applicable to variety of Vehicles: Car, BUS, Truck, RV, Motorhome, camper 5th Pickup Boat Tractor Trailer Heavy Duty etc
* Can help avoid incidents and accidents abrasion well
* Easy to install

Specification:

Image Sensor: CMOS 7440 Mirror image no Grid Lines
Backup Camera signal: CVBS
Horizontal Resolution: 700 TVL
Minimum Illumination: 0Lux
Number of pixels: 720 (H) *586 (V)
Lens: 2.8 mm
Diagonal Viewing Angle: 130 degree
Signal to noise ratio: >48db (AGC OFF)
TV System: NTSC for US CA. PAL for UK EU, other country please contact us before purchasing
Scan frequency: 50Hz-60Hz
Electronic Shutter: 1/60 ~ 1/15, 000sec
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision: Yes
Synchronous System: International Synchronization
work Temperature: -20°C~+60°C
Waterproof: IP 68
Housing Material: Iron/Aluminum
Video Output: 4 Pin Connetor 1.0V p-p. 1.5.
Power: DC 12V-24V
Current Consumption: Less than 50MA
Camera comes with female connector

Package Includes:

1* 4 Pin IR Car Back up Reverse Camera

important
Please check your rear view monitor before purchasing
If your monitor is only support AHD signal, but not support analog signal, The camera will not work.
We have the AHD 1080P backup camera, please check this
ASIN: B0CR3QBKQS
