$171.99
Meet Your Seller

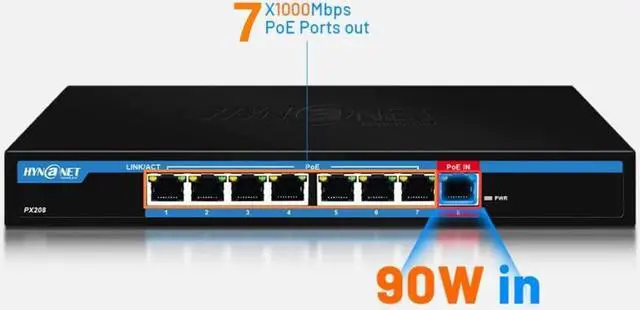

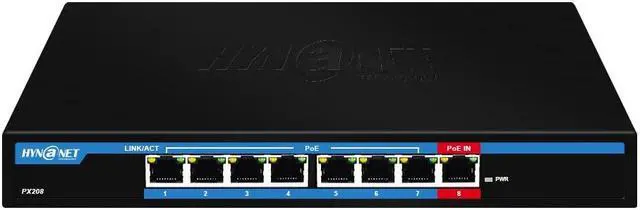

PX208 8 Port Gigabit PoE Extender 1 Port PoE IEEE802.3BT 90W Input 7 Port PoE IEEE802.3at/af Output,Plug&Play,Support Wallmount
- 1 port support IEEE802.3bt/at/af PoE input, Max 90W.
- 7 ports support IEEE802.3at/af PoE output, Max 30W per port.

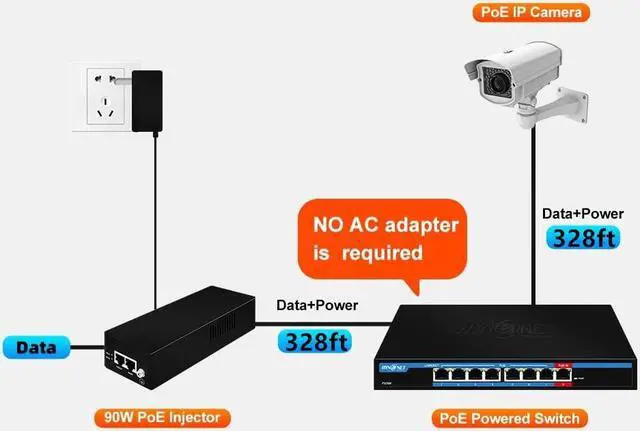

- Extends the range of Power and Data an additional 328ft.
- 8 x RJ45 Port support 10/100/1000Mbps.
- No additional power supply is required,Plug and Play,Support wallmount.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item PoE Input Port 1 x 10/100/1000Base-T RJ45 port.
PoE Output Port 7 x 10/100/1000Base-T RJ45 ports.
PoE Input Power 50~57VDC, Up to 90W.
PoE Output Power 44~57VDC, Up to 30W per port.

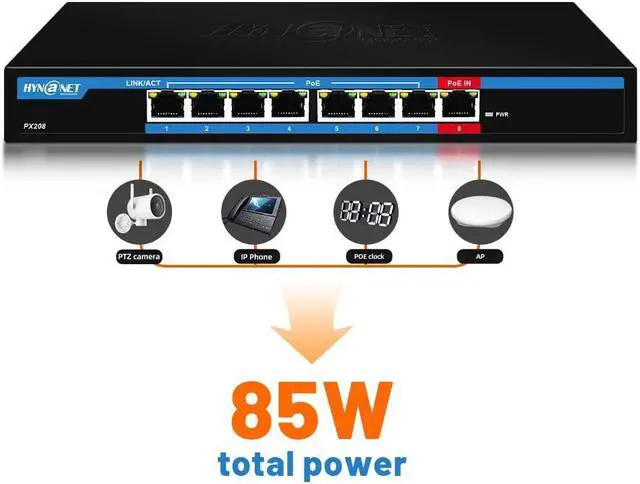

PoE Power Budget 85W IEEE 802.3 bt Ultra.
PoE Input Pin Assignment 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+).
PoE Output Pin Assignment 1/2 (-), 3/6 (+).
Indicators LED indicators are located on the RJ45 connector.
Power indicator: PoE enabled.
Network indicator: Link/Act.
Network cables Shielded category 5 (or higher).
Forwarding Rate 10/100/1000Mbps.
Traffic control IEEE 802.3 x full-duplex flow control.
Operating Temperature: 0 to 40.
Storage Temperature: -20 to 70.
Relative Humidity: Maximum 95%.
Regulatory Compliance IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 bt (Ultra PoE).
PoE Output Port 7 x 10/100/1000Base-T RJ45 ports.
PoE Input Power 50~57VDC, Up to 90W.
PoE Output Power 44~57VDC, Up to 30W per port.
PoE Power Budget 85W IEEE 802.3 bt Ultra.
PoE Input Pin Assignment 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+).
PoE Output Pin Assignment 1/2 (-), 3/6 (+).
Indicators LED indicators are located on the RJ45 connector.
Power indicator: PoE enabled.
Network indicator: Link/Act.
Network cables Shielded category 5 (or higher).
Forwarding Rate 10/100/1000Mbps.
Traffic control IEEE 802.3 x full-duplex flow control.
Operating Temperature: 0 to 40.
Storage Temperature: -20 to 70.
Relative Humidity: Maximum 95%.
Regulatory Compliance IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 bt (Ultra PoE).
