PoE Injector - Industrial Gigabit PoE+ Injector IEEE802.3 at 30W Hardened POE Adapter with 12-48V DC Input DIN- Rail, Wall Mount

Descriptions:

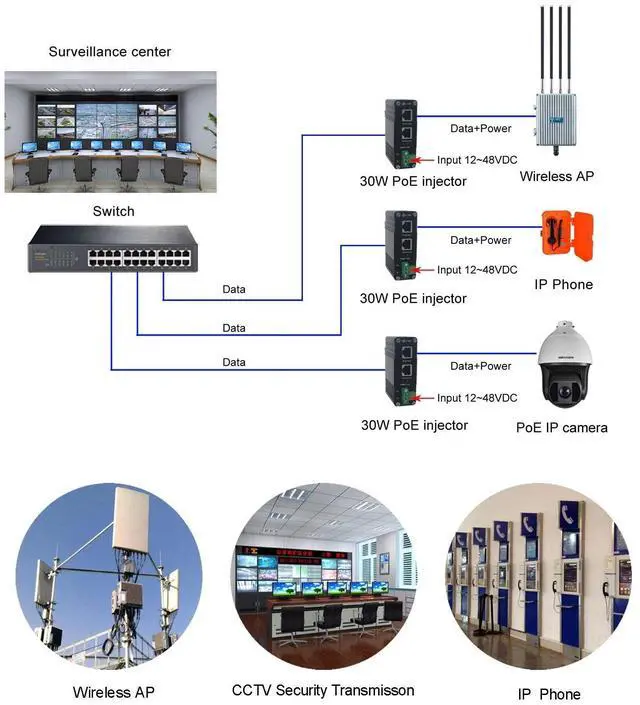

The Elenzk EK-001-30W is a Hardened Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-TX and are compliant with IEEE 802.3 ab. The PoE Out port compliant with IEEE 802.3 af/at.
EK-001-30W POE adapter provides an integrated power solution with 12~48VDC wide range voltage input.

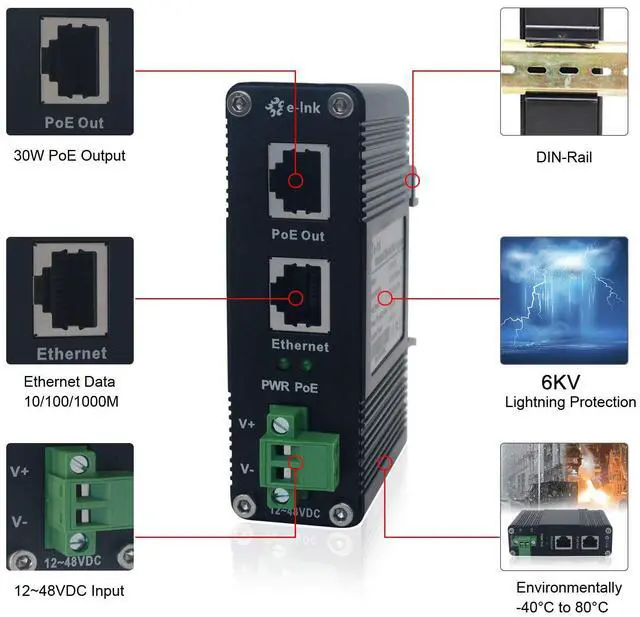

Features:
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power);
-- Support IEEE 802.3 at Power over Ethernet(PoE+) Power Sourcing Equipment;
-- Support 10/100/1000Base-TX;
-- Power Pin Assignment: 4/5(+), 7/8(-);
-- Support DIN-Rail & Wall-Mount installation;
-- Extensive LED indicators for PoE diagnostics;

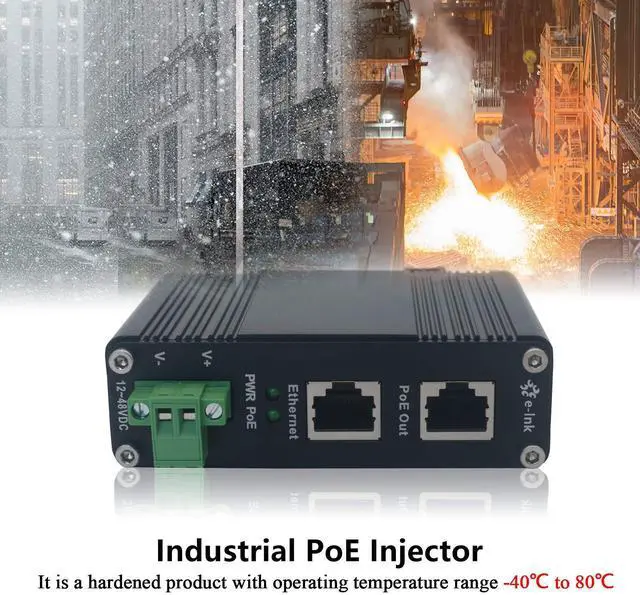

-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;
-- Dimensions (WxDxH): 95*70*30 mm ( 3.74 * 2.76 * 1.18 inches);
-- Weight: 0.25K g ( 0.55I b);
-- Casing: Aluminum Case;
-- Warranty: 5-Year Warranty.
Package:
1 * Elenzk-INJ301 30W PoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
1 * paper packaging box
Note:
Power Options The Power Supply for POE injector is to be purchased separately.
