XICOOLEE RS485 to RJ45 Ethernet Module, Rail Guide RS485 Converter Module, Support Rail-Mount/Modbus Gateway
- Small size: relative to the ordinary serial port server, the width is small, does not take up much space.

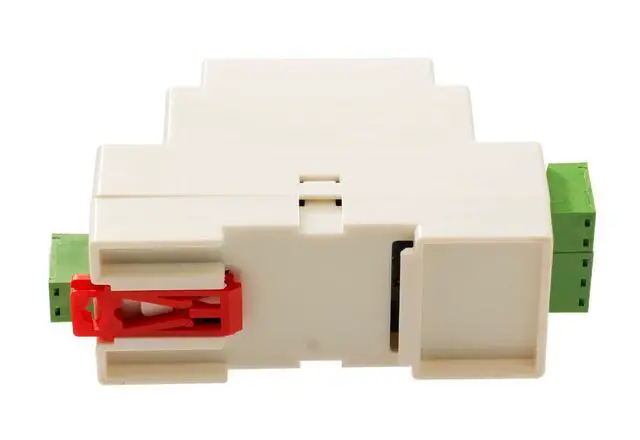

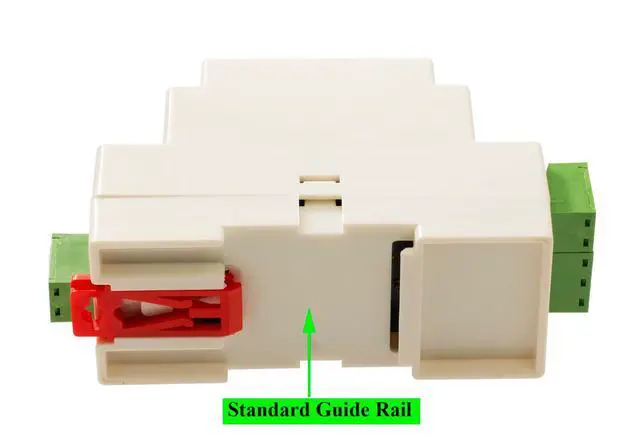

- Standard guide rail design: suitable for internal installation of cabinet in industrial field.
- Terminal type power supply, 924V wide voltage input, with anti-opposite power connection protection.
- Support TCP server side, TCP client, UDP mode, UDP multicast.

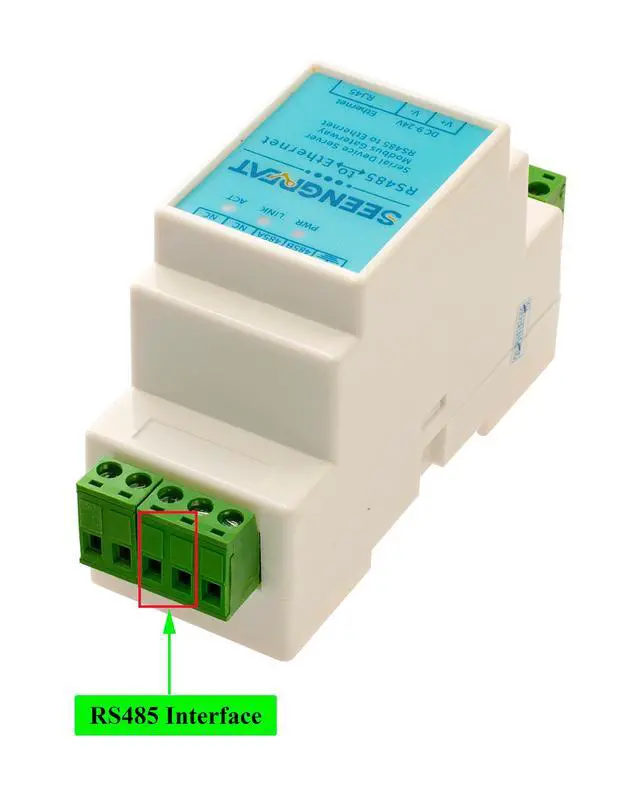

- Terminal RS485 interface, support 32 slave devices. Baud rate support 300115200bps. The data bit supports 5~9 bits, and the parity can be none Checksum, odd checksum, parity, markup, spaces these five ways.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

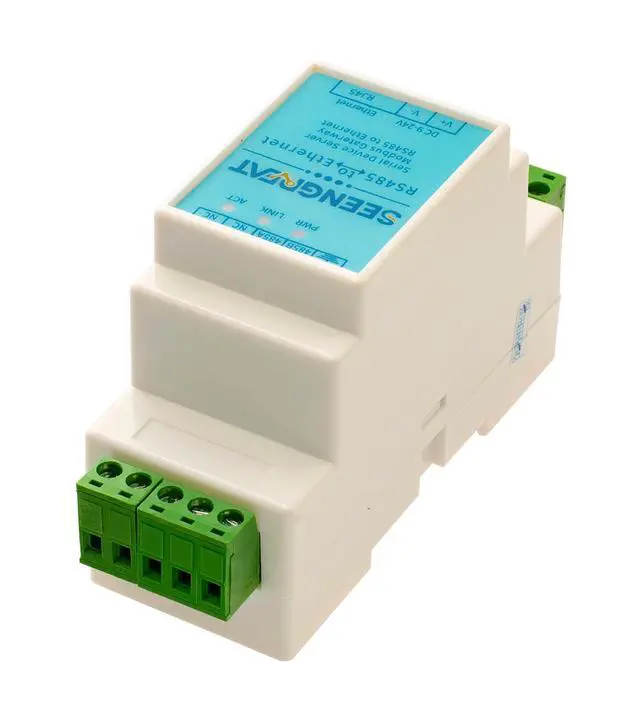

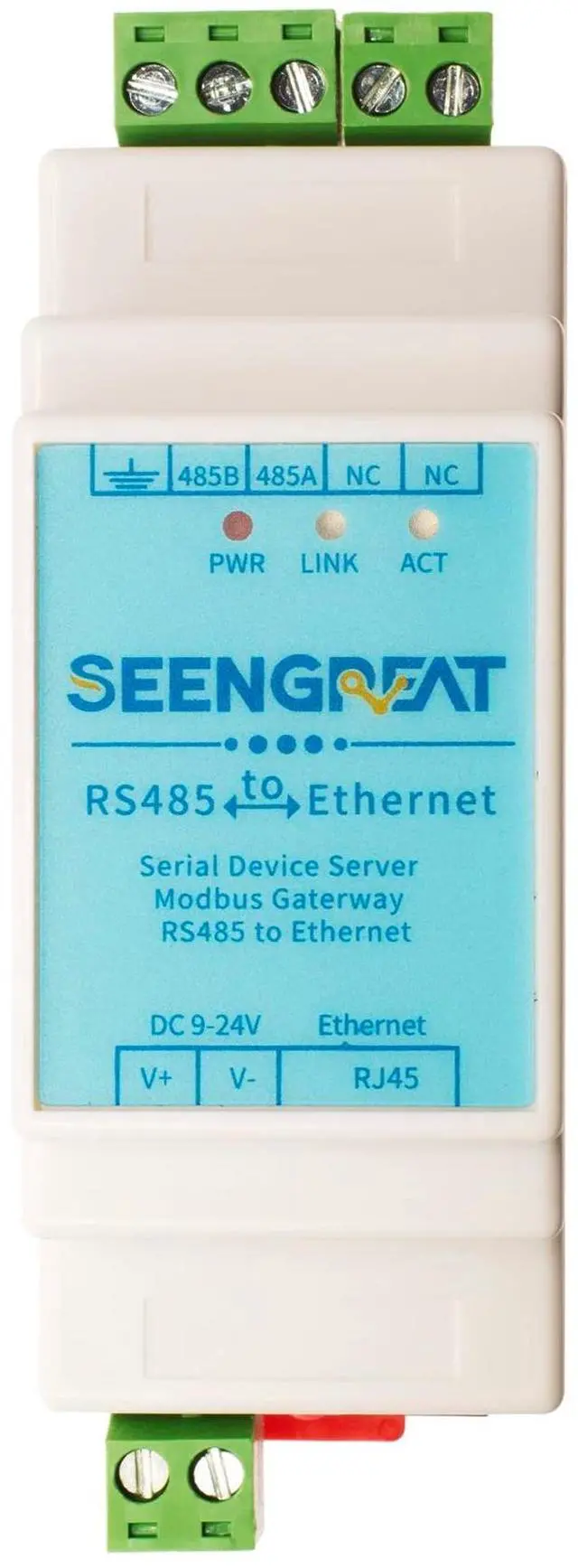

OverviewRS485 TO ETH RAIL is a kind of RS485 device collector/IoT gateway specifically designed for industrial environments, which is multi-functional, such as integrating serial server, Modbus gateway, MQTT gateway, RS485 to JSON. It features an RS485 interface and an Ethernet interface. It uses the guide-way type installation way, which is small and easy to install. Terminal type power supply access, 9~24V wide voltage input. Since there is only an RS485 interface, the RS232 interface, which is not commonly used on industrial instruments, is canceled, saving cost and volume, and is low-cost and higher performance ration compared with ordinary products.
SpecificationsCommunication Interface: Terminal,
Network PortPower Supply: TerminalMaximum
Size: L W H = 10.6 cm 3.6 cm 5.9 cmEthernet: RJ45 interface, 2KV
surge protectionSerial:
RS4851: RXD, TXD, GND
Baud Rate: 300~115200bpsData
Bits:
5~9Parity: None, Odd Check, Even Check, Mark, SpaceFlow
Control:
NoneProtocol: ETHERNETIPTCPUDPHTTPARPICMPDHCPDNS
Setting Method: VirCOM, WEB Browse,
Device Management LibraryCommunication Method: TCP/IP direct communicate, Virtual
SerialWork Mode: TCP Server, TCP Clientcoexisting with TCP serer), UDP, UDP multicastPower
Voltage: 9~24V
DCRunning Temperature: -40~85Package
contents: RS485
TO ETH x1Note: Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply. Please feel free to contact us via message if you have any problem.
SpecificationsCommunication Interface: Terminal,
Network PortPower Supply: TerminalMaximum
Size: L W H = 10.6 cm 3.6 cm 5.9 cmEthernet: RJ45 interface, 2KV
surge protectionSerial:
RS4851: RXD, TXD, GND
Baud Rate: 300~115200bpsData
Bits:
5~9Parity: None, Odd Check, Even Check, Mark, SpaceFlow
Control:
NoneProtocol: ETHERNETIPTCPUDPHTTPARPICMPDHCPDNS
Setting Method: VirCOM, WEB Browse,
Device Management LibraryCommunication Method: TCP/IP direct communicate, Virtual
SerialWork Mode: TCP Server, TCP Clientcoexisting with TCP serer), UDP, UDP multicastPower
Voltage: 9~24V
DCRunning Temperature: -40~85Package
contents: RS485
TO ETH x1Note: Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply. Please feel free to contact us via message if you have any problem.
