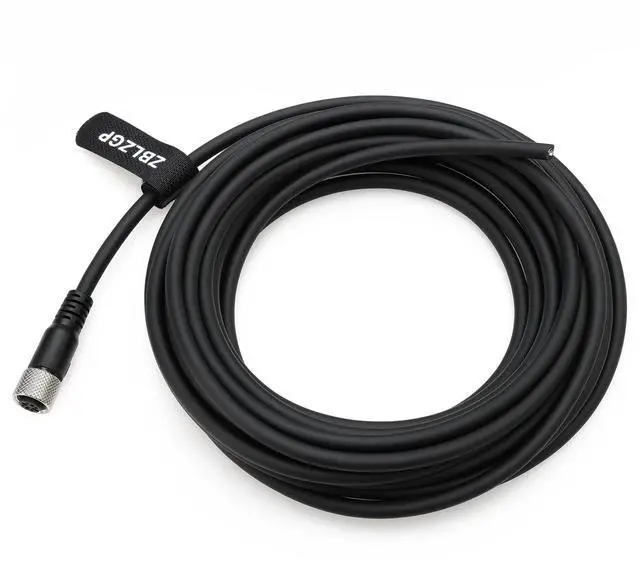

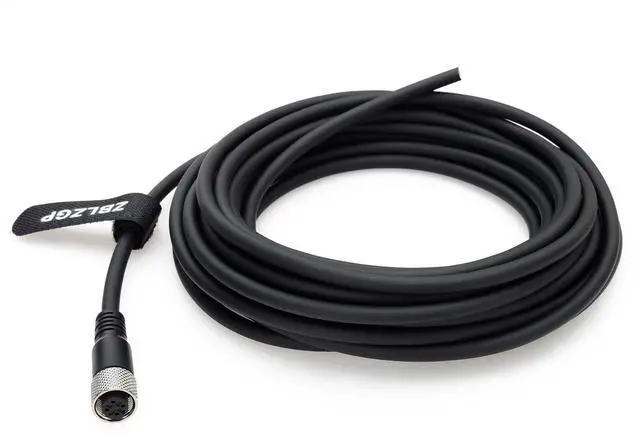

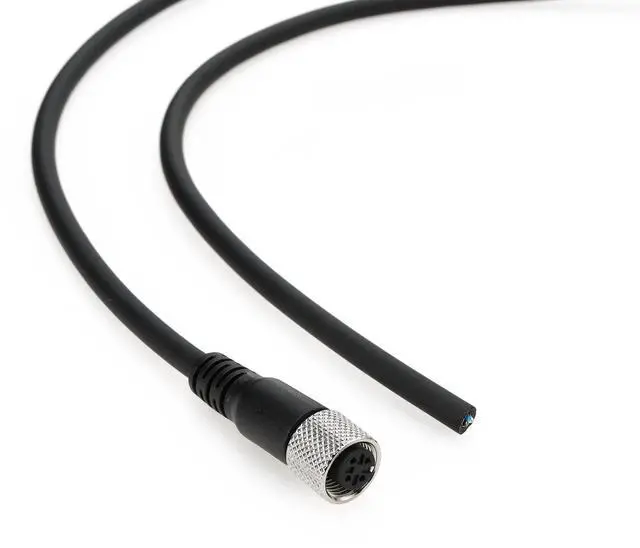

ZBLZGP M12 Actuator Sensor Signal Cable 4 Pin Female A-Coded Electrical Cable to Bare Wire for Industrial Automation Control,Fieldbus Module,Device Network 5M/16.4FT
- Reliable and Precise ConnectionThis M12 A-coded 4 pin female open cable features A-coding, which is specifically designed for sensor and actuator applications in industrial automation. The coding ensures accurate mating, preventing incorrect connections and reducing the risk of connection failures. It provides a stable and reliable connection for seamless data and power transmission.
- Durable BuildConstructed with high quality materials, this cable can withstand harsh industrial settings. It has a high level of protection against dust and water, meeting or exceeding IP67 standards. The robust design can endure mechanical stress, making it suitable for use in challenging environments where reliability is crucial.
- Flexible InstallationThe female open design offers great flexibility in installation. The open - end cable allows you to customize the length and termination according to your project needs. The cable can be easily routed in tight spaces and around obstacles, thanks to its
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
M12 Series Cables Robust Interconnect Solutions for Demanding EnvironmentsEngineered for industrial automation, our M12 series cables deliver reliable performance in harsh conditions. These circular connectors feature threaded couplings that maintain secure connections even in high-vibration environments, making them ideal for factory automation, process control, and heavy machinery applications.
Key Features: Industrial durability Zinc alloy connectors with IP67/IP68 ratings withstand dust, moisture, and chemicalsComprehensive pin options Available in 2-pin to 17-pin configurations for diverse applicationsPremium shielding Foil + braid shielding (S-coded) ensures EMI/RFI protectionFlexible cabling PUR or PVC jackets available with 7x 0.25 mm stranded conductorsSecure connections 360 shielding contact and screw-locking mechanismProduct
Series

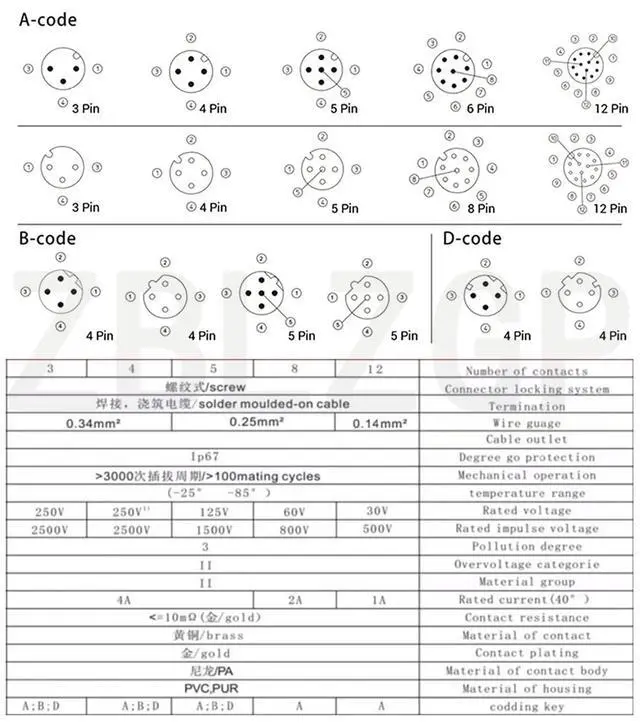

M12 cable range includes: Straight and right-angle connector optionsMale-to-male, male-to-female, and female-to-female configurationsField-attachable and molded cable versionsX-coded (10G Ethernet), D-coded (100M Ethernet), and A-coded (sensors) variantsStandard lengths from 0.5 m to 20mSpecifications: Voltage
rating: 30V AC/DC (signal), 250V AC/DC (power)
Current rating: 4A (signal), 12A (power)
Temperature range: -40C to +85C (PUR), -25C to +70C (PVC)
Contact resistance: 10mInsulation
resistance: 100MMating
cycles: 100
cyclesCable diameter: 4.5 mm to 8.2 mm (varies by configuration)
Key Features: Industrial durability Zinc alloy connectors with IP67/IP68 ratings withstand dust, moisture, and chemicalsComprehensive pin options Available in 2-pin to 17-pin configurations for diverse applicationsPremium shielding Foil + braid shielding (S-coded) ensures EMI/RFI protectionFlexible cabling PUR or PVC jackets available with 7x 0.25 mm stranded conductorsSecure connections 360 shielding contact and screw-locking mechanismProduct
Series
Details
: OurM12 cable range includes: Straight and right-angle connector optionsMale-to-male, male-to-female, and female-to-female configurationsField-attachable and molded cable versionsX-coded (10G Ethernet), D-coded (100M Ethernet), and A-coded (sensors) variantsStandard lengths from 0.5 m to 20mSpecifications: Voltage
rating: 30V AC/DC (signal), 250V AC/DC (power)
Current rating: 4A (signal), 12A (power)
Temperature range: -40C to +85C (PUR), -25C to +70C (PVC)
Contact resistance: 10mInsulation
resistance: 100MMating
cycles: 100
cyclesCable diameter: 4.5 mm to 8.2 mm (varies by configuration)
