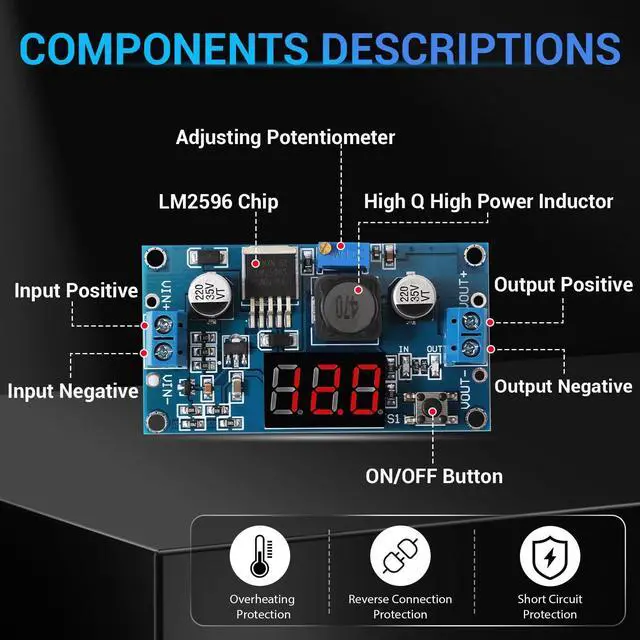

DROK 20pcs LED Display LM2596 Buck Converter - DC to DC Buck Converter Adjustable Voltage Regulator 4-40V to 1.25-37V
- Robust Protection Built-in safeguards include reverse connection protection, overheating protection, and short-circuit protection provide stable and reliable DC-DC step-down conversion.

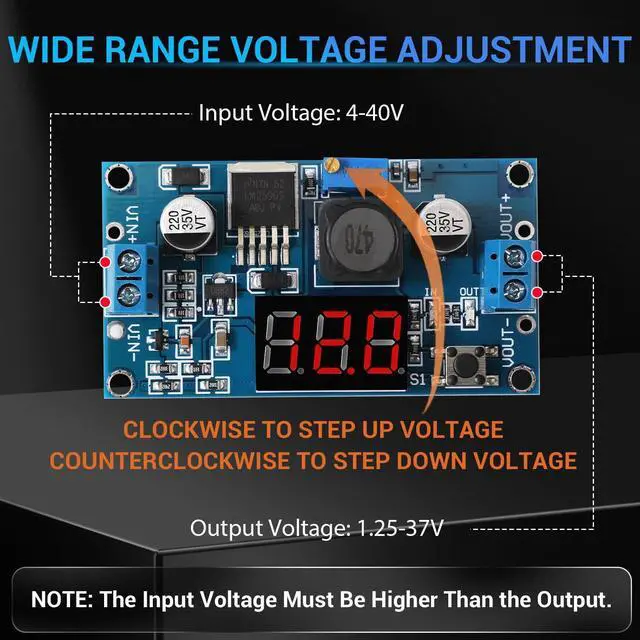

- DC Voltage Regulator Adjustable Turn the potentiometer counterclockwise with a mini screwdriver and to step down output voltage, clockwise to step up. Please make sure the input voltage is at least 1.5V higher than output voltage to ensure stable output.
- Precision Calibration Conserve power by turning off the display (long-press 1-4s); reactivate instantly with a short press. Achieve higher accuracy (0.5V adjustable range) via advanced calibration mode (long-press >4s) for both input and output voltages independently. Settings are saved permanently.
- Dual Voltage Monitoring & Display Features a built-in voltmeter with 0.1V accuracy (4-40V range). Note: Voltmeter activates only when input voltage exceeds 4V. Clearly indicates input (IN) or output (OUT) voltage via LED lights and digital display;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

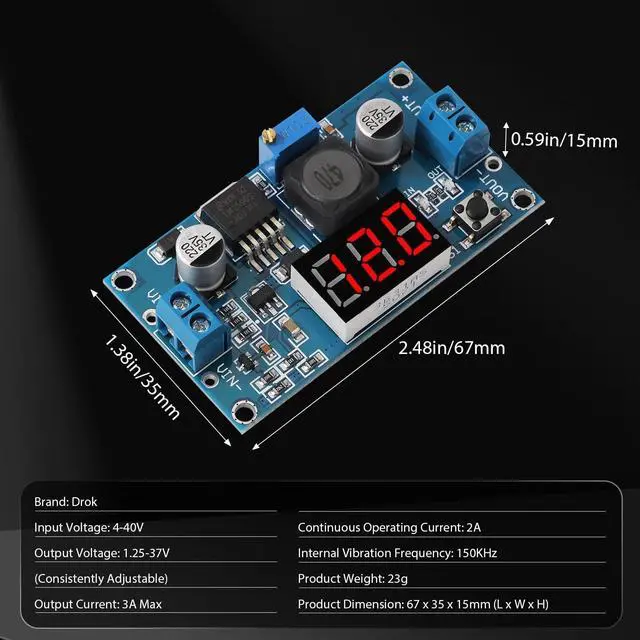

Parameters: Input
voltage: 4-40VOutput
voltage: 1.25
-37VOutput current: 2A rated current and 3A
MaxInternal vibration frequency: 150KHzAdjustable
buck converter: Turn the potentiometer counterclockwise with a mini screwdriver and to step down output voltage, clockwise to step up.

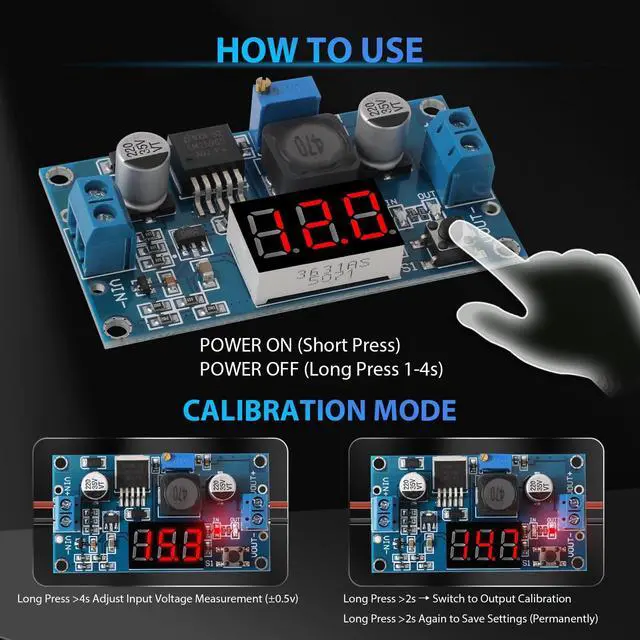

Calibration Mode (Long-press >4s): Adjust input voltage measurement ( 0.5V ) while IN LED is lit. Long-press >2s switch to output calibration (OUT LED lit). Long-press >2s again to save settings (stored permanently).
Power Off (Long-press 1-4s): Turns off the voltmeter. Short-press to power back on.
Protection: Reverse Connection ProtectionOverheating ProtectionShort Circuit ProtectionNote: 1. Please add heatsink when the output current is over 2A or output power is over 15W. 2. Please make sure the input voltage is at least 1.5V higher than output voltage to ensure stable output.

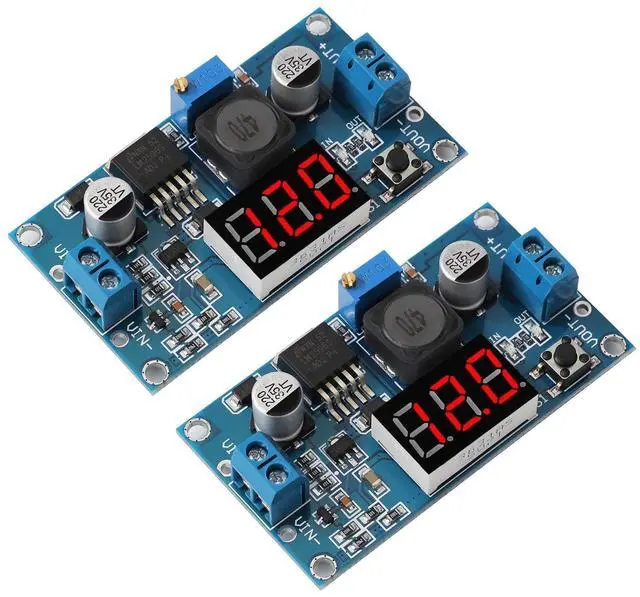

Package includes: 20 x LED display LM2596 buck converter
voltage: 4-40VOutput
voltage: 1.25
-37VOutput current: 2A rated current and 3A
MaxInternal vibration frequency: 150KHzAdjustable
buck converter: Turn the potentiometer counterclockwise with a mini screwdriver and to step down output voltage, clockwise to step up.
Calibration Mode (Long-press >4s): Adjust input voltage measurement ( 0.5V ) while IN LED is lit. Long-press >2s switch to output calibration (OUT LED lit). Long-press >2s again to save settings (stored permanently).
Power Off (Long-press 1-4s): Turns off the voltmeter. Short-press to power back on.
Protection: Reverse Connection ProtectionOverheating ProtectionShort Circuit ProtectionNote: 1. Please add heatsink when the output current is over 2A or output power is over 15W. 2. Please make sure the input voltage is at least 1.5V higher than output voltage to ensure stable output.
Package includes: 20 x LED display LM2596 buck converter
