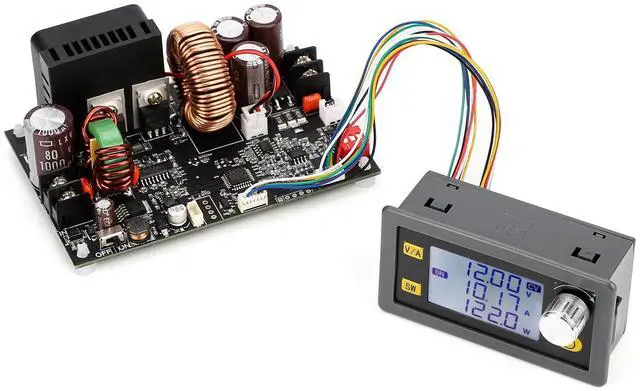

DROK CNC DC Buck Converter with Meter, 6-70V to 0-60V 20A 1200W, DC 5V 9V 12V 24V 36V 48V 60V Fixed Output Voltage, Adjustable Power Supply Voltage Regulator Step Down Module
- Parameters --- Input Voltage is 6-70V; Output Voltage is 0-60V; Output Current is 0-20A; Output Power 0-1200W. Fixed output voltage can be set: 5V/9V/12V/24V/36V/48V/60V.
- Low Ripple Output --- The materials are solid and the input common mode inductor greatly reduces the influence of the input power supply ripple and achieves low ripple output.
- Cooling Fan --- This adjustable power supply converter is equipped with a temperature-controlled cooling fan with large heat sink which can keep it cool when it's too hot.

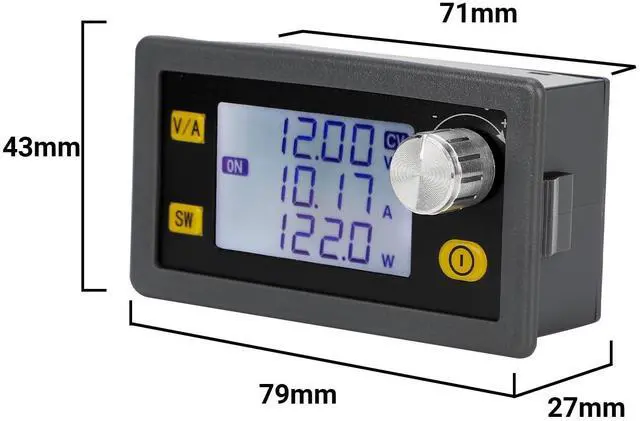

- LCD Display --- The module status reader is designed with LCD color screen, clear and convenient.
- Protection --- With External Temperature Protection, Input Over Voltage Protection, Input Under Voltage Protection, Output Over Voltage Protection, Output Over Current Protection, Output Over Power Protection, Over Temperature Protection, Timeout Protection, Over Capacity Protection and Over Energy Protection. This buck converter has totally one-year long period warran
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CNC DC 6V-70V to 0V-60V Adjustable Power Supply Regulator Step-Down ModuleParameters: Input
Voltage: 6V-70VOutput
Voltage: 0-60VOutput
Current: 0-20AOutput
Power: 0-1200WInput
Protection: Over Voltage Protection (OVP) Under Voltage Protection (LVP)
Output Protection: Over Voltage Protection (OVP) Over Current Protection (OCP) Over Power Protection (OPP)
Input Voltage Measurement Resolution: 0.01VO utput Voltage Setting
Measurement Resolution: 0.01VC urrent Setting
Measurement Resolution: 0.01AI nput
Voltage Measurement Accuracy: 1% + 5 digitsOutput Voltage Setting and
Measurement Accuracy: 0.4 % + 1 digitOutput Current Setting and
Measurement Accuracy: 0.5 % + 3 digitsFan
Start-up Condition: Current>2A Power>50W Temperature>50C (122)

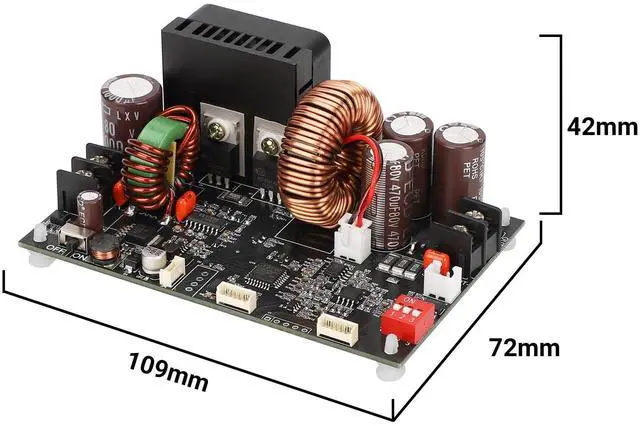

Base Board Size: 1097232mm/ 4.292. 831.26 inches
Voltage: 6V-70VOutput
Voltage: 0-60VOutput
Current: 0-20AOutput
Power: 0-1200WInput
Protection: Over Voltage Protection (OVP) Under Voltage Protection (LVP)
Output Protection: Over Voltage Protection (OVP) Over Current Protection (OCP) Over Power Protection (OPP)
Input Voltage Measurement Resolution: 0.01VO utput Voltage Setting
Measurement Resolution: 0.01VC urrent Setting
Measurement Resolution: 0.01AI nput
Voltage Measurement Accuracy: 1% + 5 digitsOutput Voltage Setting and
Measurement Accuracy: 0.4 % + 1 digitOutput Current Setting and
Measurement Accuracy: 0.5 % + 3 digitsFan
Start-up Condition: Current>2A Power>50W Temperature>50C (122)
Base Board Size: 1097232mm/ 4.292. 831.26 inches
