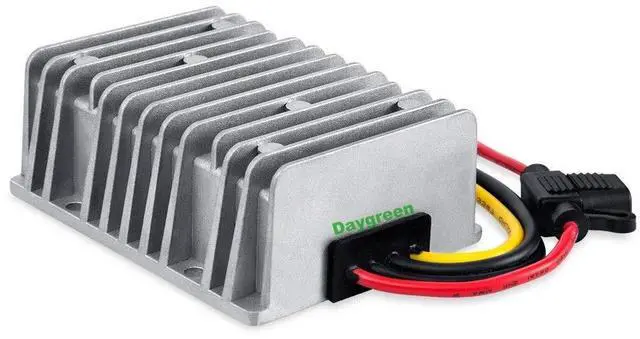

Daygreen 36V/48V to 12V 30A 360W DC-DC Buck Converter, Heavy Duty Step Down Voltage Regulator for Floor Cleaning Machines, Golf Cart, Industrial 12V Systems
- Stable Output Voltage: This product provides a stable output voltage of 12V for reliable performance.
- Wide Input Voltage Range: The device accepts a wide range of input voltages, allowing it to be used in various applications.
- High Efficiency: With a maximum efficiency of up to 95%, this product is designed to minimize energy waste and optimize power usage.
- Low Power Consumption: It has a low no-load consumption of less than 0.04A, ensuring minimal energy usage when not in active operation.
- Robust Protection: The product is fully sealed and rated IP68 to provide protection against water, dust, and vibration. Additionally, it features multiple protections like low voltage, output over voltage, overload, and over-temperature protection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to
BAT-Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Keep good air convection.
Daygreen P/N:
B30-3648-12AEfficiency: 95%Input
Voltage: 30-60V
DCOutput Voltage: 12VDC
Output Current: 30ANo-load
current: <
0.1VR ipple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures:
IP68Dimension: 100*80*39mmNet
Weight: 0.5 kgCase
Operating Temperature:
-40~85CCertificates: CE
RohsWarranty: 3
yearsMTBF: 100, 000
hoursApplication: 36V DC battery of vehicles as input power to 12VDC appliances as output load. QuestionsHow to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.7 = 14.28A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
BAT-Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Keep good air convection.
Daygreen P/N:
B30-3648-12AEfficiency: 95%Input
Voltage: 30-60V
DCOutput Voltage: 12VDC
Output Current: 30ANo-load
current: <
0.1VR ipple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures:
IP68Dimension: 100*80*39mmNet
Weight: 0.5 kgCase
Operating Temperature:
-40~85CCertificates: CE
RohsWarranty: 3
yearsMTBF: 100, 000
hoursApplication: 36V DC battery of vehicles as input power to 12VDC appliances as output load. QuestionsHow to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.7 = 14.28A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
