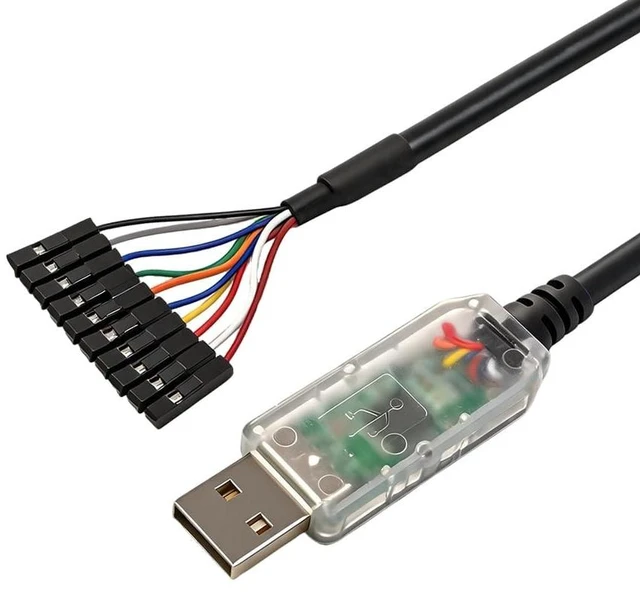

Retimer C232HM-DDHSL-0 USB to MPSSE Serial Cable(3.3V) FT232H Chip USB to JTAG/I2C/SPI Pitch 2.54MM 10P Headers Compatible with Windows 11 10 8 7 Linux MAC OS(0.5M)

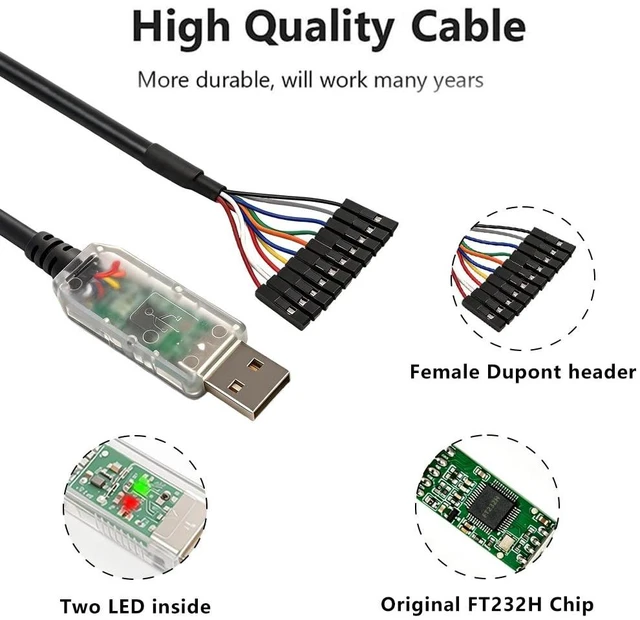

- Based on the single chip USB Hi-Speed FT232H device.USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
- The VCC power output signal (RED wire) is 3.3V. The source of 3.3V is the on-board regulator output, which is switched onto the power output signal.

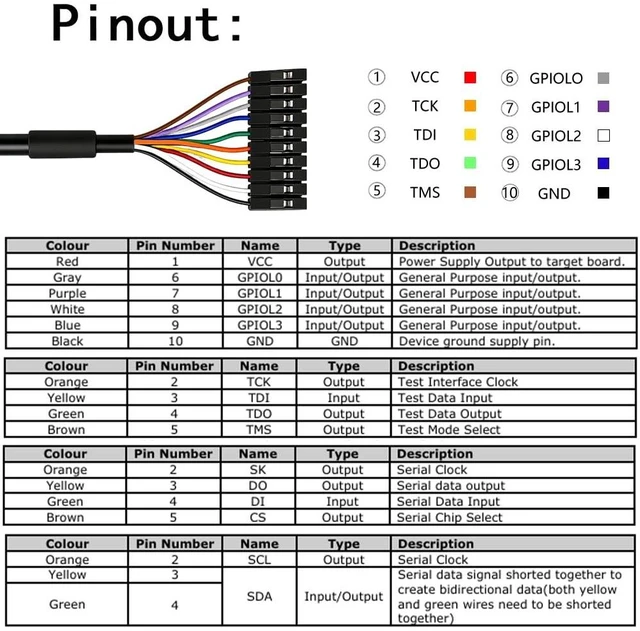

- Plug and Play ,10 way outputs provide VCC(Red), TCK(Orange), TD1(Yellow), TD0(Green), TMS(Brown)GPIOL0(Grey),GPIOL1(Purple),GPIOL2(White),GPIOL3(Blue),GND(Black)
- Asynchronous UART transfer data rate up to 12Mbaud,Fully assisted hardware or X-On / X-Off software handshaking,1kByte receive and transmit buffers for high data throughput.
- Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I2C,1kByte receive and transmit buffers for high data throughput,Transmit and receive LED drive signals.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Based on the single chip USB Hi-Speed FT232H device. USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible. ^^ The VCC power output signal (RED wire) is 3.3V. The source of 3.3V is the on-board regulator output, which is switched onto the power output signal. ^^ Plug and Play, 10 way outputs provide VCC (Red), TCK (Orange), TD1 (Yellow), TD0 (Green), TMS (Brown) GPIOL0 (Grey), GPIOL1 (Purple), GPIOL2 (White), GPIOL3 (Blue), GND (Black) ^^ Asynchronous UART transfer data rate up to 12Mbaud, Fully assisted hardware or X-On / X-Off software handshaking, 1kByte receive and transmit buffers for high data throughput.
^^ Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I2C, 1kByte receive and transmit buffers for high data throughput, Transmit and receive LED drive signals.
^^ Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I2C, 1kByte receive and transmit buffers for high data throughput, Transmit and receive LED drive signals.
