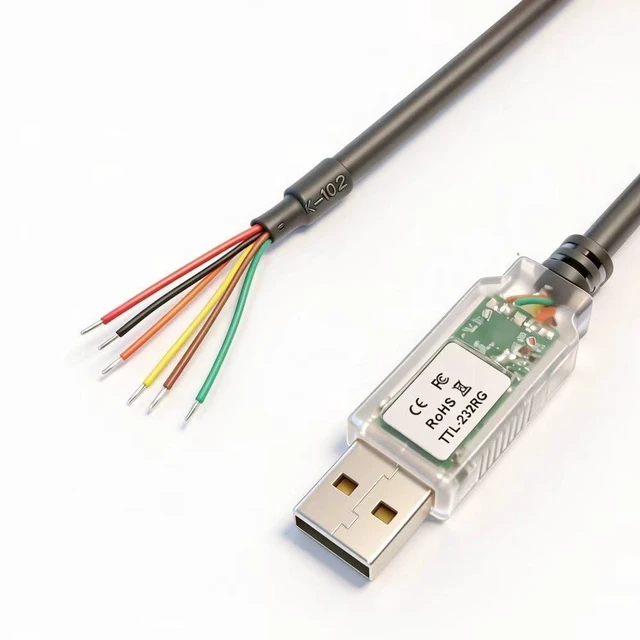

retimer TTL-232RG-VSW3V3-WE TTL to USB Serial Converter Original Cables USB to UART Cable Supports +3.3V TTL Level UART Signals Compatible Windows 11 10 8 7 Linux MAC OS(1.8M)

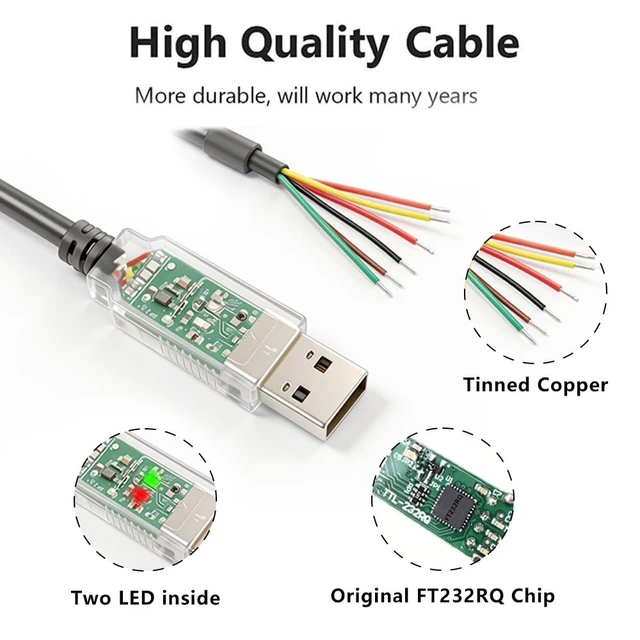

- TTL-232RG-VSW3V3-WE Converter Cable provides a USB to TTL Serial interface with 6Way,On board FT232RQ provides single chip USB to asynchronous serial data transfer interface.

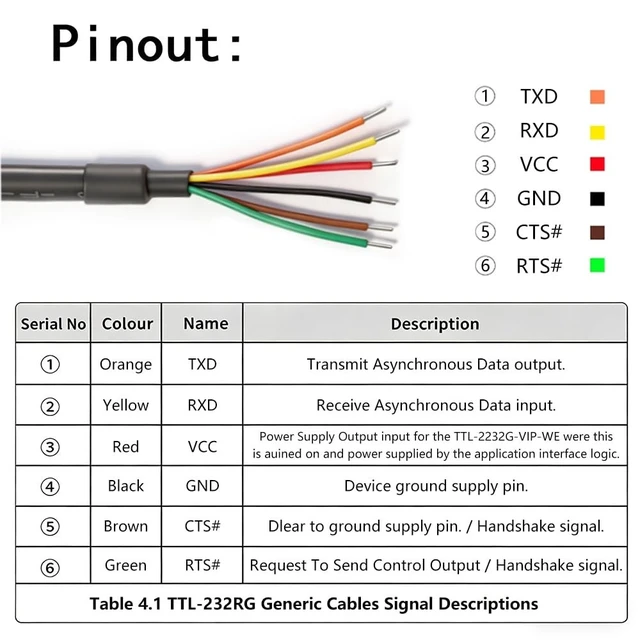

- The VCC power output signal (RED wire) is 3.3V. The source of 3.3V is on board 3.3V regulator output, which is switched onto the power output signal, which is switched onto the power output signal,6 way outputs provide TXD(Orange), RXD(Yellow), RTS(Green), CTS(Brown), VCC(Red)GND(Balck).
- Plug and Play,Data transfer rates from 300 baud to 3 Mbaud at TTL levels,Internal EEPROM with user writeable area.

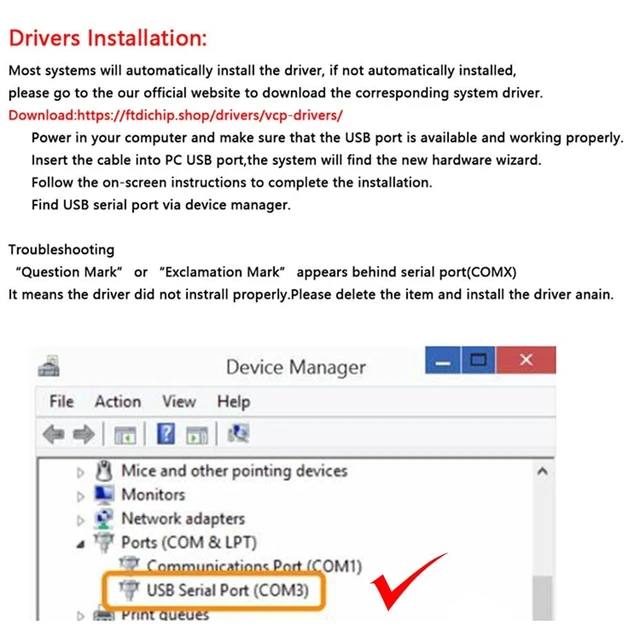

- FT232RQ VCP allow for communication as a standard emulated COM port and D2XX direct drivers provide DLL application programming interface.
- Cable length is 1.80m (6 feet),USB 2.0 Full Speed compatible,-40C to +85C operating temperature range.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description: 1. The TTL-232RG generic cables use FT232RQ USB to serial IC device. This section summarises the key features of the FT232RQ which apply to the TTL-232RG USB to serial TTL converter cables. 2. Internal EEPROM. The internal EEPROM in each cable is used to store USB Vendor ID (VID), Product ID (PID), device serial number, product description string and various other USB configuration descriptors. Each cable is supplied with the internal EEPROM pre-programmed as described in Appendix A. A user area of the internal EEPROM is available to system designers to allow storing additional data. The internal EEPROM descriptors can be programmed in circuit, over USB without any additional voltage requirement. It can be programmed using the utility software called FT_PROG3. Lower Operating and Suspend Current. The FT232RQ has a low 15mA operating supply current and a very low USB suspend current of approximately 70A. (Note that during suspend mode, the current drawn by application should not exceed 2.5 mA to remain USB compliant). 4. Low USB Bandwidth Consumption. The USB interface of the FT232RQ, and therefore the TTL-232RG cables has been designed to use as little as possible of the total USB bandwidth available from the USB host controller.
5. High Output Drive Option. The UART interface I/O pins on the TTL-232RG cables (RXD, TXD, RTS#, and CTS#) can be configured to use the FT232RQs high output drive option. This option allows the FT232RQ I/O pins to drive up to three times the standard signal drive level. This allows multiple devices to be driven, or devices that require greater signal drive strength to be interfaced to the cables. This option is enabled in the internal EEPROM. 6. UART Pin Signal Inversion. The sense of each of the eight UART signals can be individually inverted by configuring options in the internal EEPROM. For example, CTS# (active low) can be changed to CTS (active high), or TXD can be changed to TXD#. 7. Extended Operating Temperature Range - The TTL-232RG generic cables are capable of operating over an extended temperature range of -40 to +85 C thus allowing them to be used in automotive or industrial applications.
5. High Output Drive Option. The UART interface I/O pins on the TTL-232RG cables (RXD, TXD, RTS#, and CTS#) can be configured to use the FT232RQs high output drive option. This option allows the FT232RQ I/O pins to drive up to three times the standard signal drive level. This allows multiple devices to be driven, or devices that require greater signal drive strength to be interfaced to the cables. This option is enabled in the internal EEPROM. 6. UART Pin Signal Inversion. The sense of each of the eight UART signals can be individually inverted by configuring options in the internal EEPROM. For example, CTS# (active low) can be changed to CTS (active high), or TXD can be changed to TXD#. 7. Extended Operating Temperature Range - The TTL-232RG generic cables are capable of operating over an extended temperature range of -40 to +85 C thus allowing them to be used in automotive or industrial applications.
