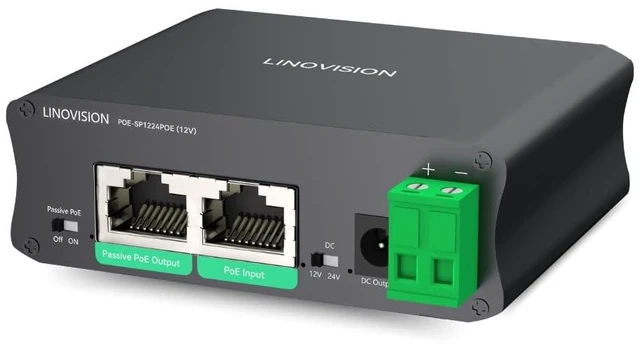

LINOVISION Industrial Gigabit 30W PoE Splitter, 12V DC & Passive PoE Output

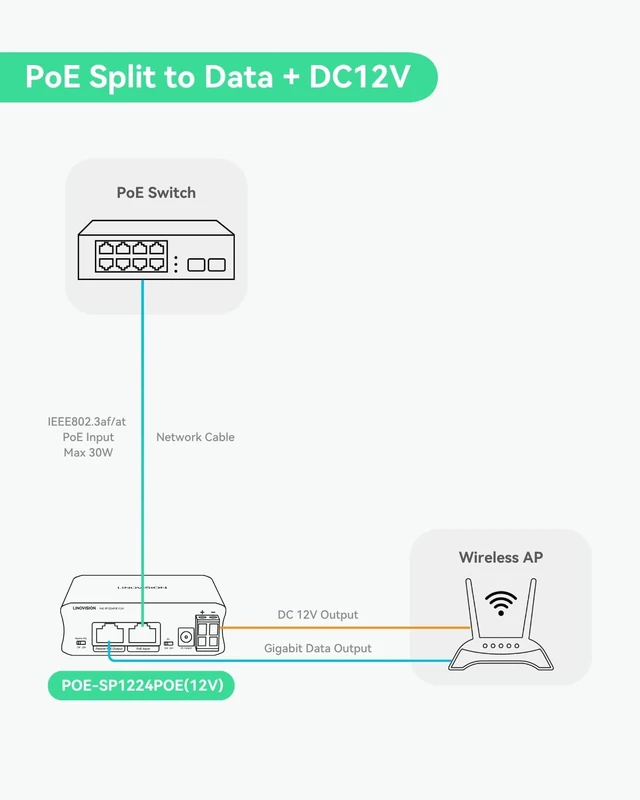

30W PoE Splitter - Split IEEE802.3af/at PoE to DC and Data Output (or Passive PoE).
DC12V Output - For Non-POE IP cameras, access reader terminals, Routers, etc.

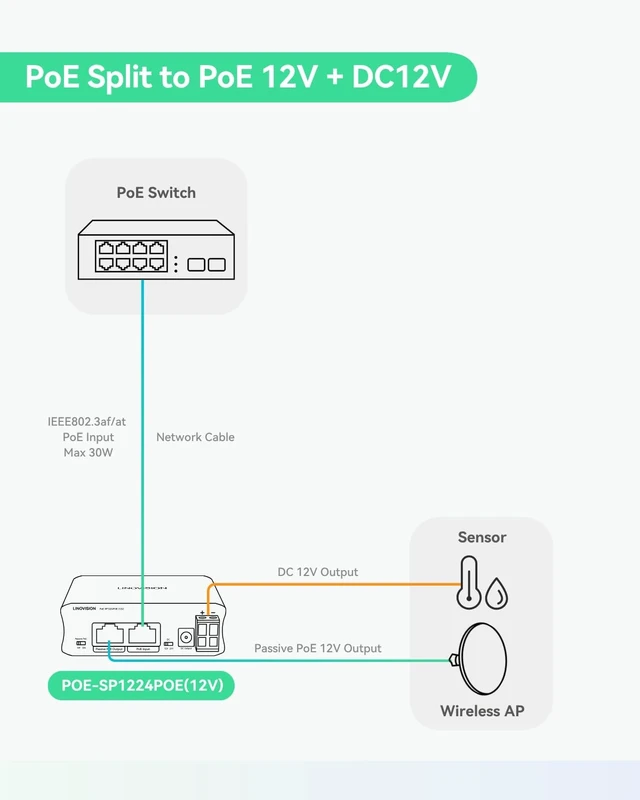

Optional Passive PoE Output - Provide forced Passive 12V PoE output for Wireless bridges, wireless AP, or other terminals. (Not recommended for regular devices).
Gigabit Speed - All ports support 10M/100M/1000Mbps transmission bandwith.

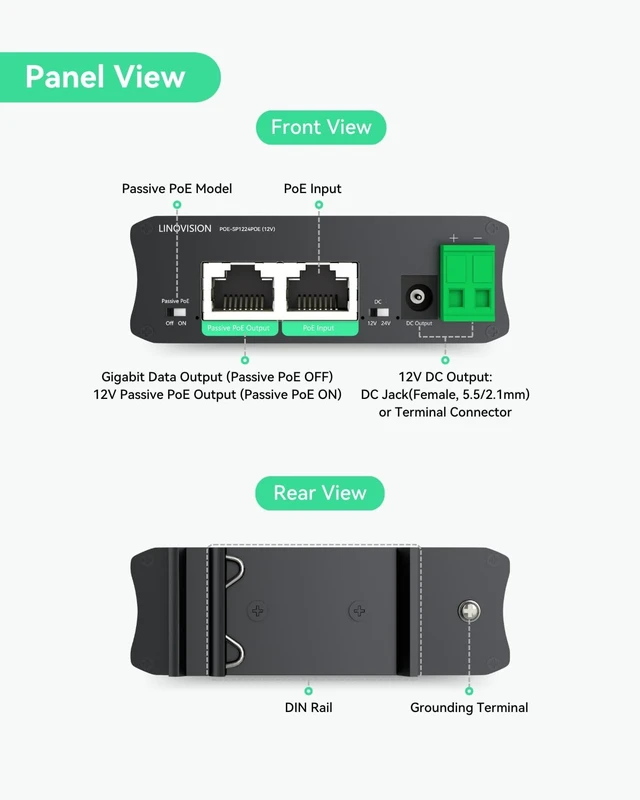

Compact Dimension - Full metal design, compact dimension 3.26'' x 2.09'' x 1.02''(82.7mm x 53mm x 25.8mm), width measures 2.72" (69mm) when including the DIN-rail mounting bracket and DC terminal block.
Note - This product is for DC12V and 12V Passive PoE applications only, 24V is NOT supported. Before use, please set the DC12V/24V DIP switch to the 12V position.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

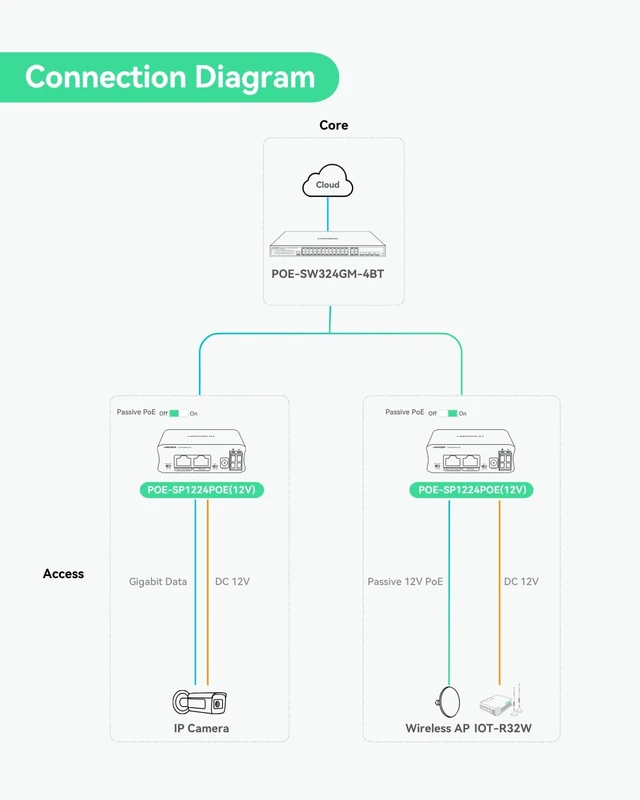

LINOVISION Industrial Gigabit 30W PoE Splitter with DC12V Output and 12V Passive PoE Output, Designed for Cameras and IoT Systems

Additional Information
First Listed on Newegg	September 23, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
