MGGi DC 12V-24V 15A 360W Voltage Booster, DC Boost Converter, Regulator Power Supply, Waterproof for Vehicle, Boat, Electric Bike
- Input Voltage: DC 12V to DC 24V 15A 360W - input voltage range DC 10-16V; output voltage: DC 24V(non-adjustable); output current: 15A(max.); output power 360W.
- High and stable conversion efficiency - synchronization rectification technology-multiple intelligent protection function. Die-cast aluminum shell, expoxy potting, cooling by free air convection. High conversion efficiency up to 96%. 100% full rated power and stable output voltage.
- 5 Safty Protections - Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operating, over 100,000 hours lifetime
- Waterproof and portable - with aluminum alloy shell, silicone gel package, IP68 waterproof rating, 100% waterproof , can work in rain; small and portable, easy to install
- Wide application - fits for car, truck, vehicle, boat, electric bike, bus, cmb, club cart, LED strip lights, display moniter screen of taxi, car radio audio device, LCD TV, DVD, IP came
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

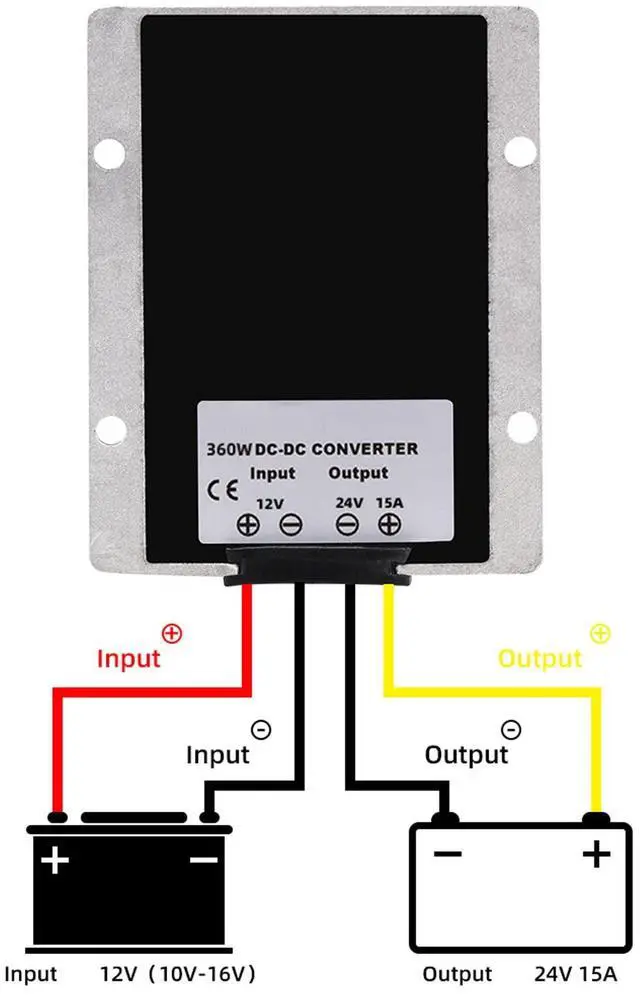

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to
BAT- Note: Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. Never charge the battery. Keep good air convection. Never reverse the polarity. Use the enough big cable to avoid the voltage drop.
2. Industry grade DC 12V to DC 24V 15A 360W step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by air convection; Waterproof level IP68 and anti-shock protection.
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5.
Certificates: CE/RoHS, 1 year, up to 100, 000 hours.
Input Rated Voltage: 12V DC
Input Voltage Range: 10V-16 DC
Output voltage: 24V DC
Output Current: 15 Amp
Output Rated Power: 360W
Efficiency: 97% (half load); 95% (full load)
Ripple Wave: 40Mv
Line Regulation: 0.2 %
Load Regulation: 0.2 %
Voltage Accuracy: 1.5 %
Enclosures: IP68 Case
Operating Temperature: -40 85C

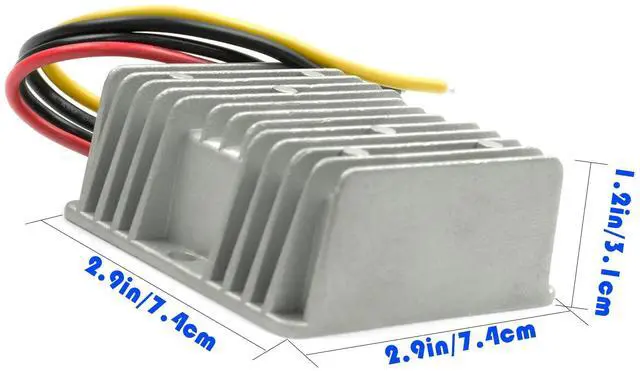

Dimensions (WxDxH): 2.9 '' x 2.9 '' x 1.2 '' / 7.4 x 7.4 x 3.1 cm Fixing
Hole Diameter: 5mm( 0.20 inch)
Net weight: 9.6 oz/272g
BAT- Note: Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. Never charge the battery. Keep good air convection. Never reverse the polarity. Use the enough big cable to avoid the voltage drop.
Specifications
: 1. 100% full power and stable current output, non-isolated module.2. Industry grade DC 12V to DC 24V 15A 360W step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by air convection; Waterproof level IP68 and anti-shock protection.
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5.
Certificates: CE/RoHS, 1 year, up to 100, 000 hours.
Input Rated Voltage: 12V DC
Input Voltage Range: 10V-16 DC
Output voltage: 24V DC
Output Current: 15 Amp
Output Rated Power: 360W
Efficiency: 97% (half load); 95% (full load)
Ripple Wave: 40Mv
Line Regulation: 0.2 %
Load Regulation: 0.2 %
Voltage Accuracy: 1.5 %
Enclosures: IP68 Case
Operating Temperature: -40 85C
Dimensions (WxDxH): 2.9 '' x 2.9 '' x 1.2 '' / 7.4 x 7.4 x 3.1 cm Fixing
Hole Diameter: 5mm( 0.20 inch)
Net weight: 9.6 oz/272g
