PC DIY Water Cooling Kit, 240mm Cooler CPUGPU Water Cooling Block with Pump & Reservoir, LED Fan Heat Sink Computer Water Cooling Connectors Kit

Specifications

:
1. 240mm black heat sink (with screw pack):
Appearance size: 27.5 * 11.8 * 3.2 cm
Straight mouth height: 2cm
Diameter of straight tube: about 9.5 mm
Number of waterways: 18
2.
LED fan:
Appearance size: 12 * 12cm
Power supply interface: large 4Pin + small 3Pin

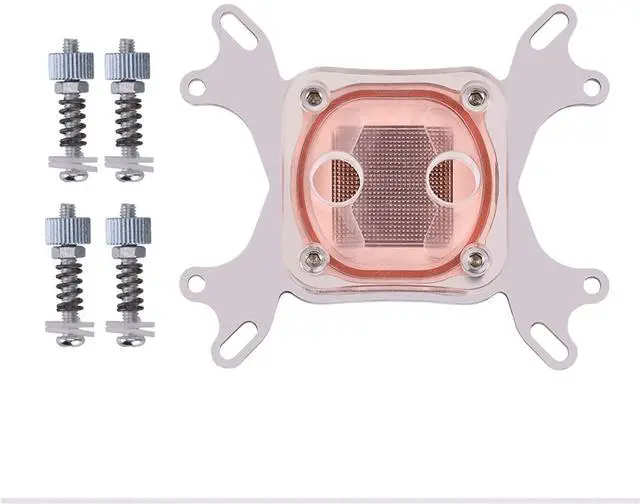

3. Universal CPU block (with 4 pcs screws):
Description: Universal for / Dual (For 775, 1150, 1155, 1156, 1366, )
(For: AM2, AM3, AM3 +)
Note: Do not support for AMD4CPU CPU block, bracket supports for mainstream hole installation.
Outside diameter: 12.9MM
Bottom size: 5 * 5cm, thickness 3mm
Material: Bottom: copper; Cover: transparent plexiglass

4. Universal GPU block
Material:
Bottom: copper; Cover: POM high temperature materials
Waterway: 0.8MM parallel waterway
Compatibility: Matches a fan with a distance of 53 mm to 61 mm
Supported tube: 9.5 mm ID / 12.7 mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter)

5. Cylindrical Water Reservoir (including plastic bracket * 2, metal bracket * 2, screw
pack * 1):
Water reservoir height: about 160mm
Water reservoir diameter: 5cm
Interface diameter: 12.9 mm

6.
Transparent hose:
Inner diameter: 8mm
Outer diameter: 12mm

7.
Pump (including shock pad):
Features: Waterproof, Stability, High quiet, long life
Interface diameter: 12.9 mm
Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM
Material: Acrylic
Pump head: 5 meters
Power supply interface: large 4Pin
Power: 9W
Current: 0.8A
Voltage: 12V
: 600L / H

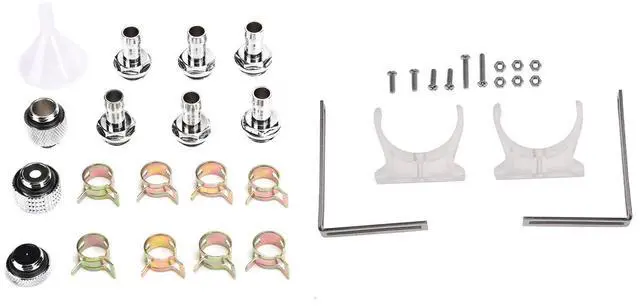

8. Water pipe joints & hose clamp & plug
