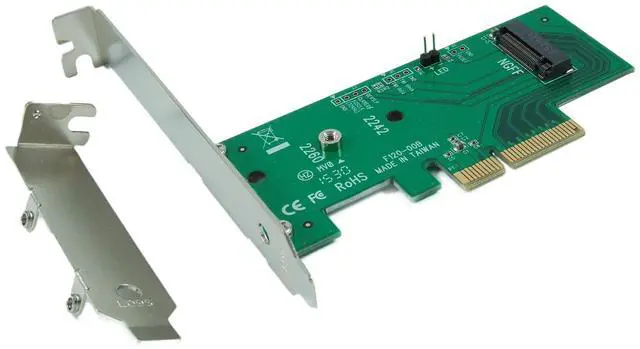

LyCOM DT-120 M.2 Interface Card and Adapter Accessory (PCIe, M.2, Low Profile, -40 80°C)

This PCIe 3.0 x4 Host Adapter for M. 2 NGFF PCIe SSD allows the M. 2 (PCIe) to be installed onto the standard PCI Express slot in the main board. It is designed to work only with 'M' key M. 2 PCIe SSD such as Samsung XP941 SSD. Not compatible with a 'B' key M. 2 PCIe x2 SSD or 'B' key M. 2 SATA SSD.
Features: o Convert M. 2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot o PCI Express 3.0 x4 Lane Host adapter o Supports PCIe Gen3 and PCIe Gen2 M. 2 NGFF 80mm, 60mm, 42mm SSD o M. 2 NGFF type 2280-D5-M connector on board o Movable M. 2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD o Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard o Supports dual-sided SSD module 1.5 mm component height on the top and bottom side o Compliant with 39Gbps PCI Express 3.0 o Pin header on board for drive LED connection o Low Profile PCIe Form Factor o Regular size PCIe bracket on board and Low Profile bracket included o Transparent to the operating system and no driver required o Supports any OS like Windows, Mac and Linux o
Supports industrial operating temperature range: -40 - 85 ºC o M. 2 PCIe SSD power from PCIe bus slot 3.3V o Fully RoHS compliant *** M. 2 SATA based SSD CANNOT work with this PCIe based Adapter
