ANMBEST 2PCS Thinner DB37 Solderless RS232 D-SUB Serial to 37-pin Port Terminal Female Adapter Connector Breakout Board with Case Long Bolts Tail Pipe

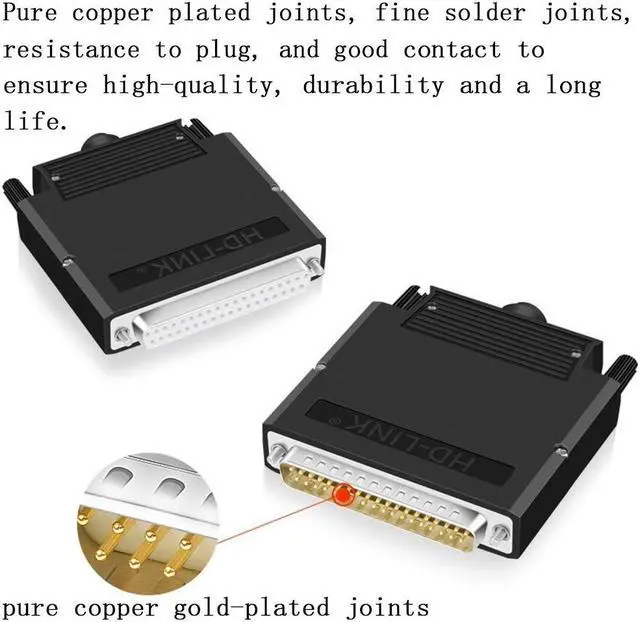

- HIGH QUALITY&DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.
- EASY TO USE: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.

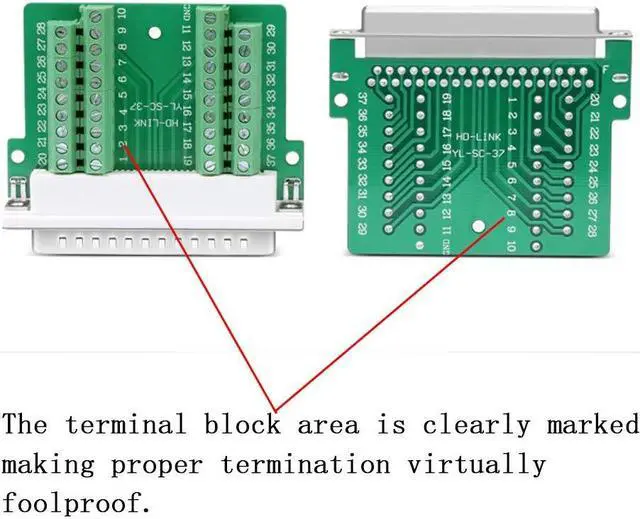

- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- THINNER: The thickness is only 16mm, which is 4mm thinner than the normal solderless connectors, ensuring that the product can be used in a narrow space.
- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
These DB37 Female Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Name: Thin DB37 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: folding snap-on
Opening size (cable port): 10.5 mm/ 0.41
Thickness: 16mm/ 0.63
Cable Specification: 26-16 AWG
Torque: 0.2N m ( 1.7L b-In. )
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 76 mm× 73.5 mm×16 mm/ 2.99 × 2.89 × 0.63

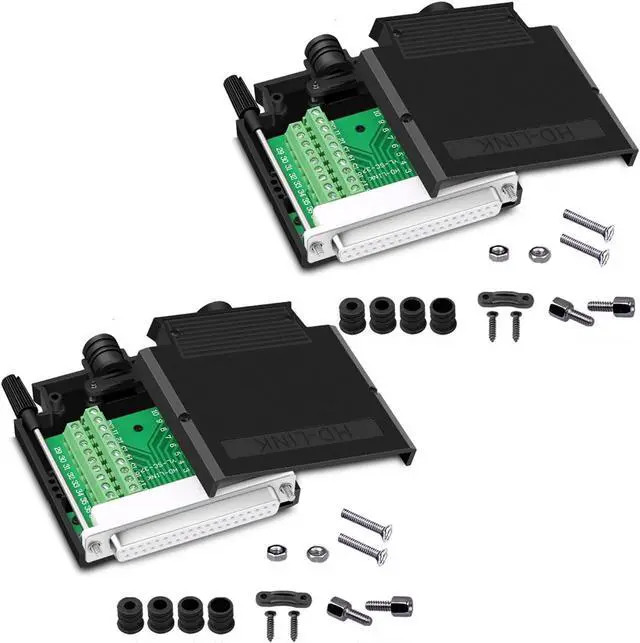

Package includes:
2 x DB37 Female Solderless Connectors

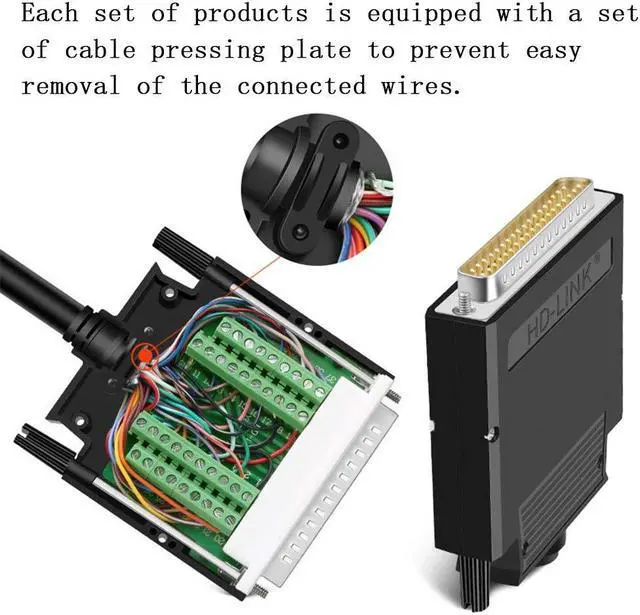

2x cable pressing plate
4x Screws
4x Long bolts
2x 5mm tail pipe
2x 6mm tail pipe
2x 7.5 mm tail pipe
2x 8.5 mm tail pipe
Technical
Specifications
:Name: Thin DB37 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: folding snap-on
Opening size (cable port): 10.5 mm/ 0.41
Thickness: 16mm/ 0.63
Cable Specification: 26-16 AWG
Torque: 0.2N m ( 1.7L b-In. )
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 76 mm× 73.5 mm×16 mm/ 2.99 × 2.89 × 0.63
Package includes:
2 x DB37 Female Solderless Connectors
2x cable pressing plate
4x Screws
4x Long bolts
2x 5mm tail pipe
2x 6mm tail pipe
2x 7.5 mm tail pipe
2x 8.5 mm tail pipe
