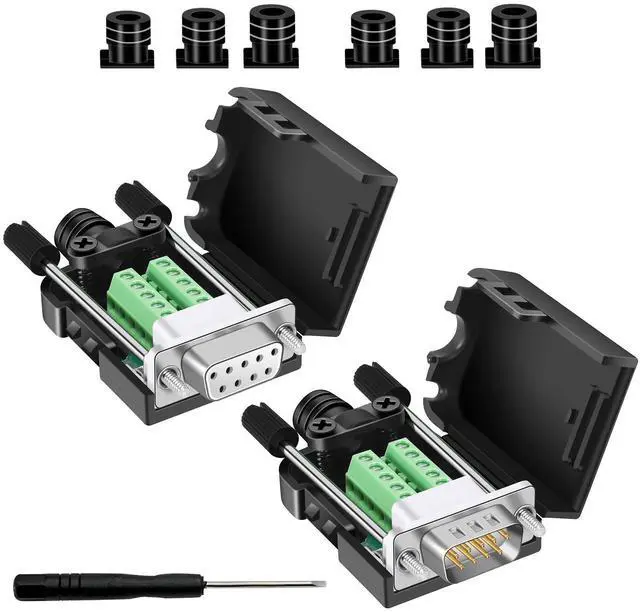

BIFALE DB9 Breakout Connector (3 Male+3 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 16mm thinner 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe
- Customer ServiceIf there are any issues with DB 9 connector, please contact us.

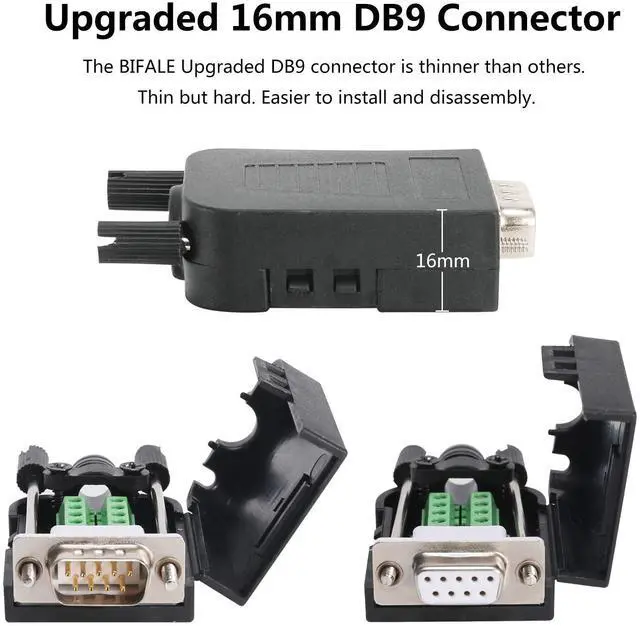

- Upgraded 16mm DB9 ConnectorNo soldering needed! The BIFALE Upgraded DB9 connector is thinner than others. Thin but hard. Easier to install and disassembly. And has fine solder joints, which can withstand 2,000+ pluging and unpluging tests. Shell with non-slip design.

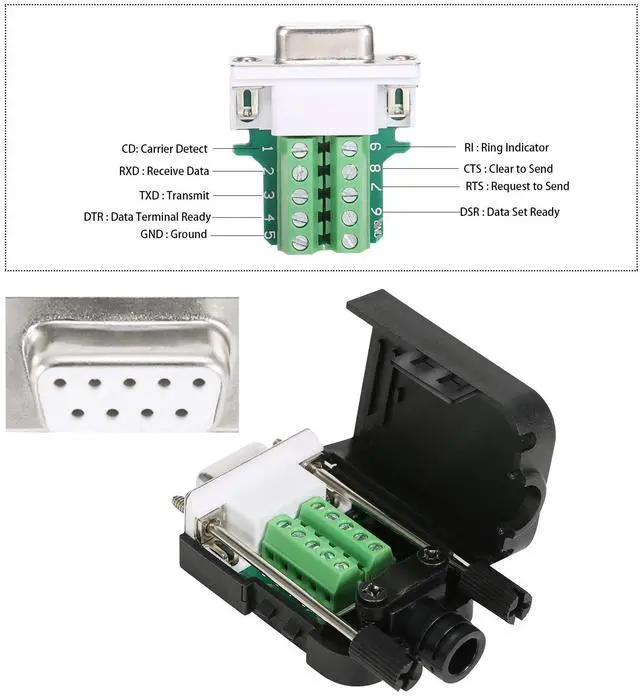

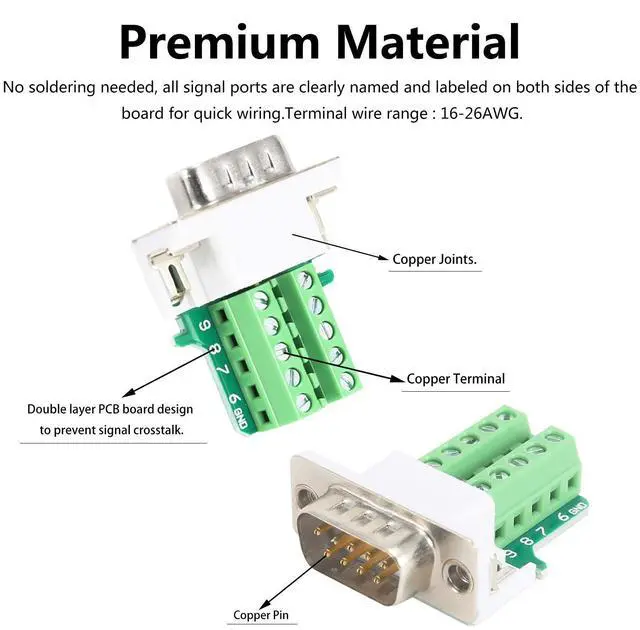

- Premium 4N OFC The inner pin of db9 connector is made of 4N OFC material. Own a better connectivity, provide stable signal transmission. Anti-corrosion, anti-oxidation. All signal ports are clearly named and labeled on both sides of the board for quick wiring. Terminal wire range : 16-26AWG.
- RoHS CompliantOur DB9 breakout connector is RoHS compliant. Traditional practice is to use tin to weld, it is NOT RoHS compliant. The outer casing is made of heavy duty PP engineering material, which is durable.
- Wide CompatibilityThe DB9 solderless connector compatible with digital camera, set-top box, barcode machine, PLC, P
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter
Pin: 9
Weight: 30g
Design: Screw Type
Color: Black & Green
Contact Material: 4N OFC
Shell type: folding snap-on
Thickness: 16mm/ 0.63 inch
Name: DB9 solderless module
Connector material: pure copper plated joint
Size: 47 x 34 x 16mm/ 1.85" x 1.34" x 0.63" (L*W*H)
Cable Hole Dia.: 5mm/ 0.2 '' 6mm/ 0.236 '' 7mm/ 0.27 ''
Housing material: PP engineering materials
Fixing Hole diameter: 3mm, fixing
Hole center distance: 6mm/0. 236 inch
What you get
1× Screwdriver
12 x Screws
12 x Long bolts
18 x Wire cover
6 x cable pressing plate
3 x DB9 Female Solderless Connectors with case
3 x DB9 Male Solderless Connectors with case
Pin: 9
Weight: 30g
Design: Screw Type
Color: Black & Green
Contact Material: 4N OFC
Shell type: folding snap-on
Thickness: 16mm/ 0.63 inch
Name: DB9 solderless module
Connector material: pure copper plated joint
Size: 47 x 34 x 16mm/ 1.85" x 1.34" x 0.63" (L*W*H)
Cable Hole Dia.: 5mm/ 0.2 '' 6mm/ 0.236 '' 7mm/ 0.27 ''
Housing material: PP engineering materials
Fixing Hole diameter: 3mm, fixing
Hole center distance: 6mm/0. 236 inch
What you get
1× Screwdriver
12 x Screws
12 x Long bolts
18 x Wire cover
6 x cable pressing plate
3 x DB9 Female Solderless Connectors with case
3 x DB9 Male Solderless Connectors with case
