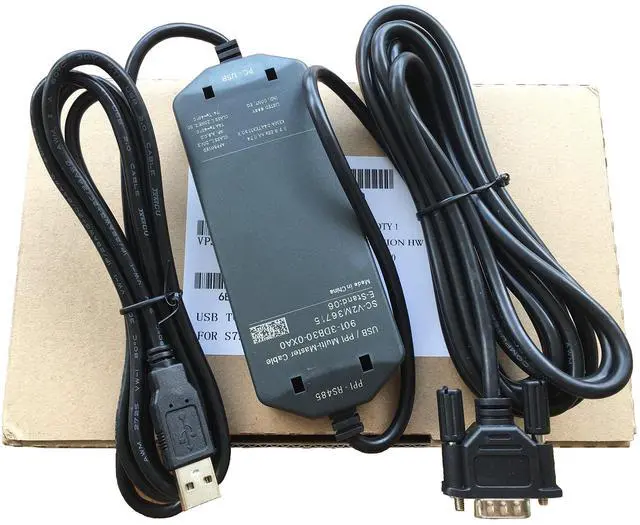

Washinglee USB Programming Cable for Siemens PLC S7 200 and Touch Screen, for 6ES7901-3DB30-0XA0 Replacement (S7 200+Touch Panel)
- Application Scenes. USB programming cable Compatible for Siemens PLC S7 200, for Siemens touch panel KTP600DP KTP1000DP TP177Micro TP177A TP177B and TP178. Compatible for Siemens CPU222 CPU224 CPU224XP CPU226 and etc. To transfer program / data between computer and PLC. For 6ES7901-3DB30-0XA0 replacement. NOT support S7 200 SMART.
- Converter Cable. 16 FT. USB to RS485/PPI/PPI+ programming cable, USB male to DB9 male adapter. With LED communication indicators. Up to 187.5kbps. Compatible with USB V1.1 and USB V2.0
- Supported OS. Support Windows 98/XP/Vista/2000/7/8/10/11.
- Driver and APP Supported. No driver installation is required. Compatible for STEP 7 MicroWin V4.0 SP9 and above.
- Technical Support. User Manual will be sent to you by Email via Amazon platform, if you didnt receive it, please contact our engineers by Email for technical support. Made by Washinglee, 1 year warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Summary
1. For 6ES7901-3DB30-0XA0 replacement.
2. Compatible for Siemens PLC S7 200, for Siemens touch panel KTP600DP KTP1000DP TP177Micro TP177A TP177B and TP178. To transfer program / data between computer and PLC.

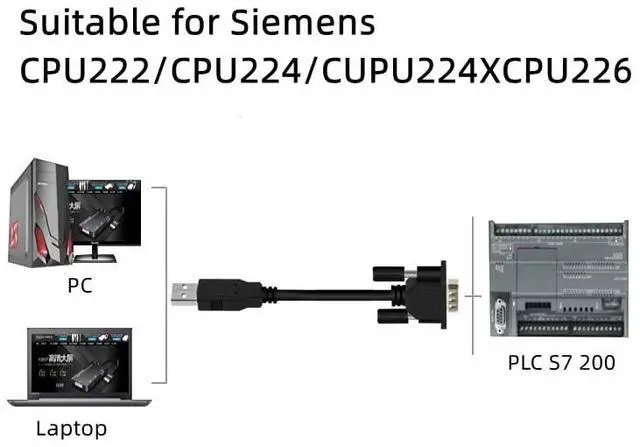

3. Also compatible for Siemens CPU222 CPU224 CPU224XP CPU226 and etc.
4. NOT support S7 200 SMART.
5. Support Windows 98/XP/Vista/2000/7/8/10/11.
6. Compatible for STEP 7 MicroWin V 4.0 SP9 and above.
7. No driver installation is required.
Specification

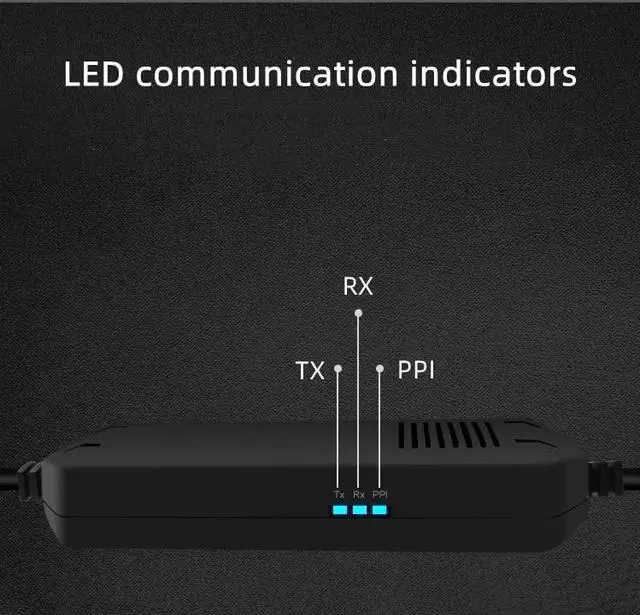

1. With LED communication indicators.
2. Support RS485, PPI and PPI+.
3. Compatible with USB V 1.1 and USB V 2.0
4.

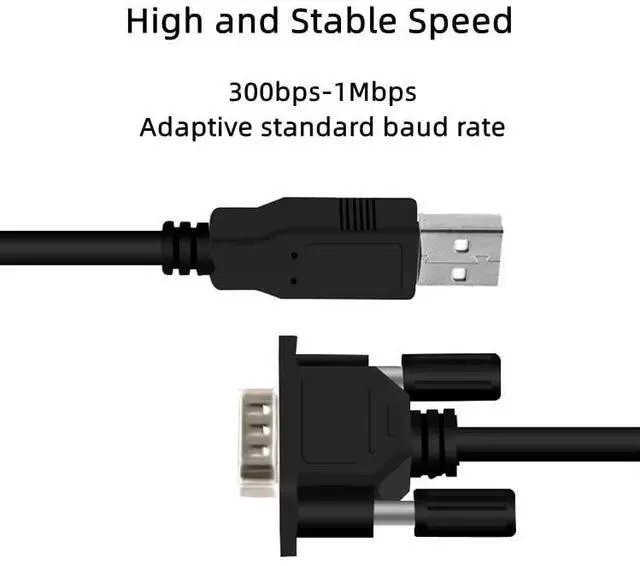

Support Baud rate: 9.6KBD ps, 19.2KBD ps. Up to 187.5 kbps.
5. Length 5 M
6. UART data format, data
bit: 8, stop
bit: 1 and 2, parity
bit: odd, even, no parity
Technical Support
1. User Manual will be sent to you by Email via Amazon platform, if you didnt receive it, please contact our engineers by Email for technical support.
2. And, there is one printed label on the package, indicating technical support Email address.
3. Made by Washinglee, 1 year warranty.
Packing List
USB Programming cable X 1
