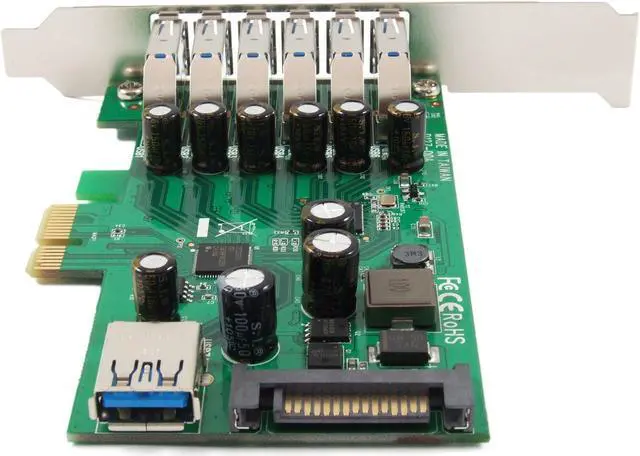

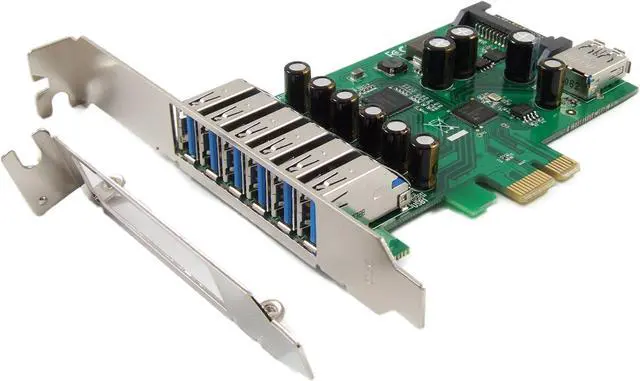

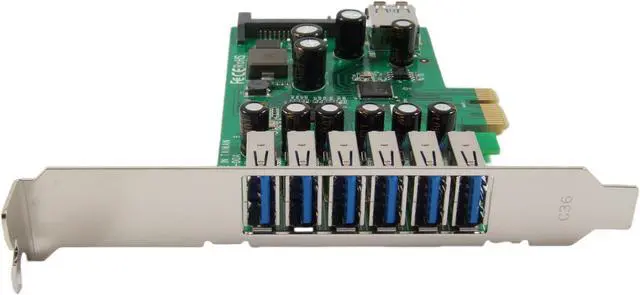

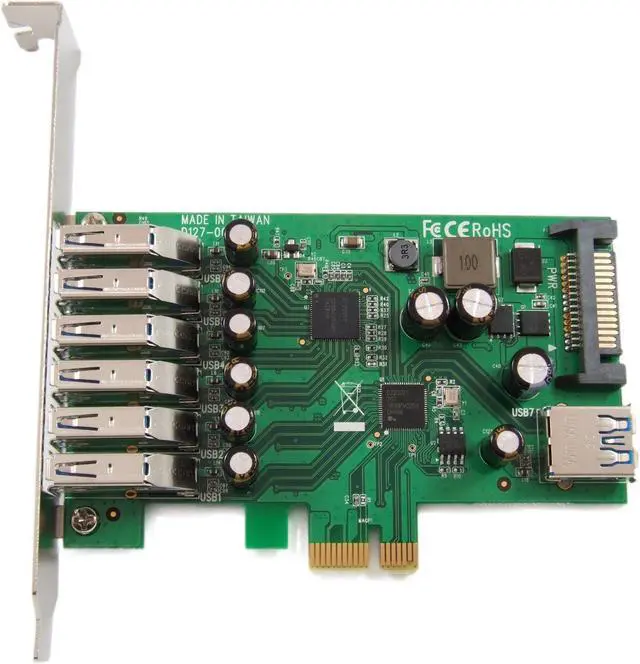

Ableconn PEX-UB127 7-Port USB 3.0 6X External + 1x Internal PCI Express (PCIe) Low Profile Host Adapter Card - Renesas NEC UPD720201 chipset, TAA
- Seven USB 3.0 Type-A connectors. Up to 5Gbps data transfer speed.
- PCIe x1 lane Low Profile board. Include both Low Profile and Regular Size PCIe brackets.
- Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/1A bus power on each USB port.
- No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
- Built with Renesas NEC uPD720201. High quality. Fully RoHS compliant. Made in Taiwan.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Add External six Ports and Internal 1 Port USB 3.0 SuperSpeed 5Gbps in Low Profile PCIe Host Adapter to support all kind of USB 3.0, USB 2.0, USB 1.1 Devices.
Specification
* Connector:
- 7 x USB 3.0 Type-A female (6x external + 1x internal)
- 1 x 15-pin SATA power connector (optional connection)
- PCI Express x1 Male
* Chipset: Renesas uPD720201 + uPD720210 (Hub)
* Software:
- No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6. 31 and later OS. The OS buit-in USB drivers support UASP.
- The Renesas drivers are available for 32/64 bit Windows 7/Vista/XP, and 64bit Server 2008 R2
* Data transfer rate:
- USB 3.0 up to 5 Gbps
* USB 3.0 PCI Express 2.0 x1 Lane Host Adapter
* Supports PCIe 1.0 and PCIe 2.0 motherboard
* Compliant with PCI Express Specification 2.0
* Compliant with Universal Serial Bus 3.0 Specification Rev. 1.0
* Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
* Support USB Attached SCSI Protocol (UASP).
* Support USB 3.0, USB 2.0 and USB 1.1 devices
* Provides 5V/1A USB bus power to USB devices from Motherboard PCIe slot directly, or from PC power supply if on board 15Pin SATA power connector connected
* Low Profile PCIe Form Factor board
* Include both Low Profile and Regular Size PCIe brackets
* Fully RoHS compliant.
* Made in Taiwan
Package Contents
* Ableconn USB 3.0 7-Port PCIe Host Adapter Card
* One (1) low profile PCIe bracket
* Quick Installation Guide
Specification
* Connector:
- 7 x USB 3.0 Type-A female (6x external + 1x internal)
- 1 x 15-pin SATA power connector (optional connection)
- PCI Express x1 Male
* Chipset: Renesas uPD720201 + uPD720210 (Hub)
* Software:
- No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6. 31 and later OS. The OS buit-in USB drivers support UASP.
- The Renesas drivers are available for 32/64 bit Windows 7/Vista/XP, and 64bit Server 2008 R2
* Data transfer rate:
- USB 3.0 up to 5 Gbps
* USB 3.0 PCI Express 2.0 x1 Lane Host Adapter
* Supports PCIe 1.0 and PCIe 2.0 motherboard
* Compliant with PCI Express Specification 2.0
* Compliant with Universal Serial Bus 3.0 Specification Rev. 1.0
* Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
* Support USB Attached SCSI Protocol (UASP).
* Support USB 3.0, USB 2.0 and USB 1.1 devices
* Provides 5V/1A USB bus power to USB devices from Motherboard PCIe slot directly, or from PC power supply if on board 15Pin SATA power connector connected
* Low Profile PCIe Form Factor board
* Include both Low Profile and Regular Size PCIe brackets
* Fully RoHS compliant.
* Made in Taiwan
Package Contents
* Ableconn USB 3.0 7-Port PCIe Host Adapter Card
* One (1) low profile PCIe bracket
* Quick Installation Guide
