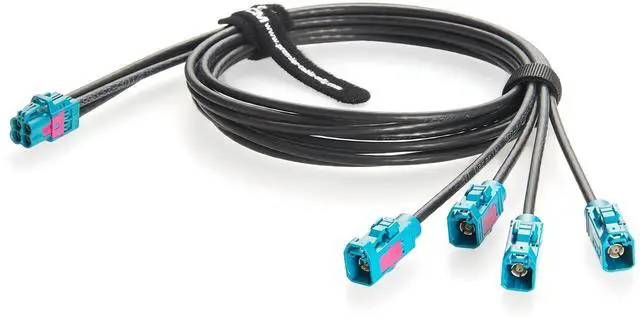

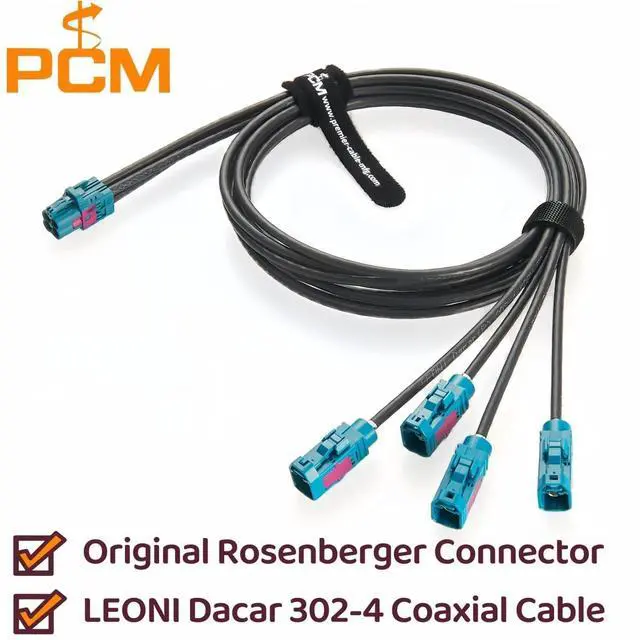

Rosenberger Quad HFM Mini FAKRA Z Code Female to Fakra Female Four Ports Automotive RF Coaxial Cable 4-in-1 AMK12D-1M4Z5-Z to 59Z113-000-Z GMSL FPD-Link Camera Vehicle LVDS Data Cable (1M/3.28FT)

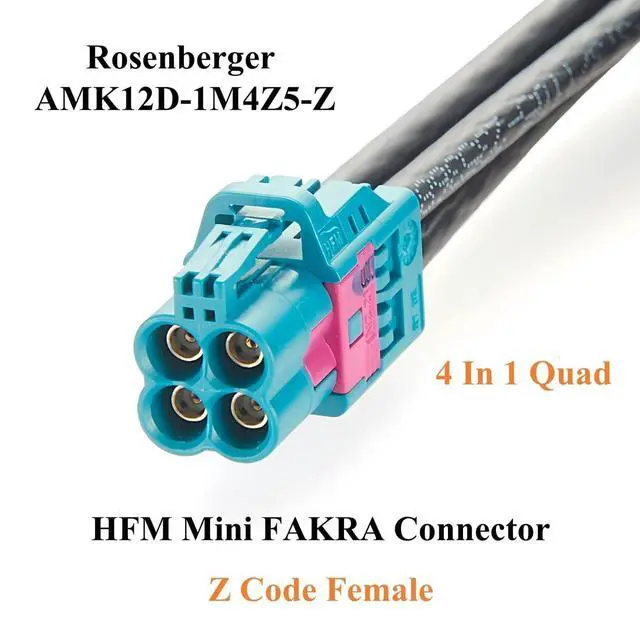

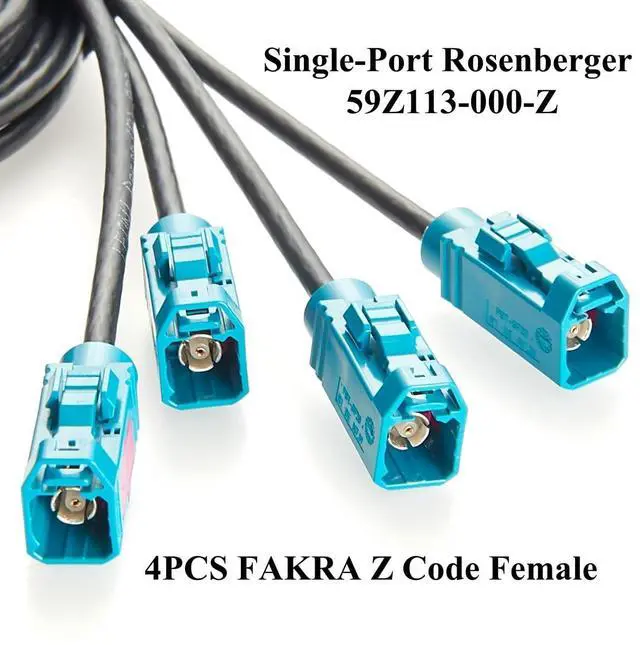

Original Connector 4 In 1 Rosenberger Mini FAKRA to Four Ports FAKRA Cable, Equipped with Original Rosenberger Quad HFM Mini Fakra Z Code Female Connectors (AMK12D-1M4Z5-Z), and Original Rosenberger Fakra Z Code Female Connectors (59Z113-000-Z).

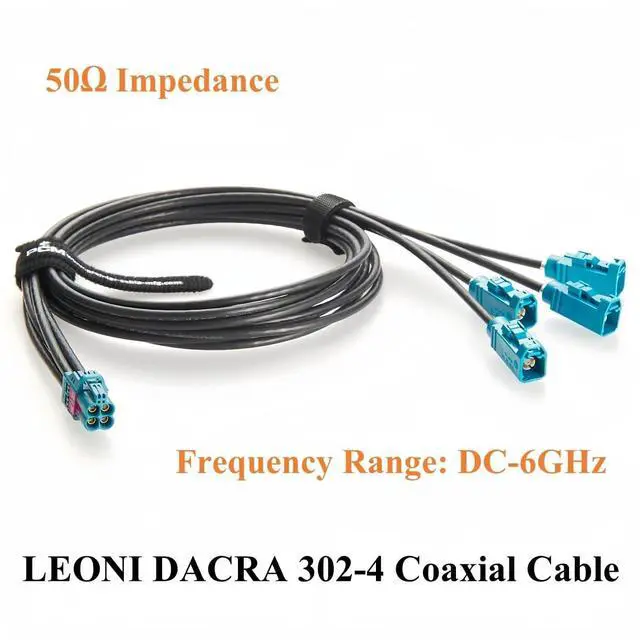

50 Ohm & DC6GHz The Rosenberger Mini FAKRA to FAKRA RF Coaxial Cable, Support 50 Ohm Impedance and DC-6GHZ Frequency, ensuring low-loss, high-integrity RF signal transmission. for including video, GNSS, radar, wireless communication, and sensor data links.
Shielded Cable The Vehicle Car Automotive Coaxial Cable, Built with LEONI DACAR 302-4 coaxial shielded cable, providing excellent shielding, low attenuation, and superior EMI/RFI resistance.
Application The Mini FAKRA Z Code Female to Fakra FAKRA RF Coaxial Cable for ADAS, In-Vehicle Infotainment (IVI), FPD-Link GMSL Cameras, Surround-View and Parking Assistance, Automotive Camera, Vehicle Telematics, Robotaxi, TCU, V2X, GPS Navigation, Autonomous Driving and so on.
Cus

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specification: Connector
1: Quad HFM Mini FAKRA Connector, Z Code Female Jack, Rosenberger AMK12D-1M4Z5-ZConnector 2: 4 PCS X FAKRA Connector, Single-Port, Z Code Female Jack, Rosenberger 59Z113-000-ZCable
Length: 0.5M /1M/2M, Or OEM
Connector Orientation:
StraightImpedance: 50
OhmFrequency Range:
DC-6GHzHi-Pot: 800 VRMS MIN
Operating Temperature Range: -40C
to +105CWire: LEONI DACRA 302-4 Coaxial Cable
