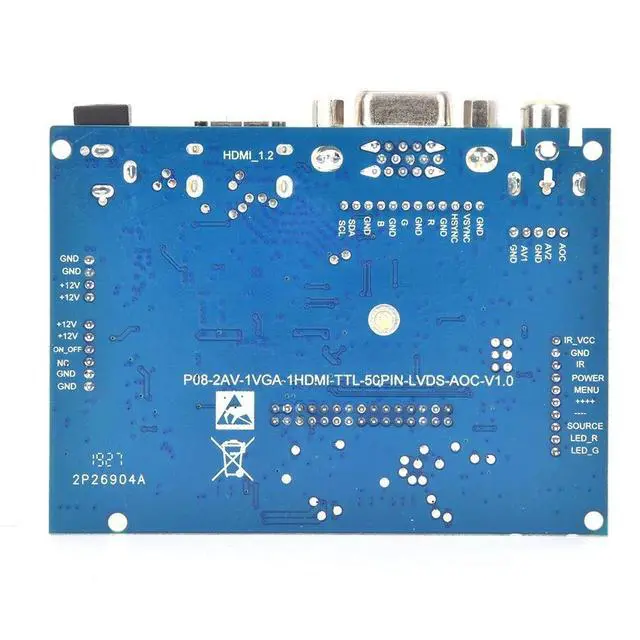

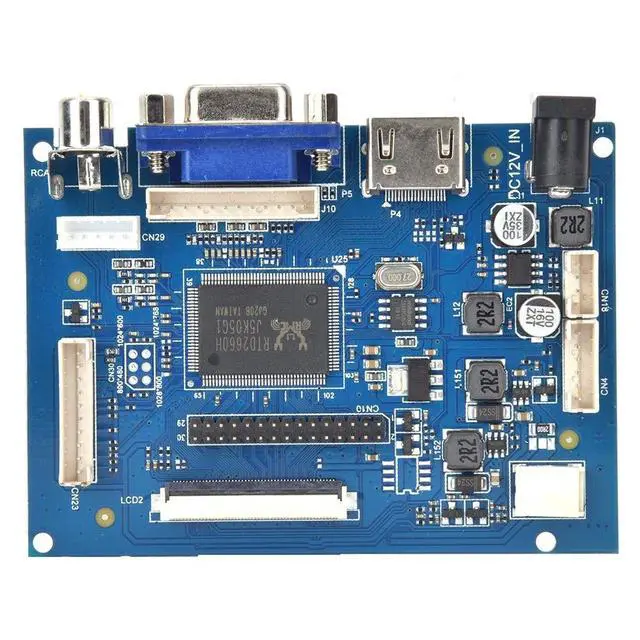

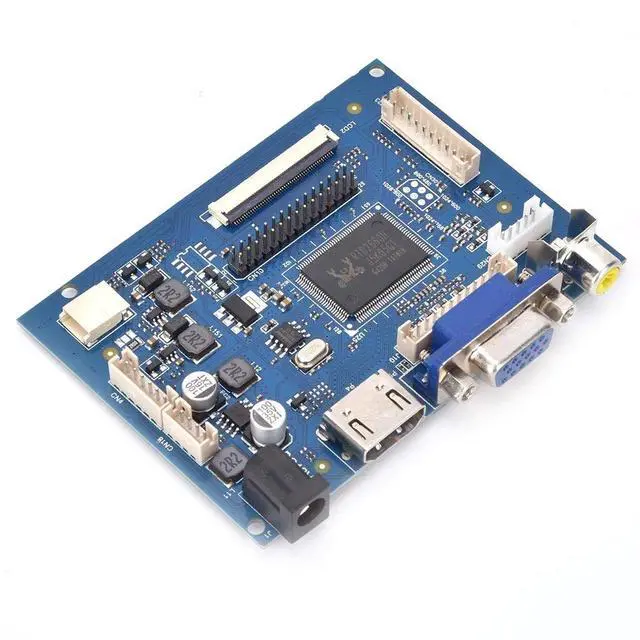

LCD Driver Board, Universal 40 Pins 9V-24V HDMI VGA 2AV Input LCD Controller Board, for AT070TN92 LED Panel AT065TN14

Specification:
Features: 1 way VGA input, 2-way AV input, 1-way reversing input1-way input, and the IC supports HDMI 1.2S upport wide voltage input, and can normally work between 9V-24VThe standard backlight 6PIN interface, can be an external high-voltage boardThe driver board integrated LCD screen LED backlight drive board, The standard LVDS output, can support single 6, single 8, double 6, double 8 standard LVDS LCD screen, but only support the screen power supply for the 3.3V LCD screenThe standard keypad interface, and supports two-color LED indicatorSupport TTL output, Can support AT070TN92, AT065TN14, AT080TN52, AT090TN12, AT090TN10, AT070TN90, AT070TN93, AT070TN94, etc., universal 50PIN interface TTL LCD screenWith the LCD screen adapter board, can support the following
LCD screen: EJ070NA01-1024X600 resolution, EJ080NA04B-1024X768 resolution, ZJ070NA01, model of the universal 40PIN high score LCD screenWith the LCD screen adapter board, you can also support 4.3, 5, 6, 7 inch, 40PIN common screen, the definition see AT0543TN24V, 1The drive board maximum output display resolution, 1920X1080 over, 1440X900 display resolution, the need to look at the work of the IC, increase the heat sink to reduce the IC\'s operating temperature)The VGA part of the IC can be directly input YPBPR, the need to achieve through software programsThe driver board can increase the remote control function, need to achieve through the software programSupport reversing control, and display in AV2, the reverse voltage support within 50V voltage inputSpecifications:
Type: VGA 2AV Reversing
Driver BoardInput voltage:
9V-24VWeight: 79gPackage

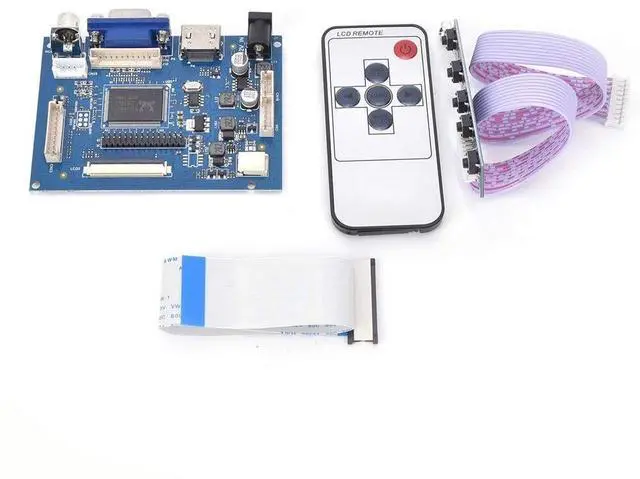

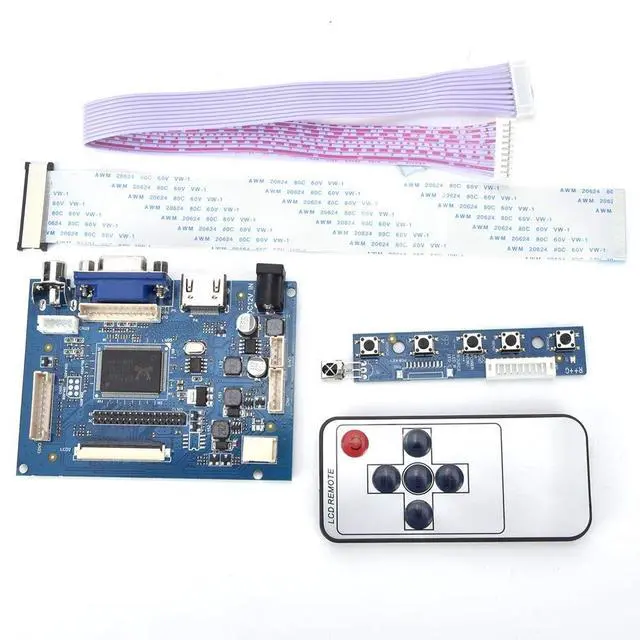

includes: 1 x Reversing Driver Board with cable1 x remote controlNote: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
