FanyiTek VGA DP LVDs Controller Board for 15.6" 17.3" 1920x1080 40pin B156HW02 LP156WF1 N156HGE-L11 LP173WF1 B173HW01 N173HGE-L21 LCD Screen
- LCD driver board work for 15.6" 17.3" 1920x1080 40pin WLED backlight lvds LCD panel.
- Video input: VGA DP,Audio Output: Speaker Connector ( 8ohm 2W 4Pin PH2.0 ).Please use in insulated environment.
- Input Power Supply: 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
- Compatible Screen models: 15.6" B156HW01 V.0 B156HW01 V.4 B156HW01 V.7 B156HW02 LP156WF1 N156HGE-L11.
- 17.3" N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 CLAA173UA01A(Before purchasing,Pls confirm your display model firstly,which mark at the back side of the panel label,need to open the rear case to check)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

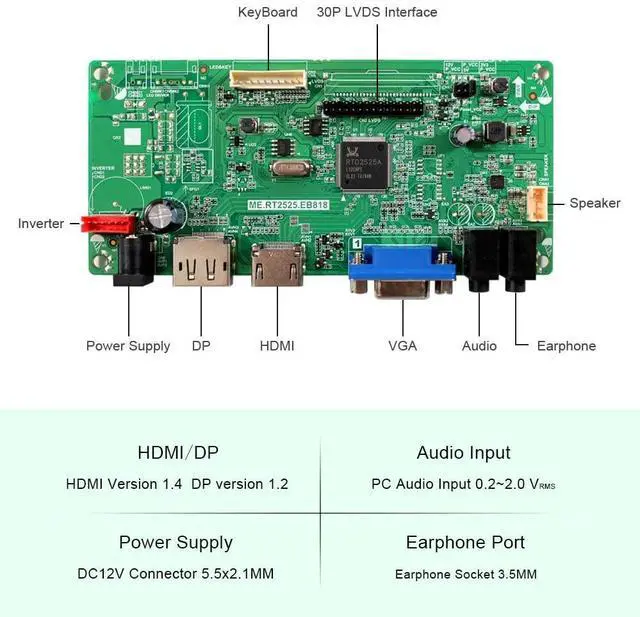

LCD Controller Board:
DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DP VGA
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

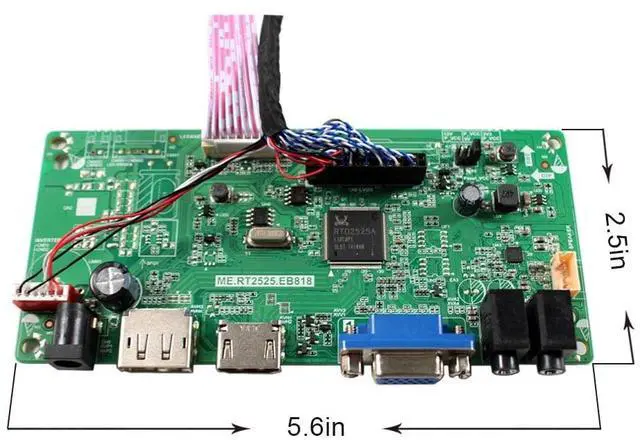

Board Size: 139mm x60mm x 17mm
Compatible Work With:
15.6 inch1920x1080
B156HW01 V. 0 B156HW01 V. 4 B156HW01 V. 7 B156HW02 LP156WF1 N156HGE-L11
17.3 inch1920x1080
LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 B173HW01

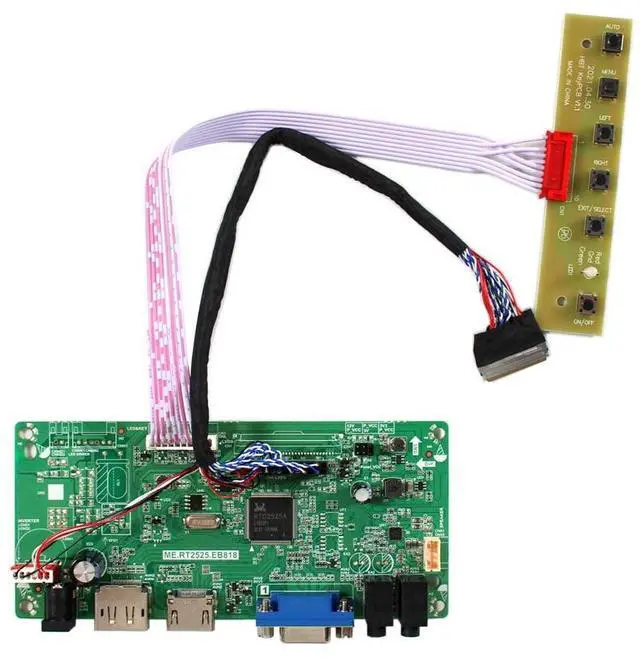

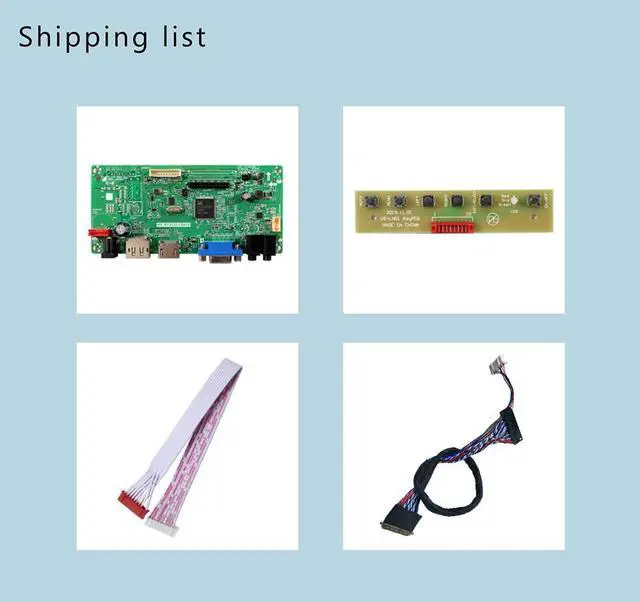

Packing list:
1x DP VGA LCD Controller Board ME. RT2525. EB818
1x 40Pin Signal Cable
1x Keyboard With Cable
DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DP VGA
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x60mm x 17mm
Compatible Work With:
15.6 inch1920x1080
B156HW01 V. 0 B156HW01 V. 4 B156HW01 V. 7 B156HW02 LP156WF1 N156HGE-L11
17.3 inch1920x1080
LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 B173HW01
Packing list:
1x DP VGA LCD Controller Board ME. RT2525. EB818
1x 40Pin Signal Cable
1x Keyboard With Cable
