3PCS USB Camera Module OV9732, 100 Degree Without Deformity, 1MP 1280x720 Free Driver, Adjustable Focus Camera for Face and License Plate Recognition, Drone Aerial Photography, Supports Win7/8/10/MAC
- [(Wide Range of Applications)] : It can be applied to face recognition, license plate recognition, drone aerial photography, high-definition cameras, QR code gates, robot vision and many other industry products
- [(Strong Compatibility)] : Supports WinXP/Win7/Win8/Win10/Linux/MAC/Android and more. Support OTG UVC USB interface, drive-free, plug and use
- [(Stable Performance)] The USB Camera Module is equipped with a high-definition photosensitive chip ov9732 for stable performance and clearer images
- [(Adjustable Focal Length)] 100-degree field of view, larger viewing range, more open field of view, can be adjusted by rotating the lens shooting focus

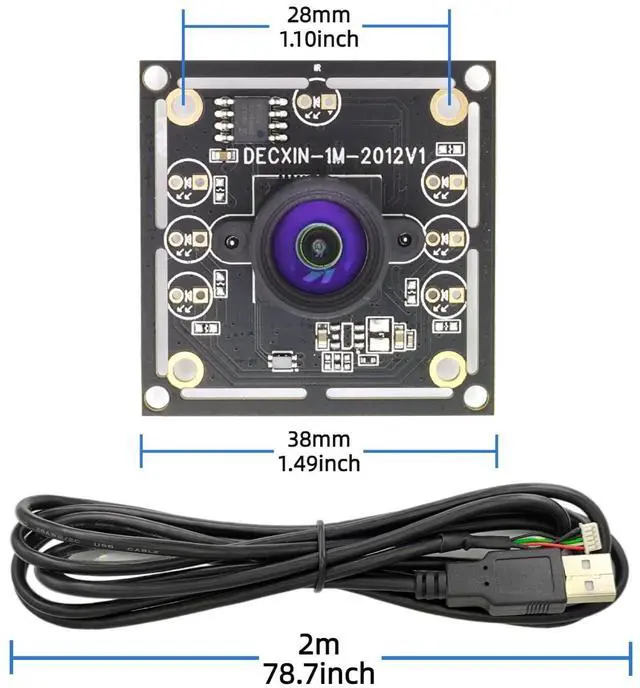

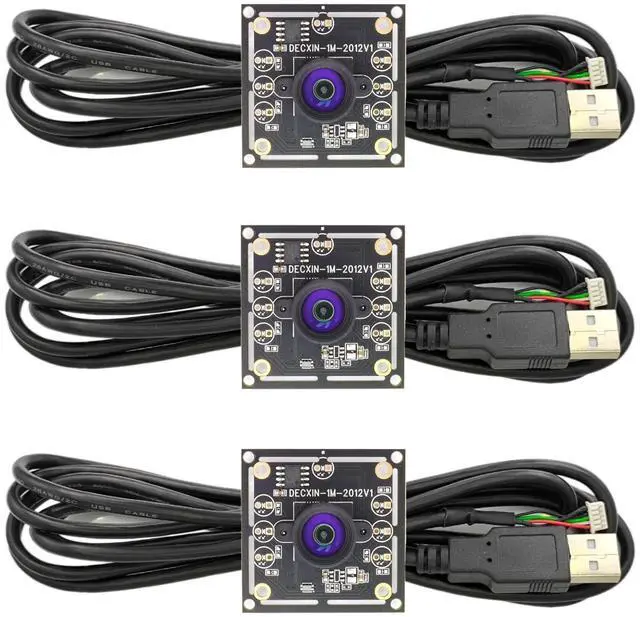

- [(Package Included)] : 3 X 100 Degrees OV9732 Camera Module, 3 X 2m USB Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
1.
Photosensitive film: (1/4")
2.
The highest effective pixel: 1280 (H) *720 (M)
3.
Lens Size: 1/4 inch ( 4: 3 )
4.
Pixel Size: 3.0 um* 3.0 um
5.
Image area: 5.7 mm x 4.28 mm
6.
Output image format: MJPEG/YUV2 (YUYV)
7. Supported resolutions and frame rates
1280x720@30fps MJPEG
1280x720 @10fps Yuv
800x600 @30fps MJPEG
800x600 @15fps Yuv
640x480 @30fps MJPEG
640x480 @30fps Yuv
8.
Camera board assembly technology: SMT
9.
Focus: Fixed
10.
Center definition: 600LW/PH (Center)
11.
Signal-to-noise ratio: TBD
12.
Dynamic range: TBD
13.
Sensitivity: 1.4V /lux-sec@550nm
14.
Minimum illumination: 0.5 lux
15.
Shutter type: Electronic rolling shutter / Frame exposure
16.
Interface type: USB 2.0 High Speed
17. Automatic exposure control
AEC: supported
18. Automatic white balance
AEB: supported
19. Automatic gain control
AGC: supported
20.
Adjustable parameters: brightness/contrast/color saturation/hue clarity/gamma/white balance/backlight contrast/exposure
21.
Lens specifications:
Size 1/4
Focal length 2.84 m
Aperture F 2.0
77.3 deg (diagonal)
Interface M12*P 0.5
22.
Color: Black
Package Included:
3 X 100 Degrees OV9732 Camera Module
3 X 2m USB Cable
Note:
Please allow 0-1cm error due to manual measurement. make sure you do not mind before you order.
Please allow slight aberration due to different display resolutions.
1.
Photosensitive film: (1/4")
2.
The highest effective pixel: 1280 (H) *720 (M)
3.
Lens Size: 1/4 inch ( 4: 3 )
4.
Pixel Size: 3.0 um* 3.0 um
5.
Image area: 5.7 mm x 4.28 mm
6.
Output image format: MJPEG/YUV2 (YUYV)
7. Supported resolutions and frame rates
1280x720@30fps MJPEG
1280x720 @10fps Yuv
800x600 @30fps MJPEG
800x600 @15fps Yuv
640x480 @30fps MJPEG
640x480 @30fps Yuv
8.
Camera board assembly technology: SMT
9.
Focus: Fixed
10.
Center definition: 600LW/PH (Center)
11.
Signal-to-noise ratio: TBD
12.
Dynamic range: TBD
13.
Sensitivity: 1.4V /lux-sec@550nm
14.
Minimum illumination: 0.5 lux
15.
Shutter type: Electronic rolling shutter / Frame exposure
16.
Interface type: USB 2.0 High Speed
17. Automatic exposure control
AEC: supported
18. Automatic white balance
AEB: supported
19. Automatic gain control
AGC: supported
20.
Adjustable parameters: brightness/contrast/color saturation/hue clarity/gamma/white balance/backlight contrast/exposure
21.
Lens specifications:
Size 1/4
Focal length 2.84 m
Aperture F 2.0
77.3 deg (diagonal)
Interface M12*P 0.5
22.
Color: Black
Package Included:
3 X 100 Degrees OV9732 Camera Module
3 X 2m USB Cable
Note:
Please allow 0-1cm error due to manual measurement. make sure you do not mind before you order.
Please allow slight aberration due to different display resolutions.
