MakerSpot 5-Port Stackable USB Docking Hub for Raspberry Pi Zero V1.3 with Protector, 2.4A Power Supply, 1.5m Micro USB Cable with On Off Switch and Standoffs
- 5 x USB 2.0 data and charging ports, a micro USB port for power input up to 2.3A consumption
- 5 x electrolytic capacitors to filter electrical noise and stabilize voltage with an independent protection circuit to limit total current to 2.3A
- an RJ45 Ethernet port with Realtek RTL8152B 10/100M chip, A 3.5mm audio jack, supporting both recording and playback
- Compatible with Raspberry Pi Zero v1.3 (with Camera Connector) and Raspberry Pi Zero W / Pi Zero 2 W (with Bluetooth and WiFi)
- Raspberry Pi Zero shown in the photos is for illustrative purpose Only
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

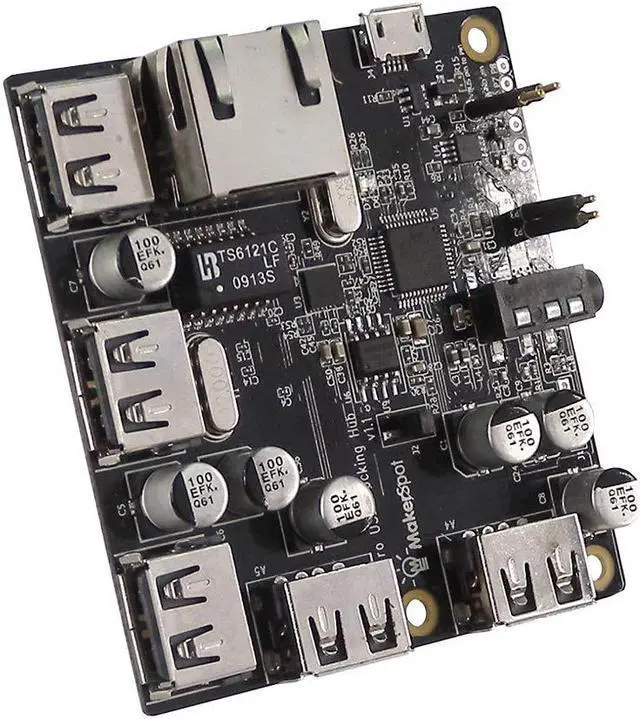

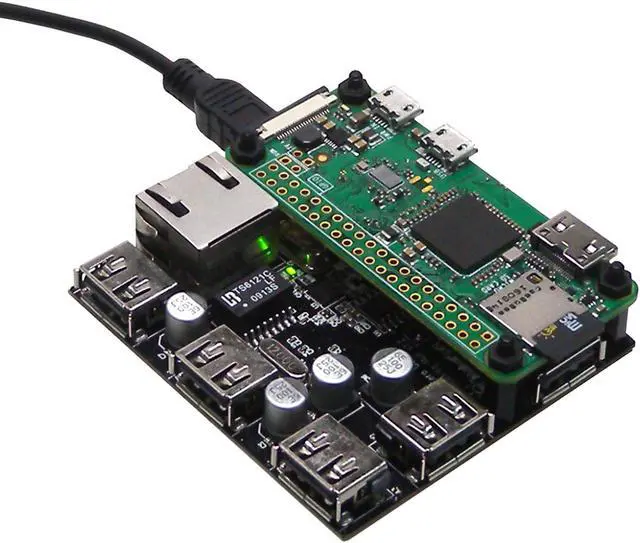

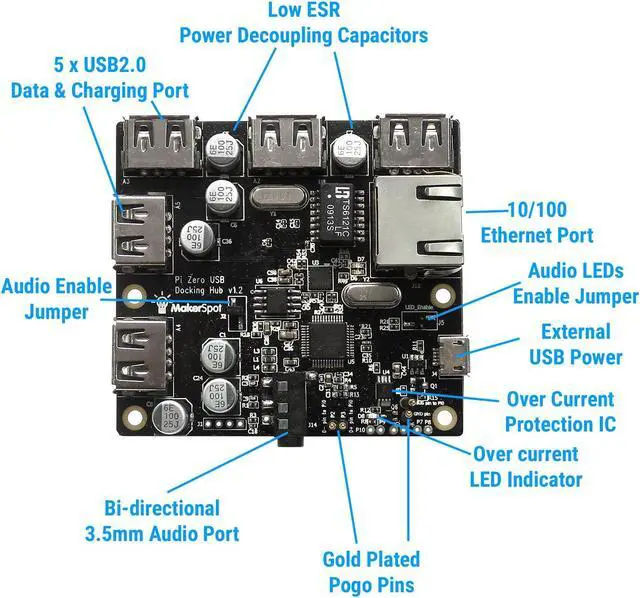

The Pi Zero USB Docking Hub is a stackable USB Hub that comes with 5 x USB 2.0 data and charging ports, a micro USB port for power input, an RJ45 port for Ethernet, and a 3.5 mm audio input/output jack. Just snap your Pi Zero onto the top of the docking hub station, the four pogo pins on the hub station will connect to the signal pads on your Pi. No soldering required
More Space!

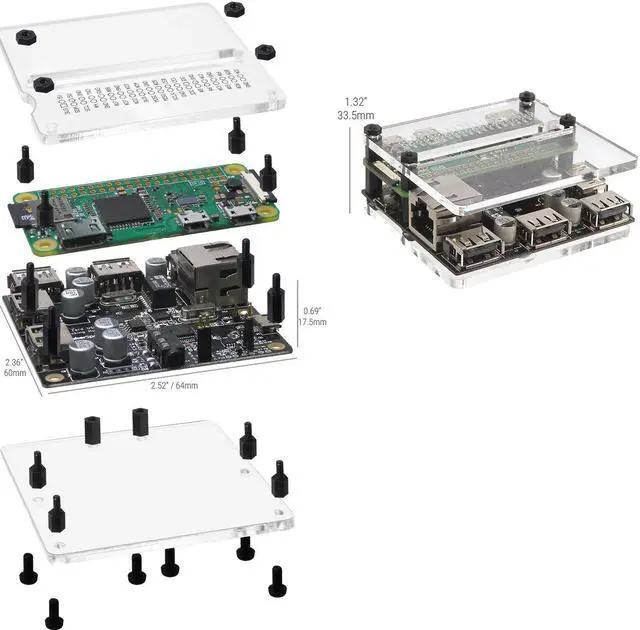

The Docking Hub spaced over 6cm + 6cm in length. Even the fattest USB stick can be hosted by the USB Docking Hub.
USB Audio
The USB Docking Hub has a built-in C-Media HS100B audio chip and a 3.5 mm audio jack for headsets, speakers or microphones. It takes majority of the mobile phone headsets, audio speakers or microphones with a 3.5 mm audio plug. LED indicators show if the HS100B is enabled properly by the OS and the status of input/output audio signal.
Ethernet LAN
The RJ45 Ethernet port provide a more reliable Internet connection for your Pi Zero! The Realtek RTL8152B 10/100M LAN chip on board is fully supported by the latest Raspbian OS. You can also build an OpenWRT WiFi-based access point or firewall with simple configurations.
Power through USB
One of the major issues about bringing USB devices to Pi Zero is "Power Supply through USB". If you are using an external USB hub, the power is from the Pi Zero. So if you have some power hungry devices like USB hard drives or WiFi adapters, possible to load down your Pi Zero and the unintended reset could damage the OS image on the SD card.

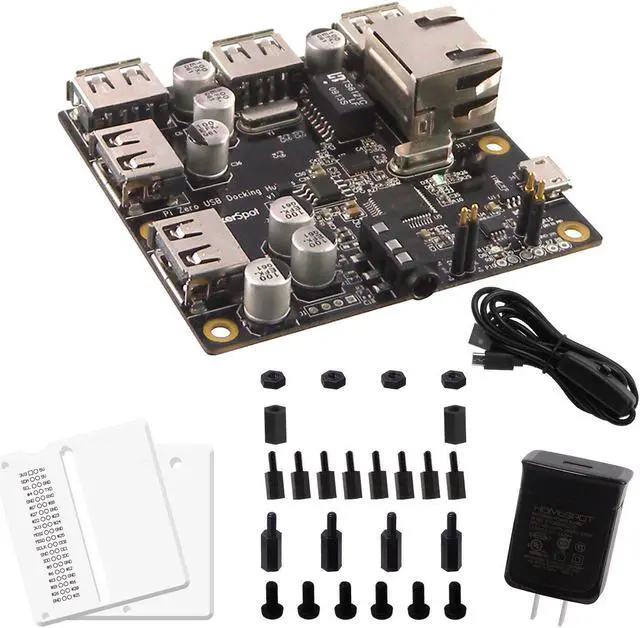

Package Contents
1 x Docking Hub
1 x Protectors
1 x 5v 2.4A Power Adapter
1 x On / Off Power Cable
A set of Standoffs
More Space!
The Docking Hub spaced over 6cm + 6cm in length. Even the fattest USB stick can be hosted by the USB Docking Hub.
USB Audio
The USB Docking Hub has a built-in C-Media HS100B audio chip and a 3.5 mm audio jack for headsets, speakers or microphones. It takes majority of the mobile phone headsets, audio speakers or microphones with a 3.5 mm audio plug. LED indicators show if the HS100B is enabled properly by the OS and the status of input/output audio signal.
Ethernet LAN
The RJ45 Ethernet port provide a more reliable Internet connection for your Pi Zero! The Realtek RTL8152B 10/100M LAN chip on board is fully supported by the latest Raspbian OS. You can also build an OpenWRT WiFi-based access point or firewall with simple configurations.
Power through USB
One of the major issues about bringing USB devices to Pi Zero is "Power Supply through USB". If you are using an external USB hub, the power is from the Pi Zero. So if you have some power hungry devices like USB hard drives or WiFi adapters, possible to load down your Pi Zero and the unintended reset could damage the OS image on the SD card.
Package Contents
1 x Docking Hub
1 x Protectors
1 x 5v 2.4A Power Adapter
1 x On / Off Power Cable
A set of Standoffs
