UOTEK RS232 to 100M Ethernet Device Server RS85 RS422 TCPIP 10/100M TCP/IP to 1 Port RS-232/485/422 Serial Device Server UT-6801A(DIN-Rail Mounted)
- There is 1 RS232/RS485/RS422, to meet the application of multiple serial ports
- Support a wide baud rate range of 300-921600bps, suitable for applications between different devices
- Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
- Support upgrade Web firmware upgrade, convenient for special applications in different occasions
- Wide power input (12~57.6VDC), suitable for different field power supply methods
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

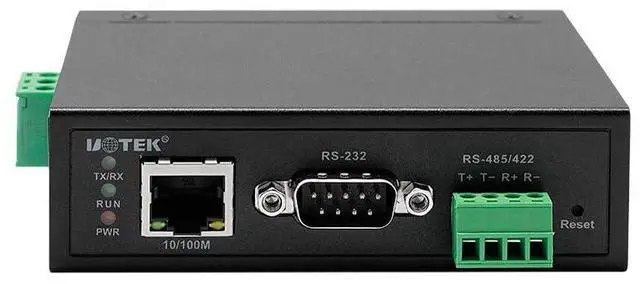

UOTEK Industrial 10/100M TCP/IP to 1-port RS-232/485/422 Serial Device Server
Storage: 128M
Ethernet interface: 10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, RJ45 interface
Serial Standard: RS-232, RS-485, RS-422
Serial RS-232 port: DB9 male
Serial RS-485/422 port: 3.81 unplugged terminal block
Indicator light: Power indicator light PWR, Running indicator light RUN, Serial port transmit and receive indicator DATA.
Function buttons: 1 factory reset button RESET
Housing: Metal housing, protection level IP30
Storage temperature: -40~85°C
Operating temperature: -40~85°C
Relative humidity: 5% ~95% (Non-condensation)
Dimensions L×W×H: 100mm× 80.8 mm×30mmWithout mounting parts
Operating System: Based on Linux
Protocol support: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, SNMP, MQTT, MODBUS
Configuration method: Web browser, VCOM Utility (Virtual COM Only Windows)
Operating Mode: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT
Baud rate: 300-921600bps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 2
Check Bits: None, Odd, Even
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Only RS-232
Storage: 128M
Ethernet interface: 10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, RJ45 interface
Serial Standard: RS-232, RS-485, RS-422
Serial RS-232 port: DB9 male
Serial RS-485/422 port: 3.81 unplugged terminal block
Indicator light: Power indicator light PWR, Running indicator light RUN, Serial port transmit and receive indicator DATA.
Function buttons: 1 factory reset button RESET
Housing: Metal housing, protection level IP30
Storage temperature: -40~85°C
Operating temperature: -40~85°C
Relative humidity: 5% ~95% (Non-condensation)
Dimensions L×W×H: 100mm× 80.8 mm×30mmWithout mounting parts
Operating System: Based on Linux
Protocol support: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, SNMP, MQTT, MODBUS
Configuration method: Web browser, VCOM Utility (Virtual COM Only Windows)
Operating Mode: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT
Baud rate: 300-921600bps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 2
Check Bits: None, Odd, Even
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Only RS-232
