XICOOLEE OV5640 USB Camera Module 5MP Fixed Focus 160 Degree Camera for Win XP Win7 Win8 Vista Mac Linux Android 4.0 Jetson Nano with Flash Microphone Support OTG Standard UVC Protocol Driver-Free

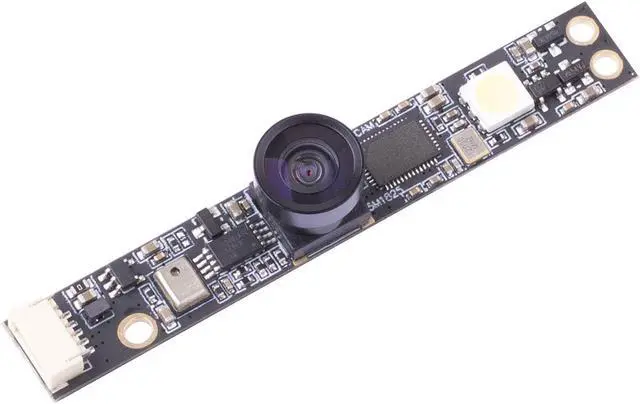

- The mini camera board is on-board CMOS image sensor OV5640, having ISP (image signal processing) functions
- This OV5640 fixed focus camera module is onboard USB2.0 interface directly plug and play, supports OTG protocol, standard UVC protocol, built-in Flashmicrophone
- This ov5640 camera module adopts high-definition 160deg wide angle camera, 5 Megapixel fixed focus, 2592 x 1944 maximum resolution
- The HD USB camera module supports Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano operating systems, which can be customized and is highly compatible
- This OV5640 fixed focus camera module is only 3 grams. Small size is suitable for various industrial products and facecam
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

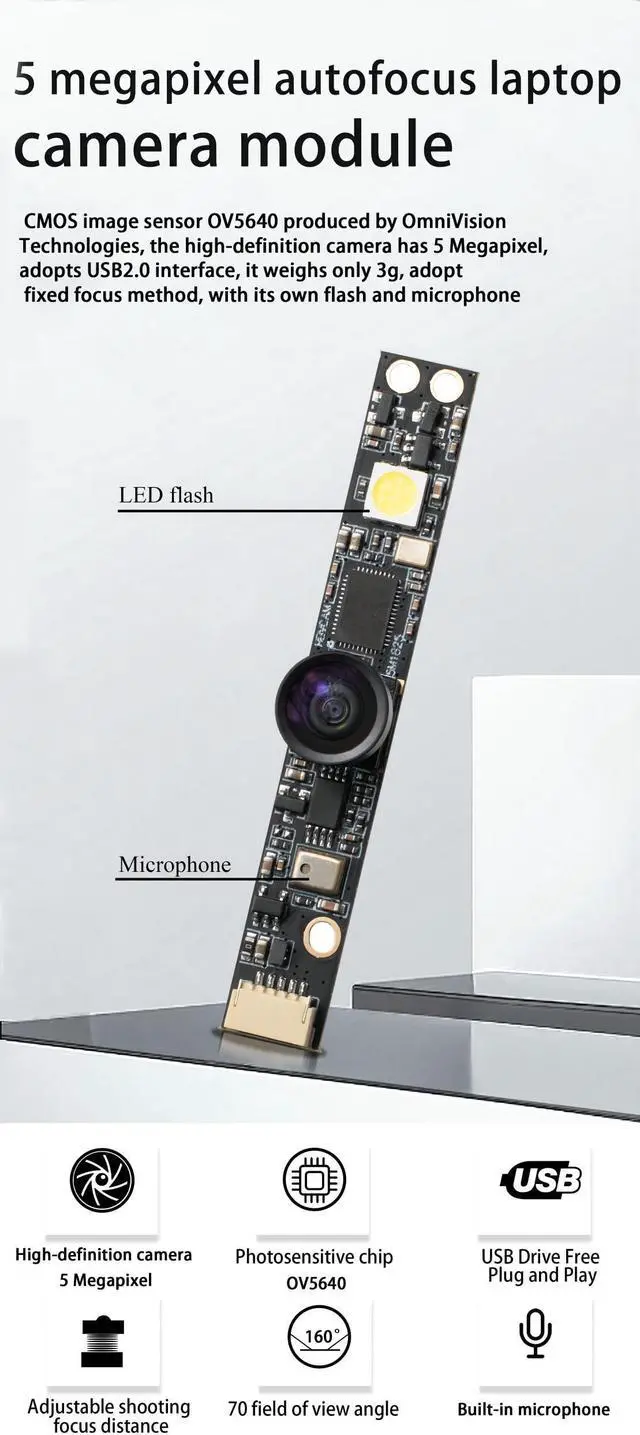

This mini usb camera module adopts the CMOS image sensor OV5640 produced by OmniVision Technologies.
The HD camera has 5 Megapixel, onboard USB 2.0 interface.
It weighs only 3g, adopting fixed focus method, with its own flash and microphone,
supporting Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0 /Jetson Nano operating system.

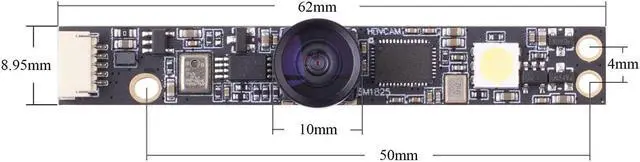

Size: 62mm (Length) *9mm (Width) * 10.7 mm (High) +- 0.3 mm
Temperature (Operation): -30~70
Temperature (Stable Image): 0~50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30cm-infinity
Resolution: 600LW/PH (Center)
Interface: USB 2.0
Power Supply: USB bus power
Supply Voltage: DC 5V+-5%
Maximum Power Consumption: 840mW
Operating System Request: Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0 /Jetson Nano
Sensor: OV5640(1/4")
Sensor Package: CSP, Bare Die
Maximum resolution: 2592*1944
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.4 um * 1.4 um
Maximum Image Transfer Rate:
MJPEG 1280x720 30FPS /YUY2 1280x720 12FPS
MJPEG 1280x960 15FPS /YUY2 1280x960 5FPS
MJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPS
MJPEG 1920x1080 30FPS /YUY2 1920x1080 6FPS
MJPEG 2048x1536 15FPS /YUY2 2048x1536 2FPS
MJPEG 2592x1944 15FPS /YUY2 2592x1944 2FPS
S/N Ratio: 36db
Max Dynamic Range: 68db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: Support
Lens Construction: 2G2P
F/No: 2.0
EFL: 1.66 mm
FOV: 160deg
TV Distortion: <8.5%
Relative Illumination (Sensor): 70%
IR Filter: 650+-10nm
Package: Anti-electrostatic tray
Package Contents:
1. OV5640-U5M-160 (fixed focus) x1

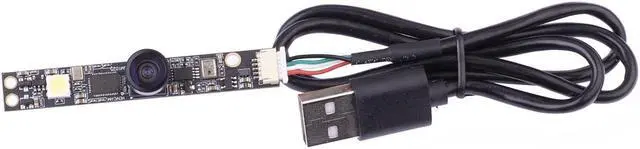

2. USB to HX 1.25 -5P connecting cable x1
This mini usb camera module adopts the CMOS image sensor OV5640 produced by OmniVision Technologies.
The HD camera has 5 Megapixel, onboard USB 2.0 interface.
It weighs only 3g, adopting fixed focus method, with its own flash and microphone,
supporting Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0 /Jetson Nano operating system.

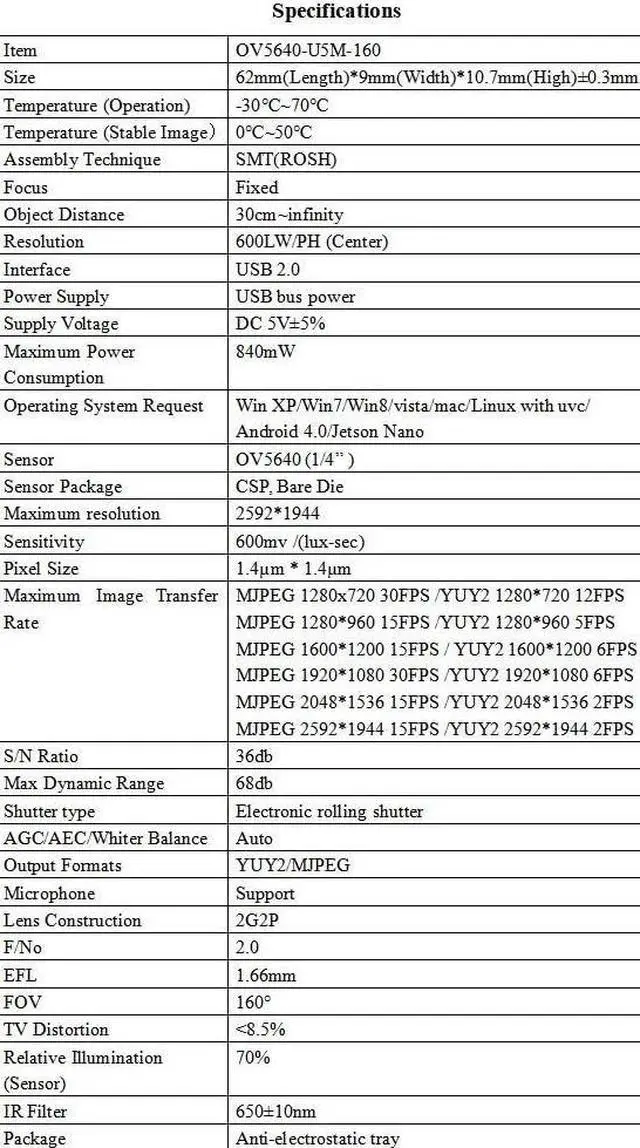

Specifications
:Size: 62mm (Length) *9mm (Width) * 10.7 mm (High) +- 0.3 mm
Temperature (Operation): -30~70
Temperature (Stable Image): 0~50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30cm-infinity
Resolution: 600LW/PH (Center)
Interface: USB 2.0
Power Supply: USB bus power
Supply Voltage: DC 5V+-5%
Maximum Power Consumption: 840mW
Operating System Request: Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0 /Jetson Nano
Sensor: OV5640(1/4")
Sensor Package: CSP, Bare Die
Maximum resolution: 2592*1944
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.4 um * 1.4 um
Maximum Image Transfer Rate:
MJPEG 1280x720 30FPS /YUY2 1280x720 12FPS
MJPEG 1280x960 15FPS /YUY2 1280x960 5FPS
MJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPS
MJPEG 1920x1080 30FPS /YUY2 1920x1080 6FPS
MJPEG 2048x1536 15FPS /YUY2 2048x1536 2FPS
MJPEG 2592x1944 15FPS /YUY2 2592x1944 2FPS
S/N Ratio: 36db
Max Dynamic Range: 68db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: Support
Lens Construction: 2G2P
F/No: 2.0
EFL: 1.66 mm
FOV: 160deg
TV Distortion: <8.5%
Relative Illumination (Sensor): 70%
IR Filter: 650+-10nm
Package: Anti-electrostatic tray
Package Contents:
1. OV5640-U5M-160 (fixed focus) x1
2. USB to HX 1.25 -5P connecting cable x1
