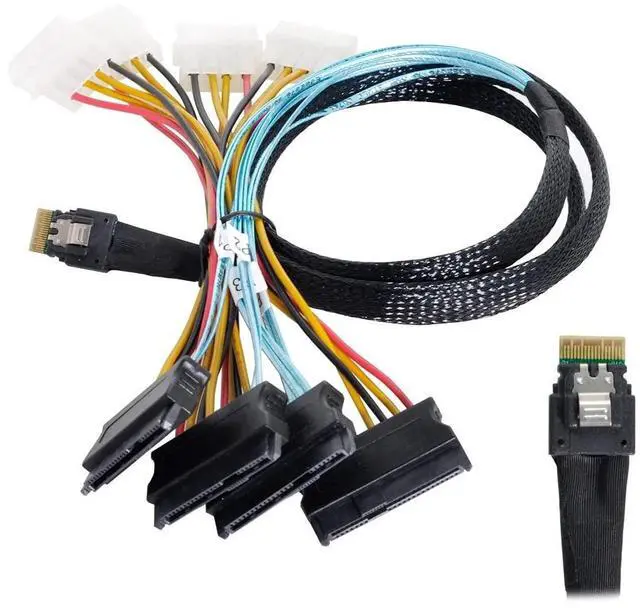

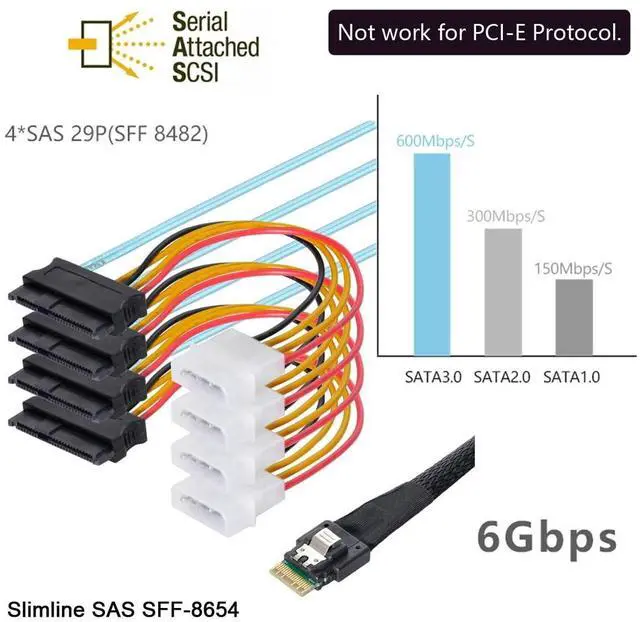

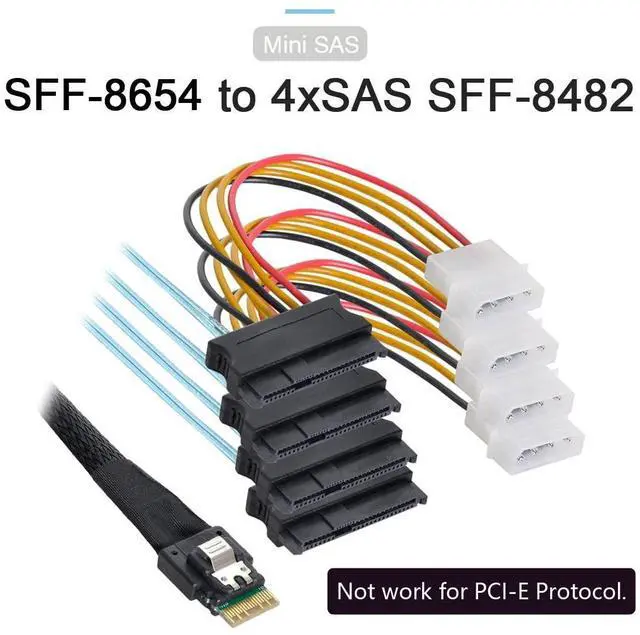

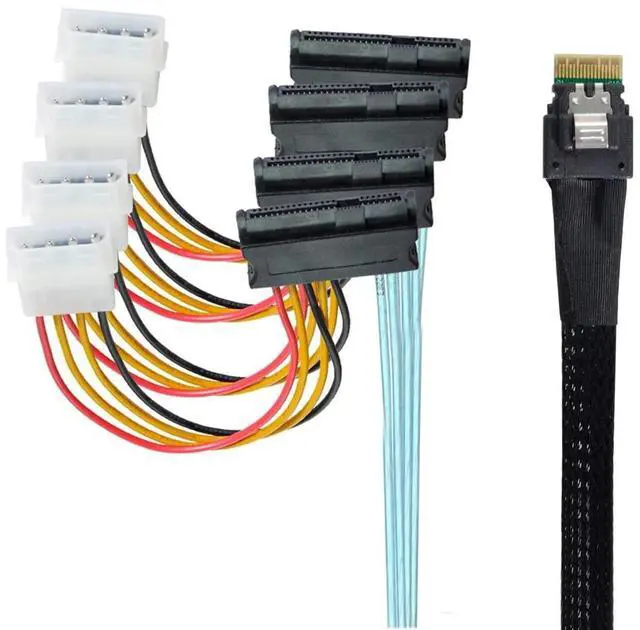

CY Slimline Cable SAS 4.0 SFF-8654 4i 38pin Host to 4 SAS 29pin SFF-8482 Target Hard Disk Fanout Raid Cable

Slimline SAS 4.0 SFF-8654 4i 38pin Host to 4 SAS 29pin SFF-8482 Target Hard Disk Fanout Raid CableThis SAS cable can be used to connect internal devices, e. g. a hard disk with SAS 29pin connector to a controller with Slim SAS SFF-8654 4i connector. Ultraport SlimSAS 4i 38Pos Cable AssemblySlim SAS 4i Straight to
SAS 29pinLength: 100cmConnector
1: Slim
SAS 4i 38pinConnector 2: SATS 29pinApplications for Servers, Data Storage, Workstation. Meet SAS 3.0 / 4.0 specificationThe SFF-8482 is a connector design for interfacing a connection for SAS drives, both SAS Hard drives and SAS SSD drives. The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals. The SFF-8482 supports 2 SAS ports (lanes) to/from the drive.

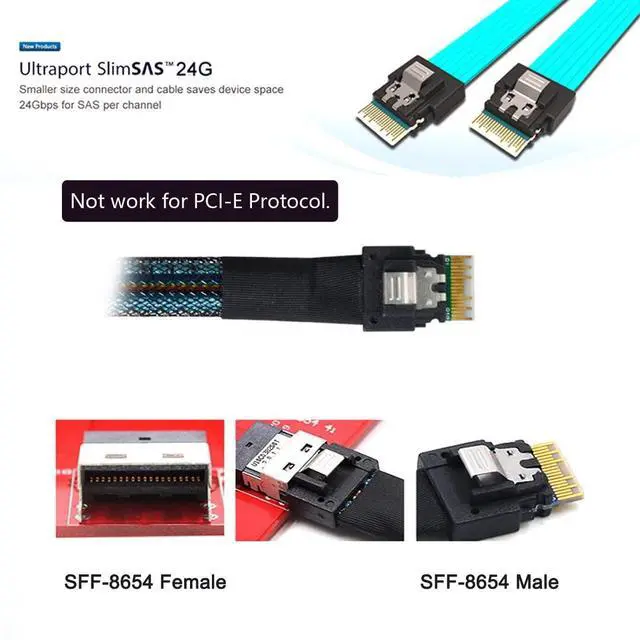

Features and Benefits: 1. Smaller size connector and cable saves device space2. Provide four channels signal transmission as per industry standard3.
Data speed: 24Gbps for SAS per channel4. Meet SAS 3.0 / 4.0, Ultraport SlimSAS SFF-8654 specification
