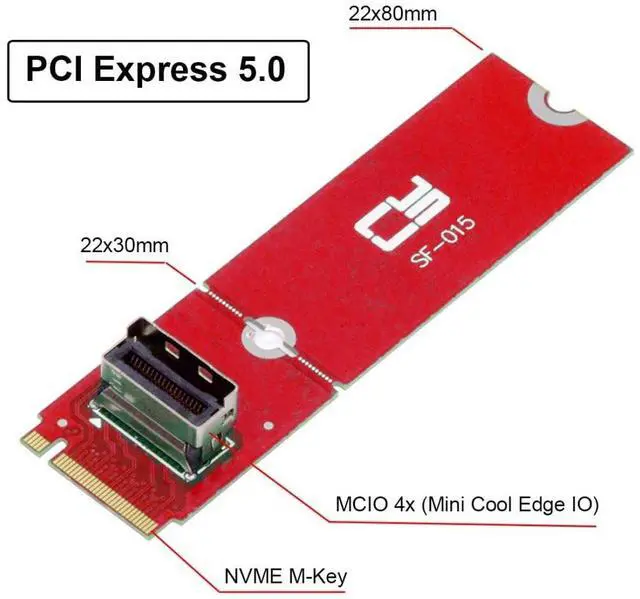

Chenyang M.2 NVME NGFF M-Key to PCI-E 5.0 MCIO 4X 38Pin SFF-TA-1016 Convertor Adapter for 2230 2280 PCIe NVME SSD
- The card transmits PCI Express signals using the NVMe protocol.

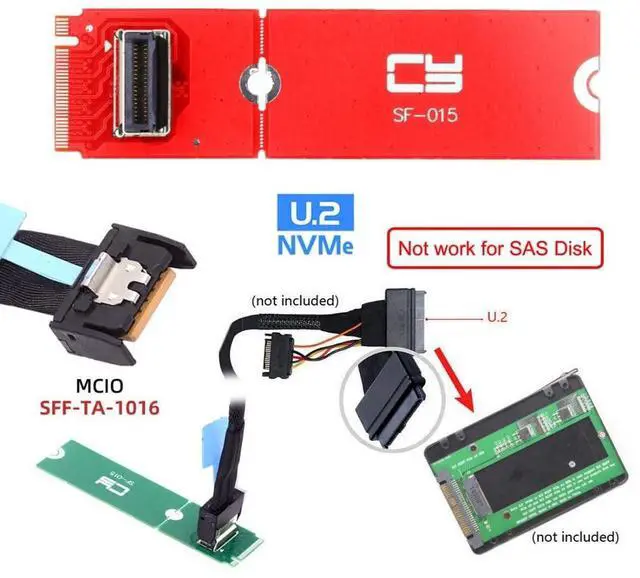

- This convertor expands the system by one MCIO interface. It can be connected e.g. one SSD by using an optional cable.
- The solution can support cable to board and card to board applications in system, which include chip to chip, chiptomodule, chip to board and card edge option.

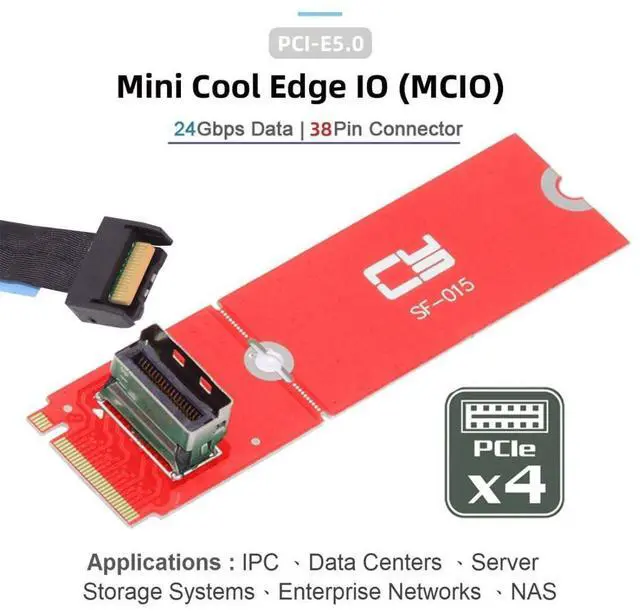

- High-performance cable for networking and server equipment: The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment.
- Industry standards: Support for SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The card transmits PCI Express signals using the NVMe protocol. This convertor expands the system by one MCIO interface. It can be connected e. g. one SSD by using an optional cable. The solution can support cable to board and card to board applications in system, which include chip to chip, chiptomodule, chip to board and card edge option. High-performance cable for networking and server equipment: The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment.
Industry standards: Support for SAS 3.0 / 4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4.
Connectors Specification: 1 x MCIO female. 1 x 67 pin M. 2 Key M male. Data transfer rate up to 64 Gbps. Bootable, ex UEFI version 2.3. 1. Supports NVM Express (NVMe) 1.2.
System requirements: Linux Kernel 4.3 or above. Windows 8.1 / 8.1 -64/10/10-64. A free M. 2 interface with key M.
Industry standards: Support for SAS 3.0 / 4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4.
Connectors Specification: 1 x MCIO female. 1 x 67 pin M. 2 Key M male. Data transfer rate up to 64 Gbps. Bootable, ex UEFI version 2.3. 1. Supports NVM Express (NVMe) 1.2.
System requirements: Linux Kernel 4.3 or above. Windows 8.1 / 8.1 -64/10/10-64. A free M. 2 interface with key M.
