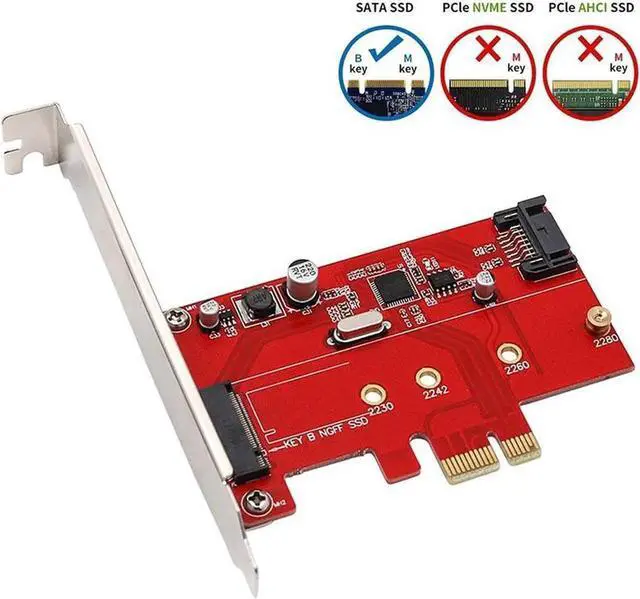

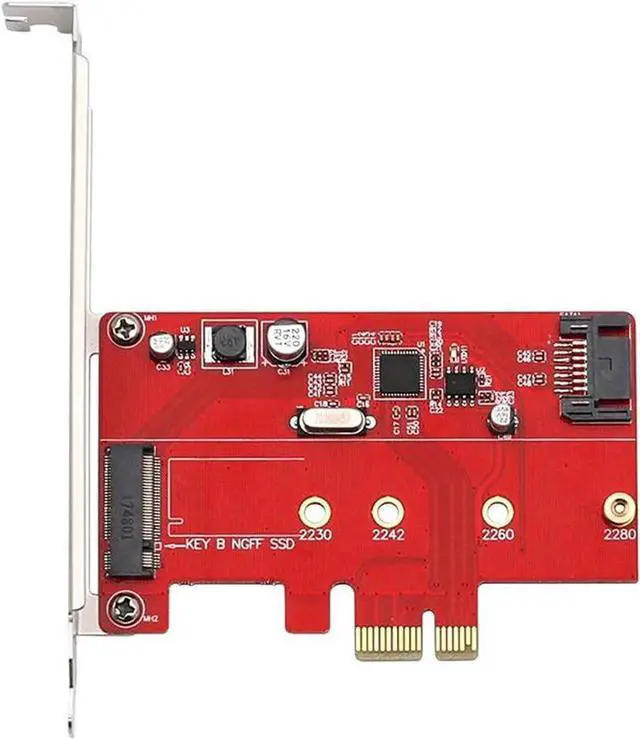

JAENFONG PCIe X1 to M.2(NGFF) + SATA 6G (HDD/SSD) with Standard Profile Bracket,ASM1061 Chipset PCI-Express to B Key M.2 SATA SSD 2280 2260 2242 2230 w/ SATA III Port

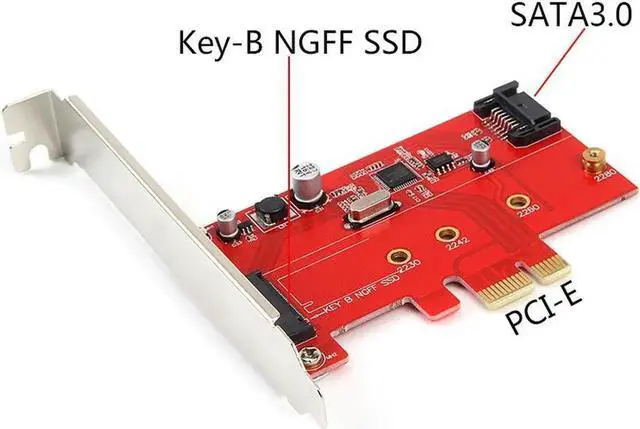

- PCIe X1 to M.2 NGFF + SATA III Port
- Simultaneously Connect M.2 SSD and SATA HDD or CD Drive
- Support B key & B+M Key M.2 SATA SSD
- Does not support NVMe M.2 SSD
- ASM1061 Chipset
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
M. 2 Specification Revision 0.9
Serial ATA Specification Revision 3.2
Supports M. 2 B Key and B+ M key Card Type
Support M. 2 card size:
22*30
22*42
22*60
22*80
Built with ASM1061 Chipset
Simultaneously Connect M. 2 SSD and SATA HDD or CD Drive, Maximum 6Gbps
Hot Swap
Compatible with SATA I, II, III
NCQ Supported
Specification
PCIe - PCIe-X1, support PCIE X2, X4, X8, X16
Output interface - M. 2 SATA SSD + SATA III
OS - Windows10/8/7(32/64? )/ Vista(32/64? )/ XP/2003/2008/linux
Note:
M. 2 Port supports M. 2 (NGAFF) SATA SSD only, DOES NOT support NVMe M. 2 SSD
The efficiency mainly depends on M. 2 (NGAFF) SSD master IC and the size of the capacity
