JAENFONG Motherboard Mini PCI Express to Dual USB 3.0 20-pin Expansion Card Adapter,Mini PCIe PCI-e to 2 ports USB w/ Molex 4-pin Power

Features

This product is an ideal choice for any Mini PCI-Express expansible embedded or micro system needing larger volume and higher speed data transfer connectivity with USB devices.

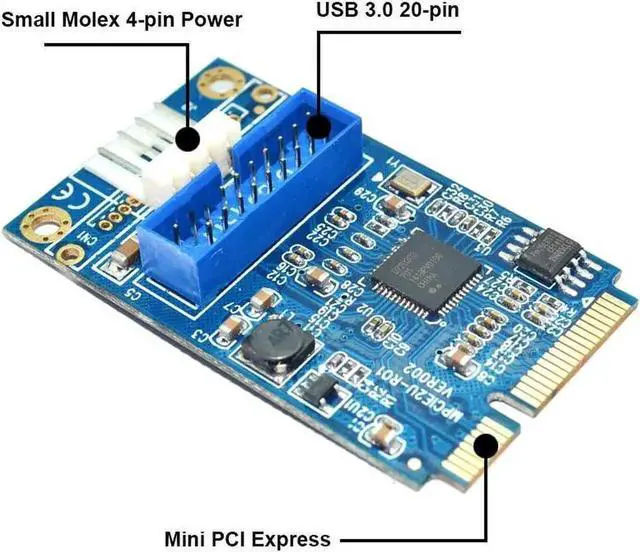

Convert motherboard Mini PCIe Slot to USB 20pin motherboard header for 2 ports USB 3.0 expansion

USB data transfer speed up to 5Gbps, backwards compatible with USB 2.0, USB 1.1, USB 1.0

The card is powered by small molex 4pin (SP4 connector) from PSU

Compliance with PCI-Express Specification Revision 2.0

Compliance with xHCI specification version 1.0

USB support hot swap function

Support Windows XP / 2003 / Vista / win7 / win8 / 2003 / linux, can provide LINUX drivers.

Note:

Because Mini PCI-E without a 5V power supply, not directly to the USB-powered, it can be inserted using the small molex 4pin power from your PSU

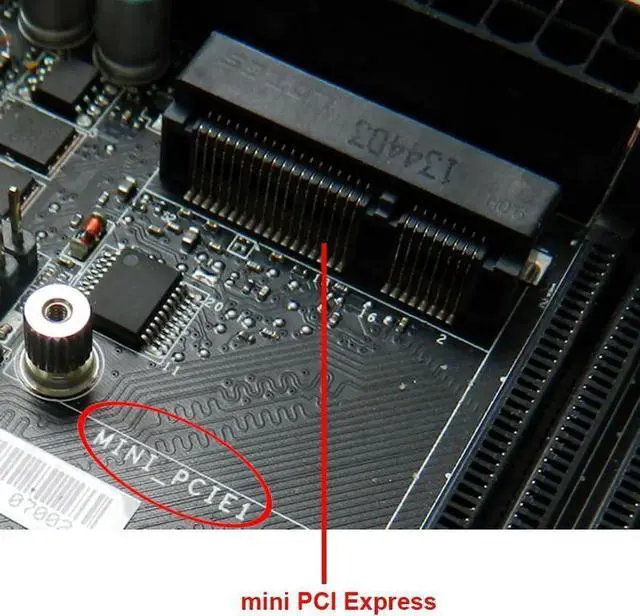

This expansion card can only be plugged into the MINI PCI-E interface, can not be used MSATA interface. Please make sure when buying interface, or can not work.

In same case, the USB motherboard header is called as USB 19Pin too, so USB 3.0 20pin or USB 3.0 19Pin is the same header

SPECIFICATION

Type: Mini PCIe to USB 3.0 20Pin Adapter

Input: Mini PCIe Slot

Output: USB 3.0 20pin Motherboard Header

Power: Small Molex 4pin (SP4)

Data Transfer Speed: 5Gbps

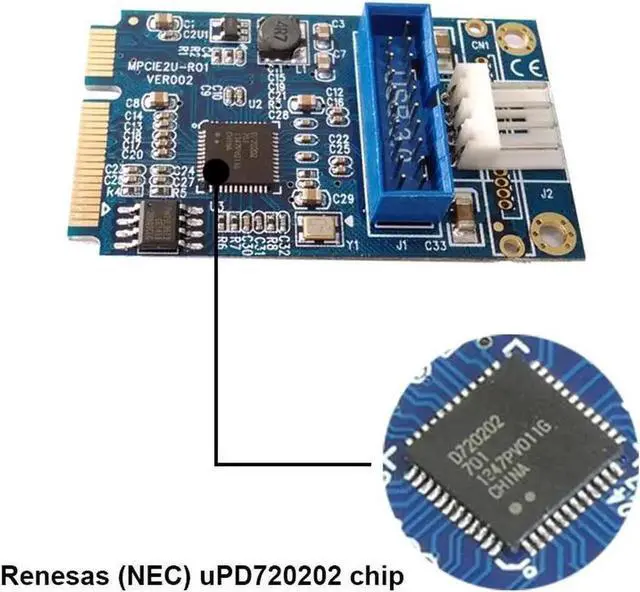

Chipset: NEC UPD720202

OS Request: Compatible with 64-bit and 32-bit Windows 10 / 8.1 / 8/7 / XP

Installation: Motherboard Mini PCIe Slot
